H5CL
H5CL
154

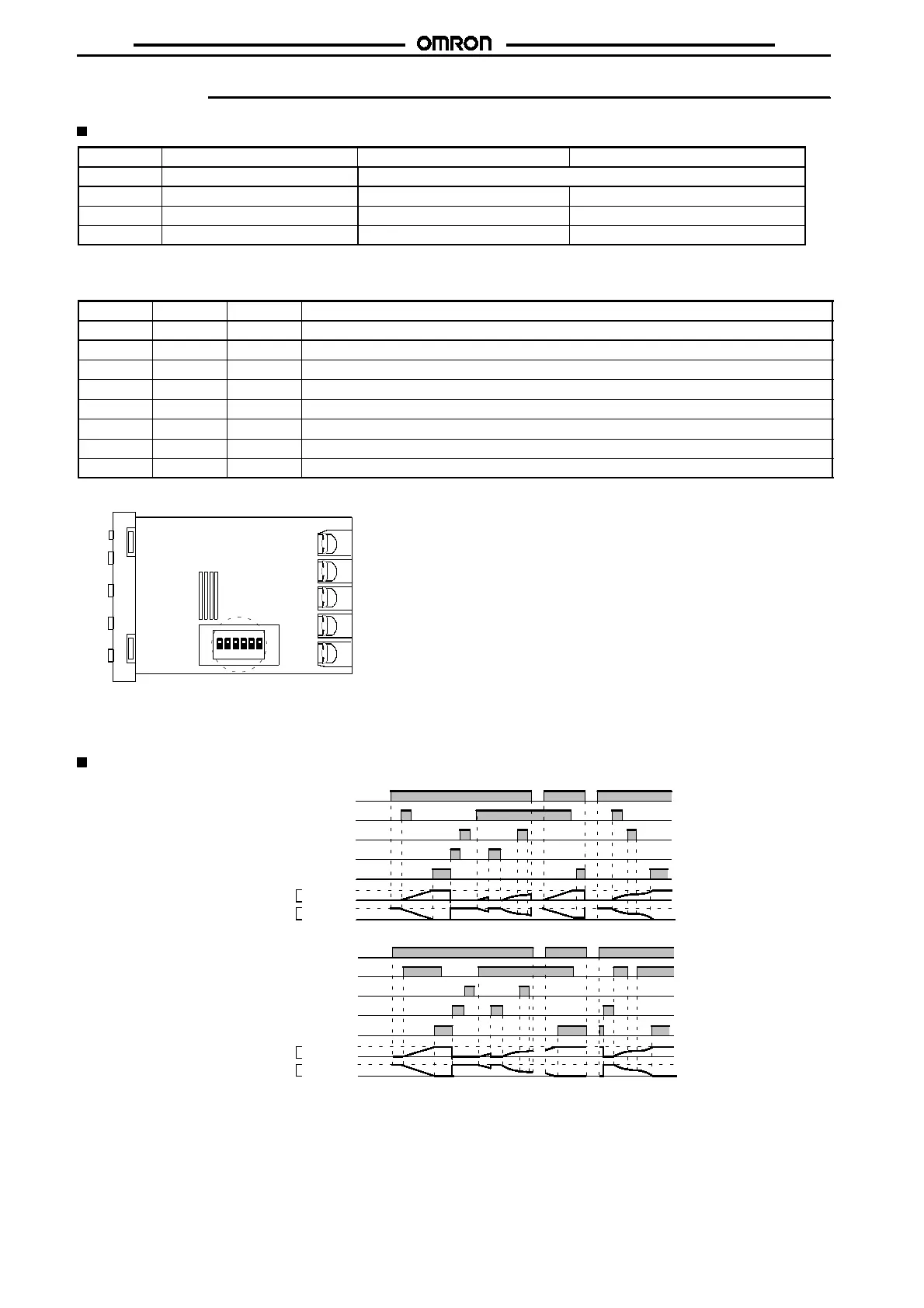

Operation
DIP Switch Setting
Pin no. Item OFF ON
1, 2, 3 Time ranges See table below.
4 Display modes Up (Increment) Down (Decrement)
5 Min. pulse width of inputs 20 ms 1ms
6 Operating modes A (signal ON-delay) F (accumulative operation)
Note: Set the DIP switch before installation and operation of the Unit. DIP switch setting changes are not effective while the power is on.
Time Ranges
1 2 3 Time range
ON ON ON 0.001 to 9.999 s
OFF OFF OFF 0.01 to 99.99 s
ON OFF OFF 0.1 to 999.9 s
OFF ON OFF 1 to 9999 s
ON ON OFF 0min01sto99min59s
OFF OFF ON 0.1 to 999.9 min
ON OFF ON 0h01minto99h59min
OFF ON ON 0.1 to 999.9 h
Note: Switches 1 to 6 are all set to OFF before shipping.
(The same switch settings apply to AC and DC models)
ON
134562
Top of Timer
Timer Control with Power Start
When using the H5CL with power start, short-circuit the start input and input 0-V terminals.
Operating Modes
A Mode
Signal ON-delay
F Mode
Accumulative Operation
Power
Start
Gate
Reset
Control output
Set value
0
0
Set value
Display
mode
Power
Start
Gate
Reset
Control output
Set value
0
0
Set value
Display
mode
UP
DOWN
UP
DOWN
