H3CR-A
H3CR-A
21

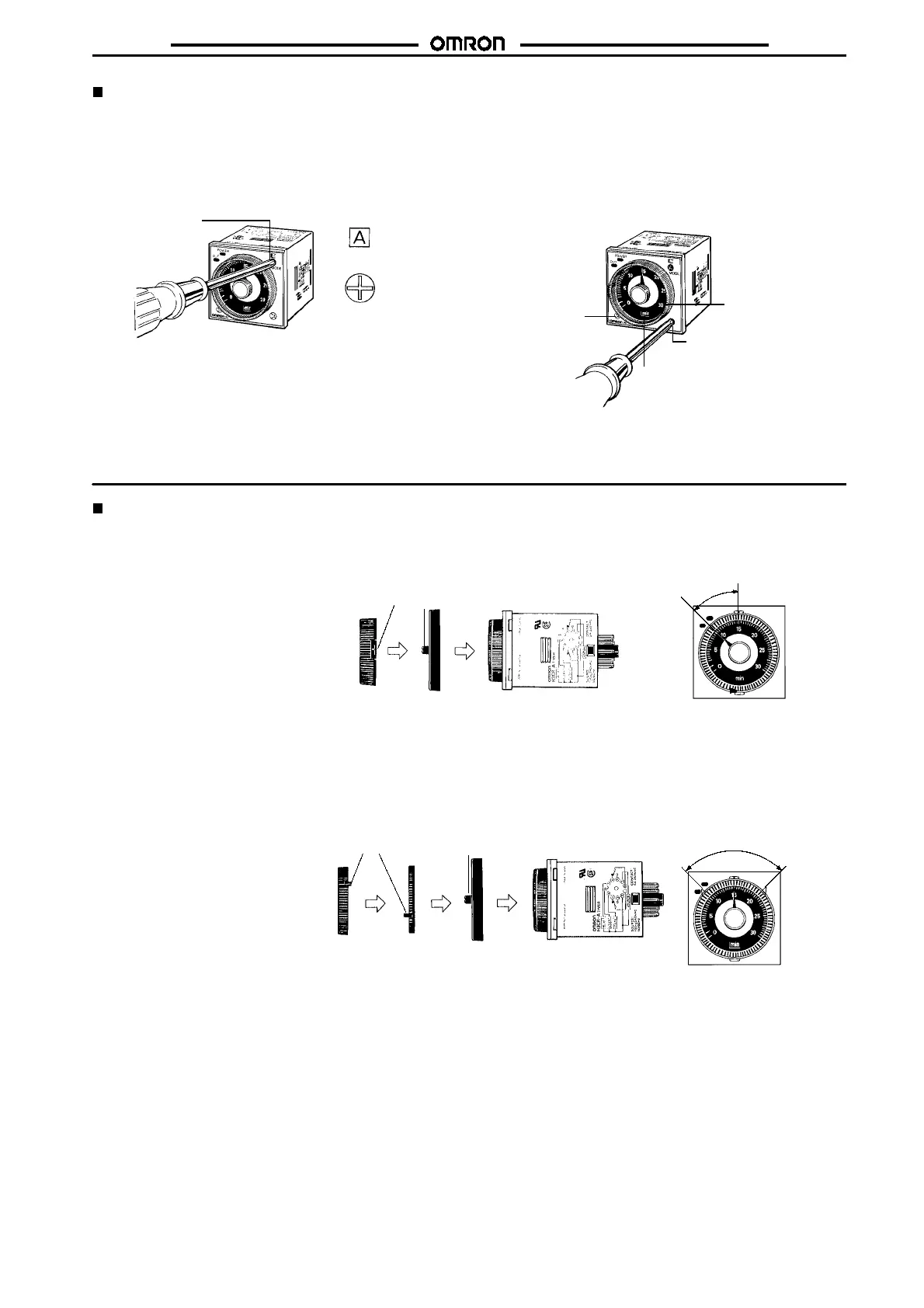

Basic Setting
Setting of Selector
The selectors can be turned clockwise and counterclockwise to se-
lect the desired time unit, time range, or operating mode.
Each selector has a snap mechanism that secures theselector at a
given position. Set the selector at a position at which it is secured.
Do not set it midway between two securing positions or a malfunc-
tion could result from improper setting.
Groove for
screwdriver
Operating mode
display window
Operating mode
selector
Selection of Operating Mode
Turn the operating mode selector with a screwdriver until the de-
sired operating mode (A, B, B2, C, D, or E) appears in the display
window located above the selector.
Selection of Time Unit and Time Range
The desired time unit (sec, min, hrs, or 10h) is displayed in the win-
dow below the time setting knob by turning the time unit selector lo-
catedat the lower right cornerofthefront panel.A timerange(1.2,3,
12, or 30) is selected with the time range selector at the lower left
cornerof thefrontpanel,andtheselectedtimerangeappears (inthe
window at the lower right part) within the plastic frame of the time
setting knob.
Operating mode
display window
Time unit selector
Time unit display window
Time range
selector
Setting of Time
Use the time setting knob to set the desired time.
Using the Setting Ring
Setting a Specific Time
Mount the Panel Cover on the Timer, set the desired time with the
time setting knob, and place Time Setting Ring A onto the time set-
ting knob so that the time setting notch of Time Setting Ring A is in
the center of the reset lock position of the Panel Cover.
Time setting
notch
Reset lock position
Time setting ring A Panel cover
Example: To set the time to 10 s.
Time setting notch
Setting position
Limiting the Setting Range
Example: To set a range of 10 and 20 s.
Mount the Panel Cover on the Timer, set the time setting knob to
10 s (the lower limit of the setting range), and place Time Setting
RingContothe timesetting knob sothat thestopper of TimeSetting
RingCisontherightedgeofthereset lockpositionofthePanel cov-
er. Next, set the time setting knob to 20 s (the upper limit of the set-
ting range), place TimeSetting Ring B onto the time setting knob so
thatthe stopperofTimeSettingRingBis onthe leftedgeofthereset
lock position of the Panel Cover.
Stopper
Reset lock position
Time setting
ring B
Time setting
ring C
Panel cover
Range
