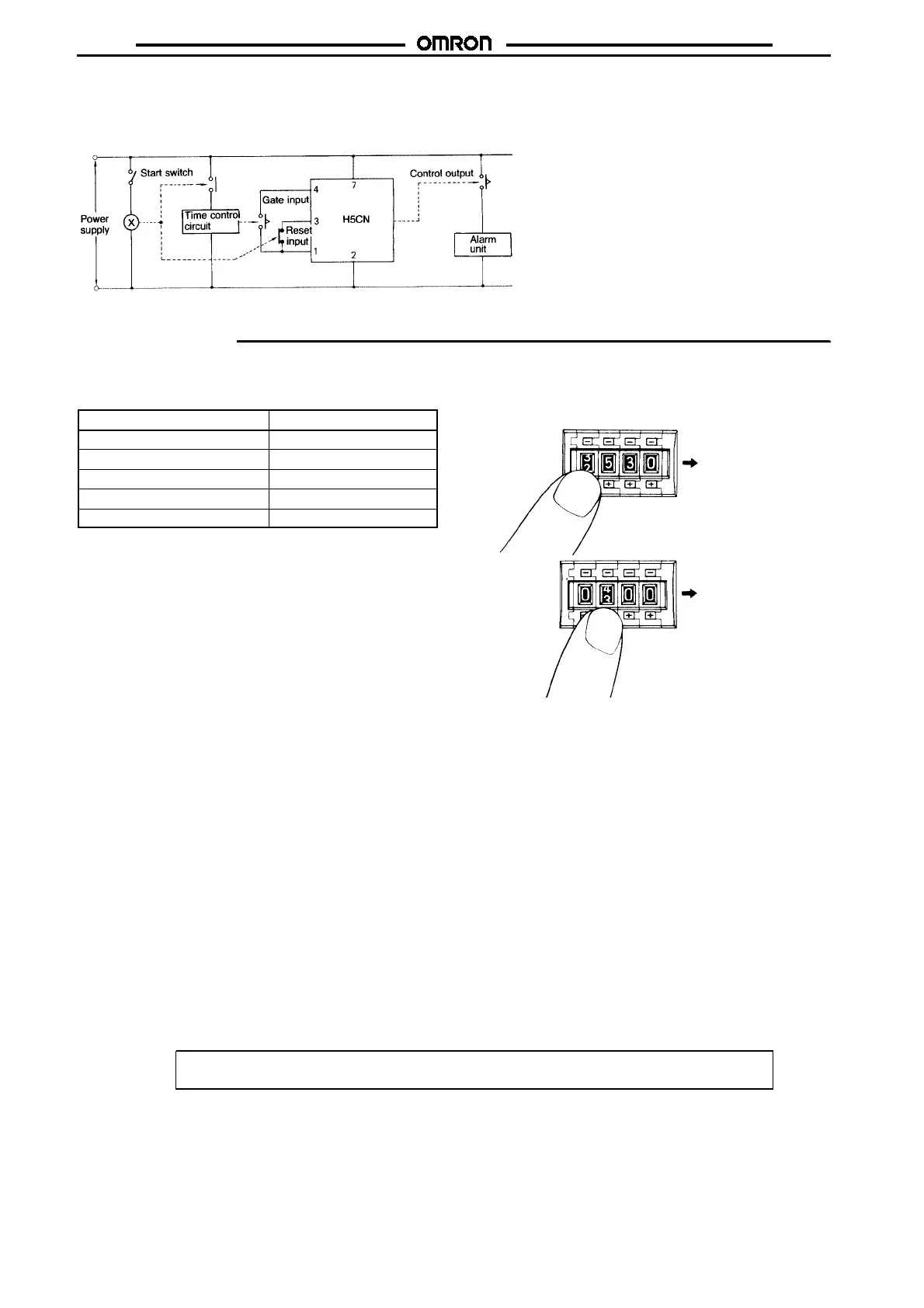

Alarm Output Circuit
Theillustrationshowsanexampleofalarmoutputcircuit. In this cir-
cuit, H5CNoutputs analarm whenthetimecontrol bythe othertimer
is not completed within the set time of the former.
Precautions
Setting of Operating Time
Time Setting Range
Setting range
Rated time
0.001 to 9.999 s
H5CN-
j
Z
j
0.001 to 99.99 s
H5CN-
j
A
j
0.1 to 999.9 s
H5CN-
j
B
j
1sto99min59s
H5CN-
j
C
j
1 min to 99 hrs 59 min
H5CN-
j
D
j
1. Since the H5CN Timer is capable of reading the input data at
any time during normal operation, the set time can be
changed during powerapplication. This feature sets back the
output from the timer by temporarily setting the longer time or
quickens the outputby settingtheshortertime.Duringnormal
operation, the set time may be accidentally changed by
touchingathumbwheelswitch.Topreventthispossibility, use
the optional protective cover Y92A-48B.
2. When thesettime is allzeroes (e.g.,000.0sor00hrs 00min),
there will be a momentary control output upon power
application which can be used to check normal output. When
changing the set time during normal operation, pay special
attention not to alter the set value to this state.
3. When changingthesettimewhilepower is beingsupplied,an
inadequate push of the thumbwheel switches will display two
numbers in one digital display window, causing the operating
time to drift widely. Therefore, press the thumb-wheel
switches surely. Take particular care in the case when the
otherthreedigits areallzero,sincethe improper setting ofthe
fourth switch to create four zeroes will cause a momentary
output.
Undesirable Setting
(Possible operating time)
5min30s
00 hrs 00 min
(Momentary
output)
4. Takeparticular carewith theH5CN-
j
Z
jj
,which iscapable
ofsettingin1/1000th ofasecond,since its digital displaymay
display an error of plus or minus 1/1000 s from the set value.
Battery Connection
Evenif theunitisnotprovidedwithabackupbattery,the countvalue
will be retained for a minimum of 10 min. If a backup battery is con-
nected, thecountvalue willberetained forapprox. 5 years. Replace
the backup battery as quickly as possible within 10 min.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. L52-E1-9
To Next Page
