STP
STP
228

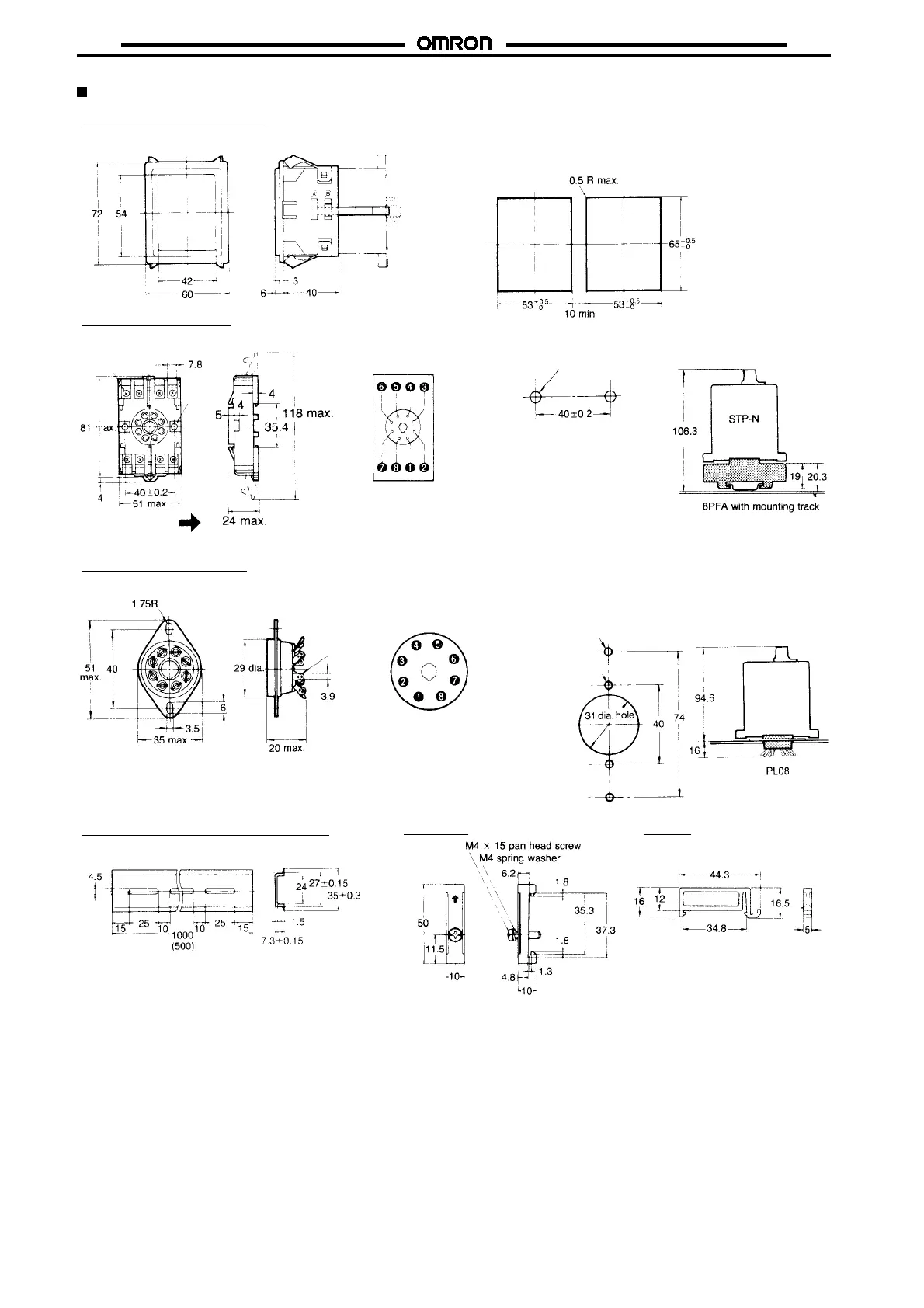

Accessories (Order Separately)
Track Mounted Socket
8PFA
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
Adapter for Flush Mounting
Y92F-50
Panel Cutouts
Recommended panel thickness: 1 to 3.2 mm
Back Connecting Socket
PL08
Mounting HolesTerminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
Mounting Track (Meets DIN EN50022)
PFP-100N/PFP-50N
(see note)
Note: This dimension applied to PFP-50N.
End Plate
PFP-M
Eight, M3.5
'
7sems
Two, 4.5
dia. hoes
Two, M4 or Two, 4.5
dia. holes
Top View
Note: 8PFA can be used as a
front connecting socket.
Two, 3.5 dia. or M3
timer mounting holes
Two, 3.5 dia. or M3
socket mounting holes
Two, 2 dia. holes
Spacer
PFP-S
To Next Page
