H5S
H5S
251
Precautions
Operation

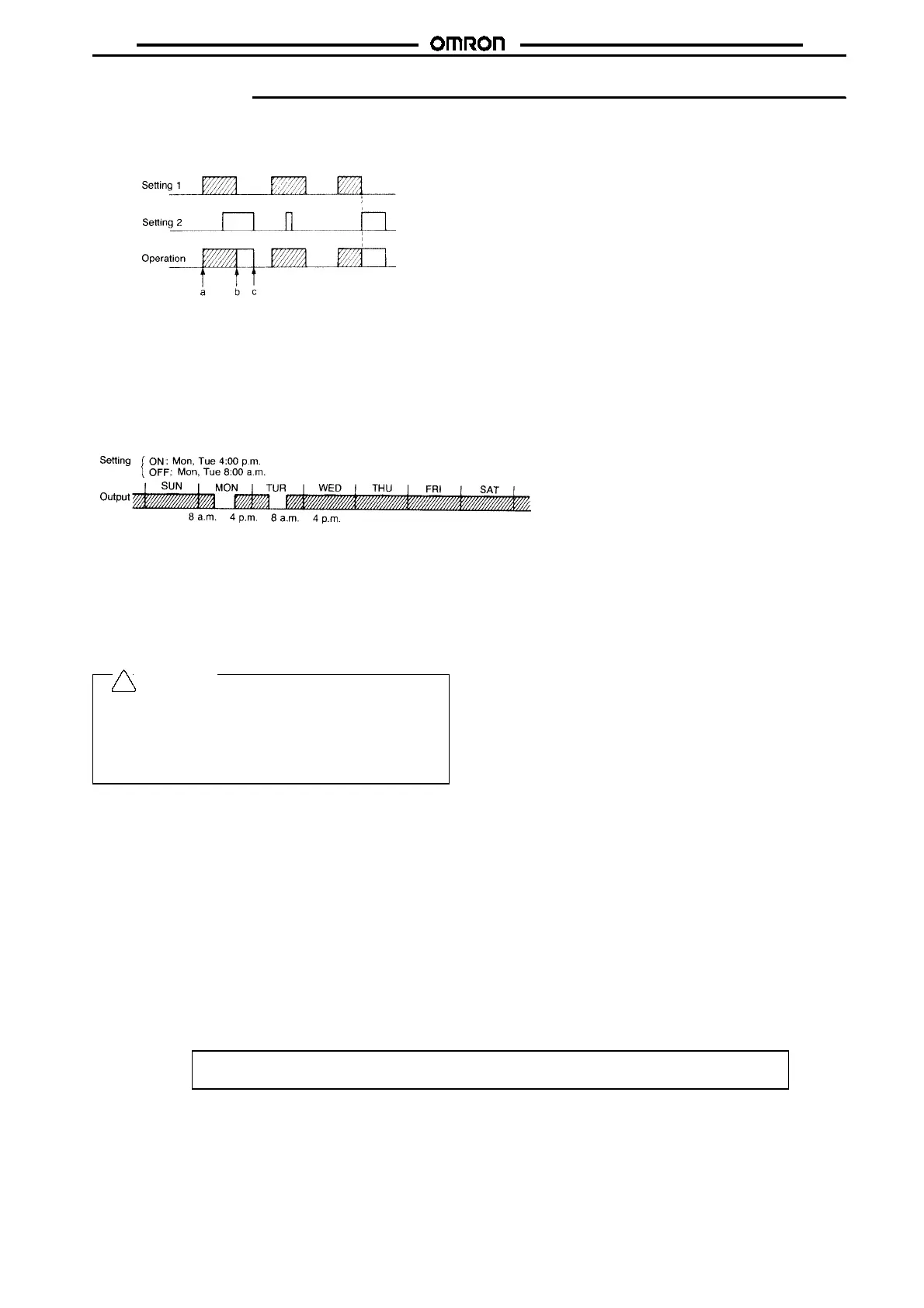

The earlier ON time setting takes precedence.
If both settings 1 and 2 are for an ON/OFF or pulse operation, the
output is continuously produced without being interrupted. For ex-
ample, if setting 1 is forcyclic operation, and 2 is set for an ON/OFF
operation, the cyclic operation is performed during period of a to b,
and the ON/OFF operation is performed from b to c.
Multiple-day Operation
If morethan one dayis specified andwhen theoutput is turned on, it
is turned off on the day when the first OFF time is set.
If an ON and OFF have been set at the same time of the same day
(such setting is possible), no operation is performed.
If the Mode Switch is set to the P1 (or P2) position, no output is pro-
duced. Therefore, aftersetting has been done, set the Mode Switch
totheRUNpositionand confirmthat theautomatic operationindica-
tor lights.
Thesetdatamay beerasedif theOUTswitch is moved between the
TIMER and PULSE positions after the data has been set.
WARNING
The H5S has a built-in lithium battery. When disposing of old
batteries, or of an entire timer containing lithium battery, be
suretodosoproperly. Lithiumbatteriesmayexplodeifinciner-
ated, causing fire or severe burns. Also, do not touch the input
terminals of any H5S Timer while power is being supplied to
the timer.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. L14-E1-4A
!
