H2E

272

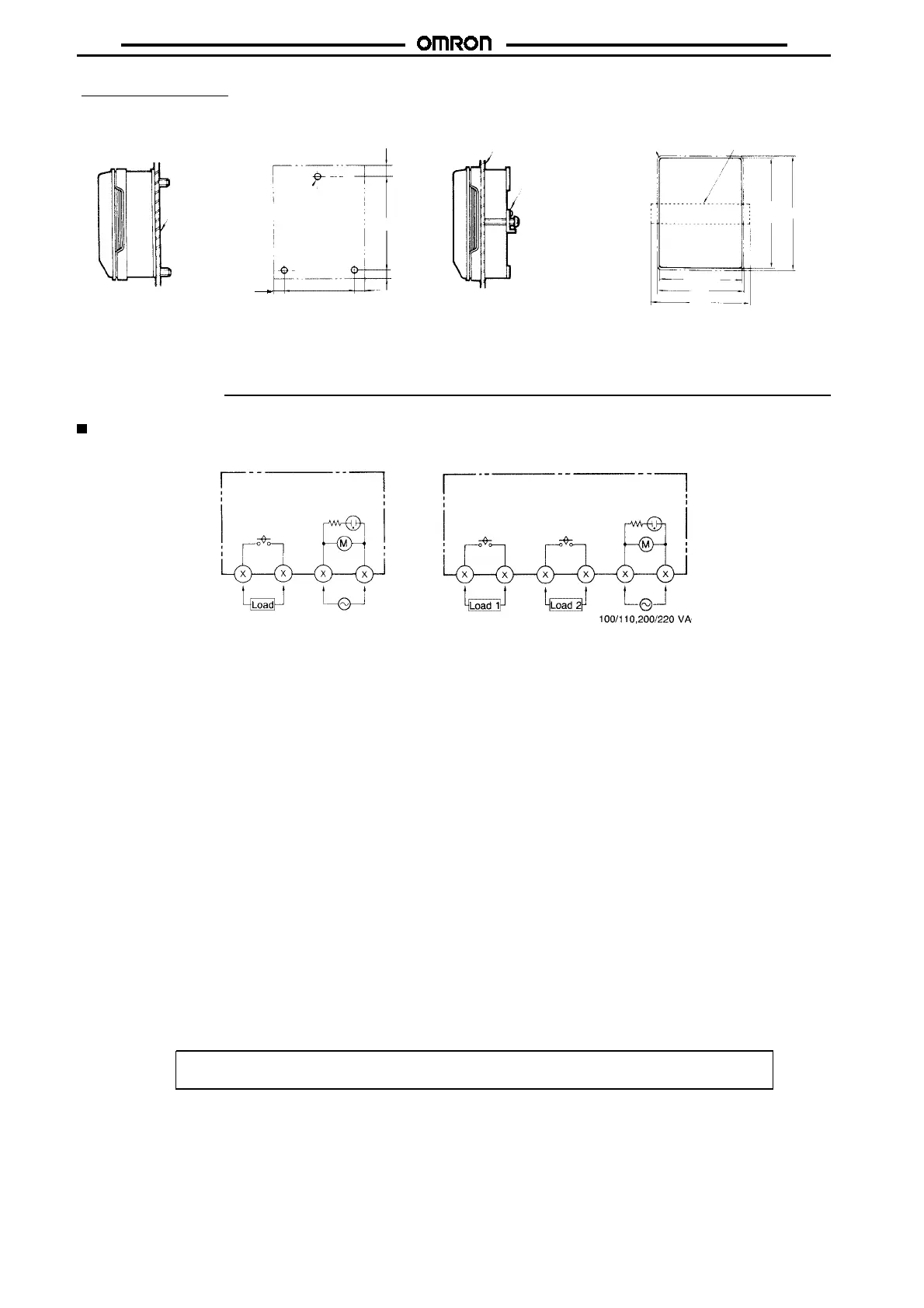

Mounting Dimensions

Surface Mounting

H2E, H2E-2

Mounting Holes

Flush Mounting

H2E-Y, H2E-Y2

Mounting Holes

Three, M4 taps

Panel

Exclusive-use

mounting bracket

(see note)

Panel

Mounting bracket

1R max.

102

0.4

Note: The mounting panel thickness

should be 1 to 3.2 mm.

0.488

0.5

120

117

0.5

106

Installation

Connections

H2E, H2E-Y H2E-2, H2E-Y2

100/110, 200/220 VAC

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. L10-E1-8
