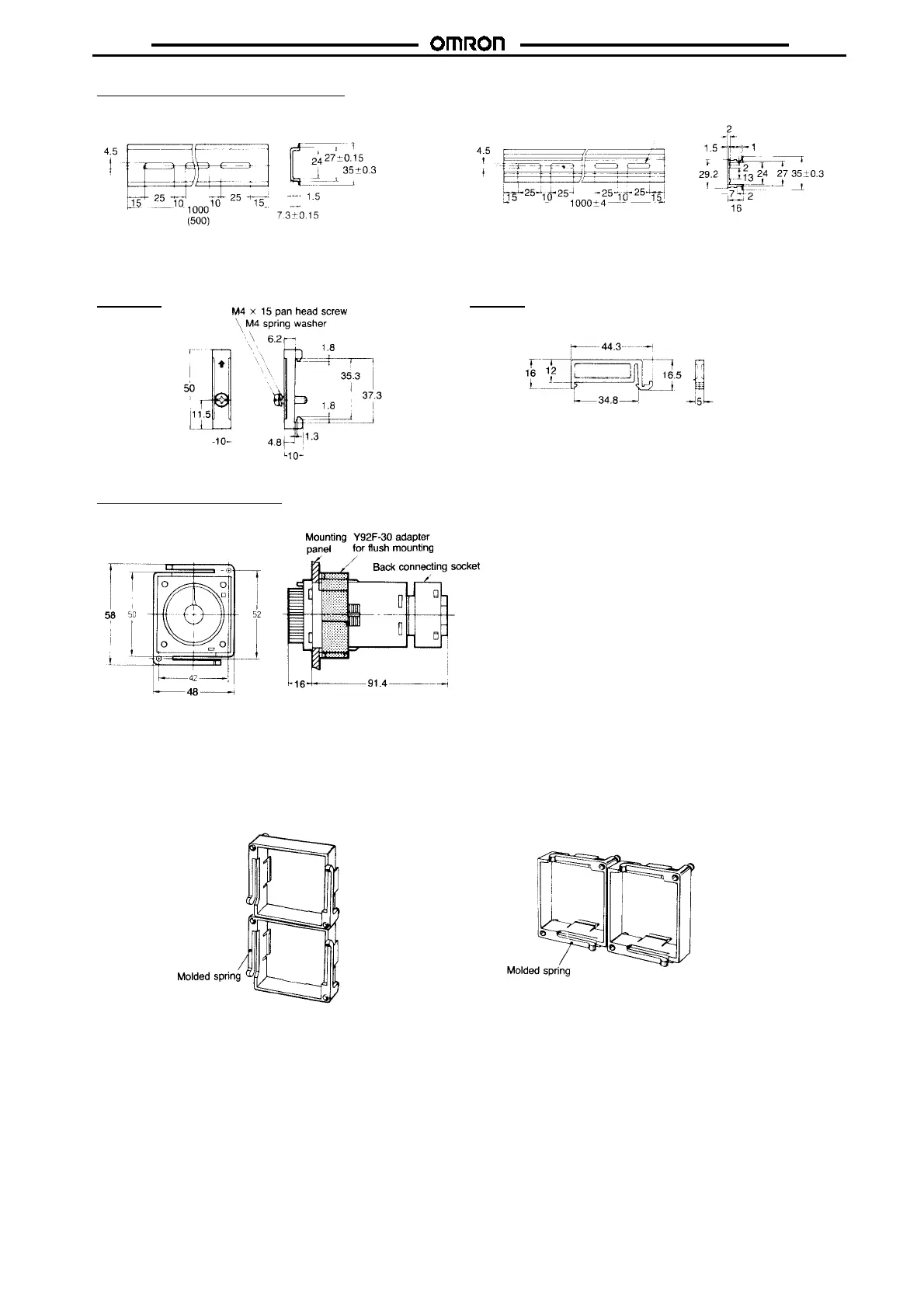

Mounting Track (Meets DIN EN50022)
PFP-100N/PFP-50N
PFP-100N2
Twelve, 25
'
4.5 elliptic holes (see note)
(see note)
Note: This dimension applied to PFP-50N. Note: A total of twelve 25 x 4.5 elliptic holes are provided with 6
holes cut from each rail end at a pitch of 10 mm between
holes.
End Plate
PFP-M
Spacers
PFP-S
Adapter for Flush
Mounting
Y92F-30
Note: Pay attention to the orientation of the adapter when
mounting two ormoretimersinaverticalorhorizontalline.
When mounting two or more timers in a vertical line,
arrange all the adapters so that their molded springs
are positioned on the right and left sides.
When mounting two or more timers in a horizontal
line, arrange all the adapters so that their molded
springs are positioned on the top and bottom sides.
