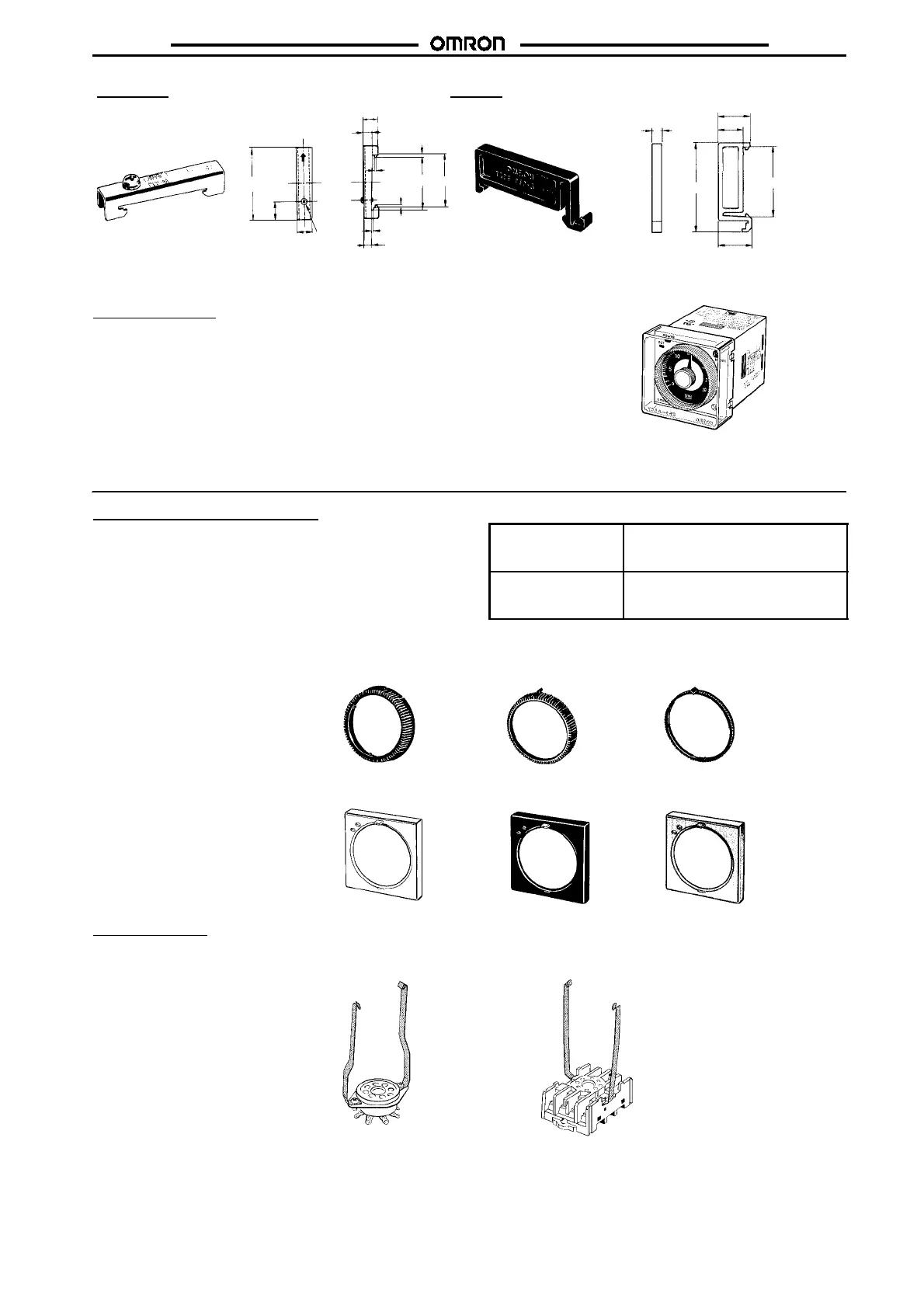

H3CR-A
H3CR-A
29
End Plate
PFP-M
Spacer
PFP-S
50
11.5
M4 x 8
pan head
screw
10
6.2
1.8
1
35.5 35.3
1.8
1.3
4.8
5
16
12
44.3
34.8
16.5
10
Protective Cover
Y92A-48B
The protective cover protects the front panel, particularly the time
setting section, against dust, dirt, and water. It also prevents the set
value from being altered due to accidental contact with the timeset-
ting knob.
Note: 1. The Y92A-48B Protective Cover is made of a hard plas-
tic and therefore it must be removed to change thetimer
set value.
2. The Protective Cover cannot be mounted if the Panel
Cover (sold separately) is used on the Timer.
Y92A-48B
Time Setting Ring/Panel Cover
There are three types of Panel Covers (Y92P-48GL, Y92P-48GB,
and Y92P-48GM), all of which are available in three colors. Use the
most suitable type of Panel Cover with the design of the scaling
plate according to the application.
When setting a given time for the Timer, use of the Y92S-27 or
Y92S-28TimeSettingRingfacilitatesthetimesettingoperationand
minimizes possible setting errors by operators.
The Time Setting Ring and Panel Cover should be used as a pair.
Setting a specific
time
Time Setting Ring A (Y92S-27) and
Panel Cover (Y92P-48GL, -48GB, or
-48GM)
Limiting the setting
range
Time Setting Ring B or C (Y92S-28),
and Panel Cover (Y92P-48GL, -48GB,
or -48GA)
Y92S-27
Time Setting A
Y92S-28
Time Setting B
Y92P-48GL
Light Gray
Y92P-48GB
Black
Y92P-48GM
Medium Gray
Y92S-28
Time Setting C
Hold-down Clip
Y92H-7/-1
For PL08 and PL11 Sockets
Y92H-8/-2
For PF085A Socket
