Omron H5CX User Manual

Multifunction Digital Timer H5CX-A/-L (Timer Function) 19

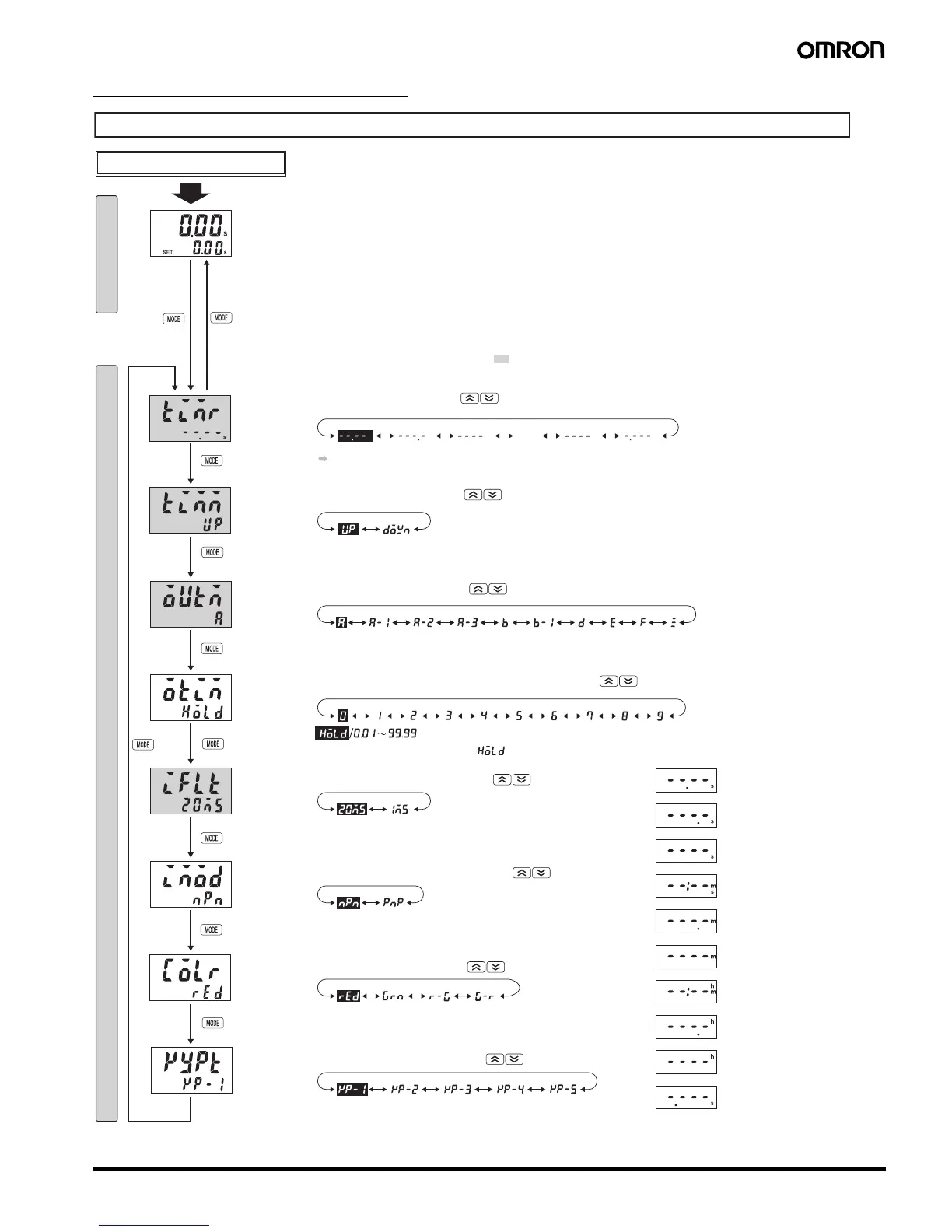

Settings for Advanced Functions
ss hs
(1 ms)(20 ms)
(A-1) (A-2) (A-3) (b-1)(b) (d) (E) (F) (Z)(A)
(KP-2) (KP-3) (KP-4) (KP-5)(KP-1)
......
s
Settings that cannot be performed with the DIP switch are performed with the operation keys.
Display color
(NPN input) (PNP input)
Only displayed for H5CX-A@ and H5CX-A11@ models.
(Red) (Green) Red-green Green-red
Displayed for terminal-block models (H5CX-A@) only.
Power ON
Run mode
See note 1. See note 2.
3 s min. 3 s min.
For details on operations in run mode, refer to page 21.
Note 1. If the mode is switched to the function setting mode during operation,
operation will continue.
2. Changes made to settings in function setting mode are enabled for the
first time when the mode is changed to run mode. Also, when settings
are changed, the timer is reset (time initialized and output turned OFF).
The characters displayed in reverse video are the default settings.
When performing settings with operation keys only, set pin1 of the
DIP switch to OFF (factory setting). If pin 1 of the DIP switch is set
to ON, the setting items indicated in will not be displayed.
For details, refer to Time Range List below.
Time range
Timer mode
(Elapsed
time)
(Remaining
time)
Output mode
Function setting mode
Output time
: Output hold/0.01 to 99.99 s
Display Set Value
Time Range List
Input
signal
NPN/PNP
input
Key protect
level
0.1 s to 999.9 s
1 s to 9999 s
0 min 01 s to 99 min 59 s
0.1 min to 999.9 min
1 min to 9999 min
0 h 01 min to 99 h 59 min
0.1 h to 999.9 h
1 h to 9999 h
0.001 s to 9.999 s
0.01 s to 99.99 s
(default setting)
Set the time range using the keys.
Set the timer mode using the keys.
Set the output mode using the keys.
Set each digit for the output time using the corresponding keys.
(If the output time is set to 0.00, is displayed.)
Displayed for modes A, A-1, A-2, A-3, b, and b-1 only.
Set the input signal width using the keys.
Set the NPN/PNP input mode using the keys.
Set the display color using the keys.
Set the key protect level using the keys.

Omron H5CX Specifications

General

Time Range	0.001 s to 9999 h
Mounting Method	Flush mounting
Output Type	Relay or Transistor
Control Output	Relay or Transistor
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Input Type	NPN or PNP
Power Supply Voltage	24V AC/DC, 100-240V AC
Operating Voltage Range	85% to 110% of rated voltage
Operating Modes	ON-delay, One-shot, Interval
Contact Rating	5 A at 250 VAC
Mounting	Panel
Dimensions	48 x 48 mm
Protection Structure	IP66 (front panel)
