42 2-stage Digital Timer H5CX-B

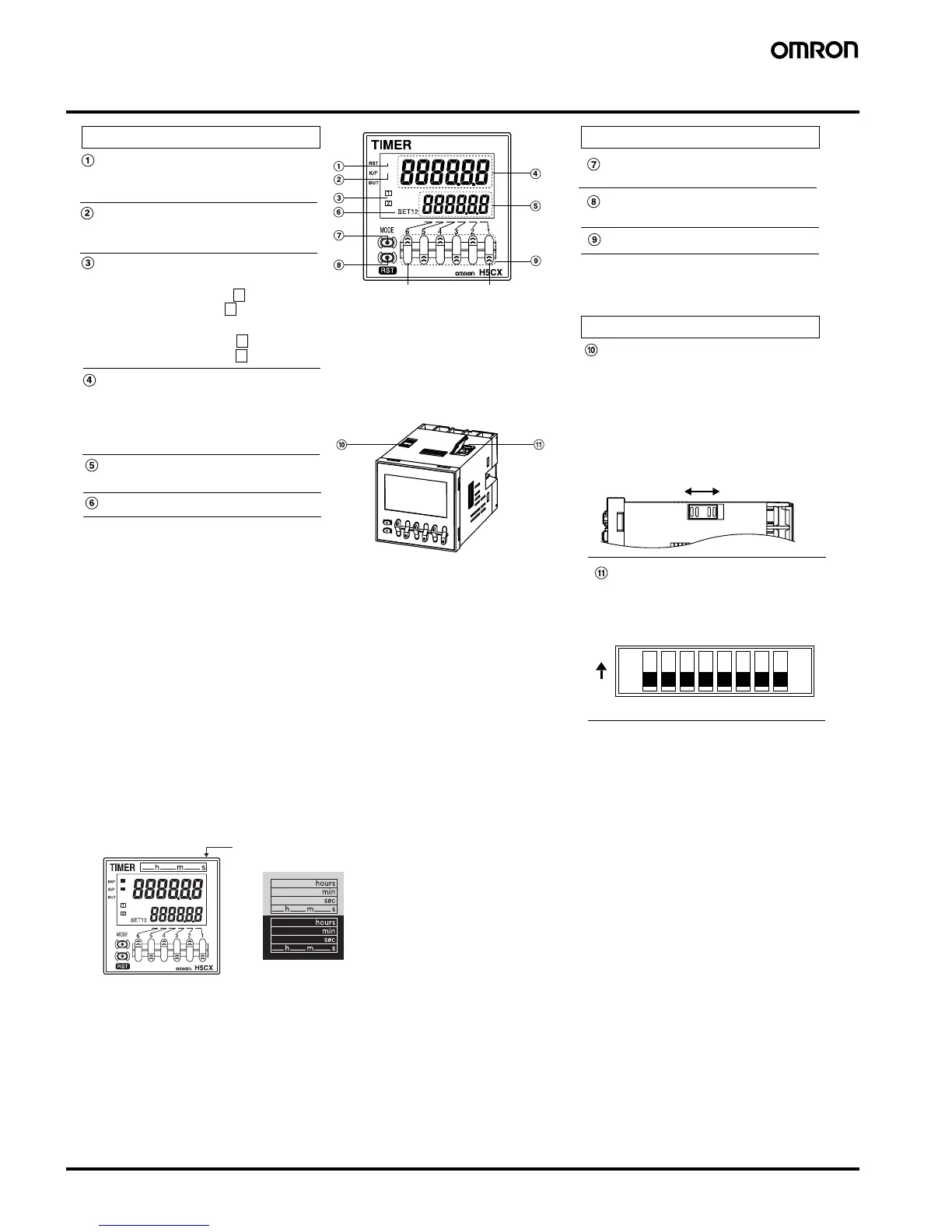

Nomenclature
■ Unit Label
The unit label is included with the Unit. Affix the unit label in the posi-
tion shown in the following diagram to match the time range to be
used.
First digitSixth digit
When the Key-protect Switch is ON, key
operations are prohibited according to the
settings for DIP switch pins 6 to 8, thus
preventing setting errors. The Key-protect
Switch can be turned ON and OFF while
the power is ON. The Key Protection
Indicator is lit orange when the Key-
protect Switch is ON.
(Default setting)
Indicator
Set Value (green)
Character height: 6 mm
Front View
Operation Key
Mode Key
(Changes setting items)
Reset Key
(Resets present value and output)
Up Keys 1 to 6
Key-protect Switch
DIP Switch
(Default setting) OFF ON
Reset Indicator (orange)
Lit when the reset input or Reset Key
is ON.
Key Protection Indicator (orange)
Lit when the Key-protect Switch is
ON.
Control Output Indicator (orange)
Present Value (red)
Character height: 9 mm
If the time range is 0.0 min or 0.0 h,
the decimal point flashes to indicate
timing operation.
Set Value 1, 2 Display (green)
12345678
OFF
ON
Forecast value setting:
Forecast output ON: 1 is lit
Control output ON: 2 is lit
Absolute value setting:
Control output 1 ON: 1 is lit
Control output 2 ON: 2 is lit
Refer to
DIP Switch Settings
on
page 45 for details on setting the
DIP switch.
Switches
Align the right edge of the label with the
right edge of the display window.
Unit label
To Next Page
