32 Multifunction Digital Timer H5CX-A/-L
Additional Information

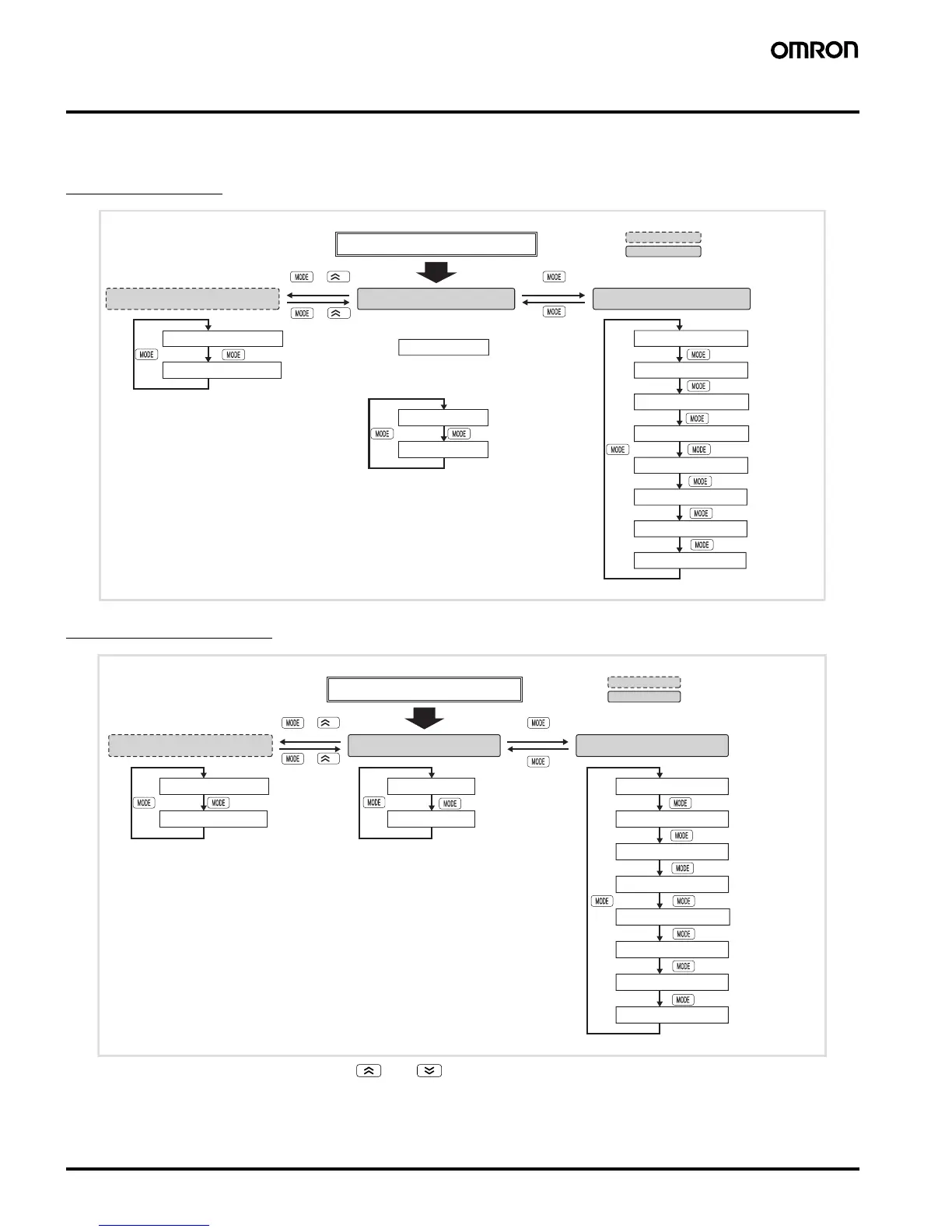

■ Using the Operation Keys
Timer Operation
Twin Timer Operation
Note 1. All setting changes are performed using the and keys.
2. The above flowcharts outline the procedure for all models. For details on specific models, refer to page 19 (timer operation) or page 27
(twin timer operation).
1
+
1
+
Power ON
Run modeTimer/twin timer selection mode Function setting mode
Can be in operation
Operation stopped
Timer/twin timer selection
DIP switch monitor
Timer (Except for Z mode)
PV/SV
Timer (Z mode)
PV/ON duty ratio
PV/cycle time
Time range
Timer mode
Output mode
Output time
Input signal width
NPN/PNP input mode
Display color
Key protect level
1 s min. 3 s min.
3 s min.1 s min.
1
+
1
+
Timer/twin timer selection
DIP switch monitor
PV/OFF set time
PV/ON set time
OFF time range
ON time range
Twin timer output mode
Input signal width
NPN/PNP input mode
Display color
Key protect level
Power ON
Run mode
1 s min.
1 s min.
Function setting mode
Can be in operation
Operation stopped
3 s min.
3 s min.
Timer mode
Timer/twin timer selection mode

Omron H5CX Specifications

General

Time Range	0.001 s to 9999 h
Mounting Method	Flush mounting
Output Type	Relay or Transistor
Control Output	Relay or Transistor
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Input Type	NPN or PNP
Power Supply Voltage	24V AC/DC, 100-240V AC
Operating Voltage Range	85% to 110% of rated voltage
Operating Modes	ON-delay, One-shot, Interval
Contact Rating	5 A at 250 VAC
Mounting	Panel
Dimensions	48 x 48 mm
Protection Structure	IP66 (front panel)
