Omron H5CX User Manual

2-stage Digital Timer H5CX-B 45

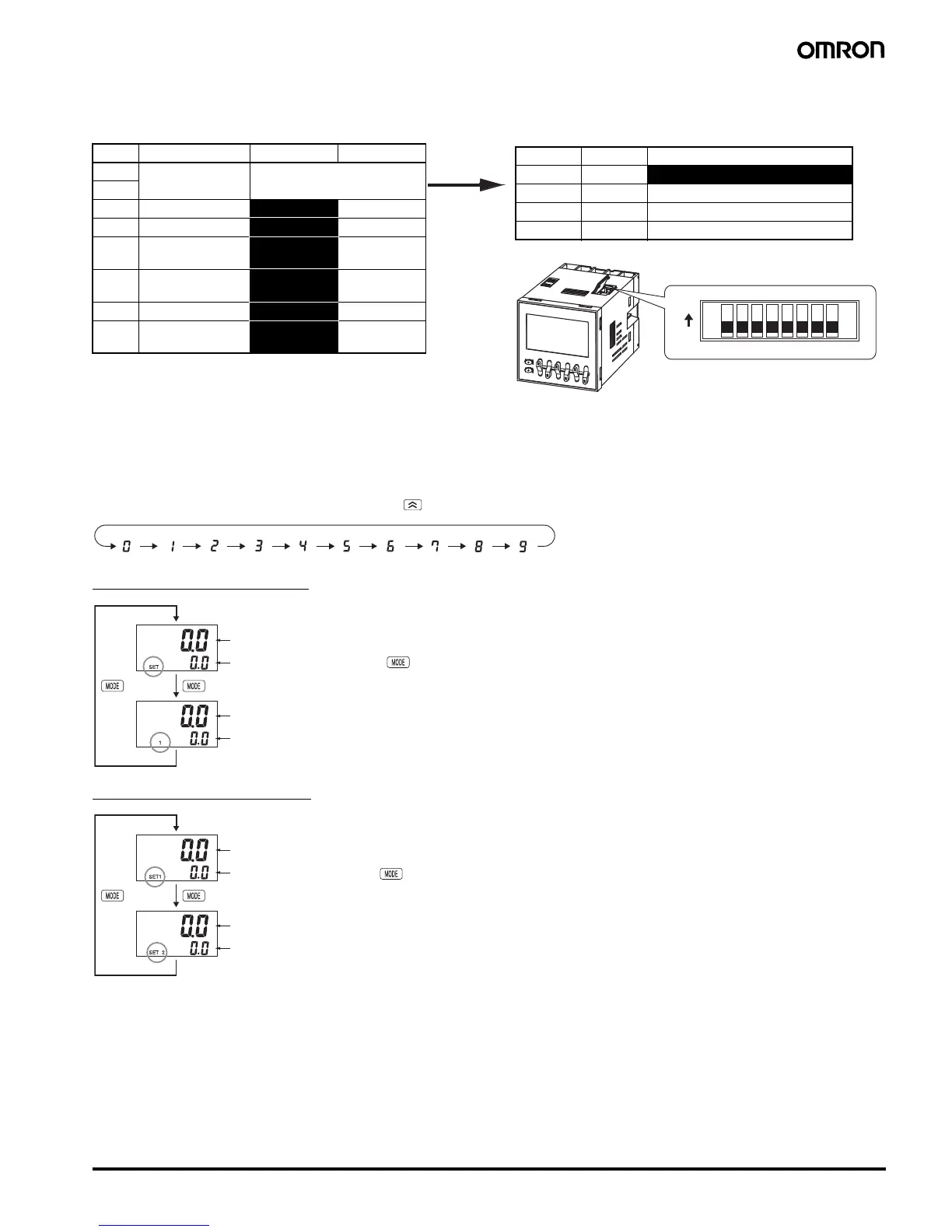

■ DIP Switch Settings
All functions are set using the DIP switch.
Note 1: All the pins are factory-set to OFF.
2: DIP switch settings are effective when the power is turned
ON again. (Set the DIP switch before installation and power-
up.)
3: The characters displayed in reverse video are the default set-
tings.
■ Operation in Run Mode
Set each digit for the set value using the corresponding Keys.
Forecast Value Setting
Absolute Value Setting
Item OFF ON
1 Time range Refer to the table on the right.
2
3 Output mode
F-1 mode A mode
4 Input signal width
20 ms 1 ms
5 NPN/PNP input
mode
NPN PNP
6 Reset Key protec-
tion
Disabled Enabled
7 Up Key protection
Disabled Enabled
8 Mode Key protec-
tion
Disabled Enabled
Pin 1 Pin 2 Time range
OFF OFF
0.1 h to 99999.9 h
ON OFF 0.01 s to 9999.99 s
OFF ON 0 h 00 min 01 s to 99 h 59 min 59 s
ON ON 0.1 min to 99999.9 min
1
OFF
ON
2345678
(Default setting)
Present value
Set value
Each time the Key is
pressed, the sub-display
will switch between the set
value (“SET” is lit) and the
forecast set value (“1” is lit).
Present value
Forecast set value
Present value
Set value 1
Each time the Key is
pressed, the sub-display
will switch between set
value 1 (“SET 1” is lit) and
set value 2 (“SET 2” is lit).
Present value
Set value 2

Omron H5CX Specifications

General

Time Range	0.001 s to 9999 h
Mounting Method	Flush mounting
Output Type	Relay or Transistor
Control Output	Relay or Transistor
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Input Type	NPN or PNP
Power Supply Voltage	24V AC/DC, 100-240V AC
Operating Voltage Range	85% to 110% of rated voltage
Operating Modes	ON-delay, One-shot, Interval
Contact Rating	5 A at 250 VAC
Mounting	Panel
Dimensions	48 x 48 mm
Protection Structure	IP66 (front panel)
