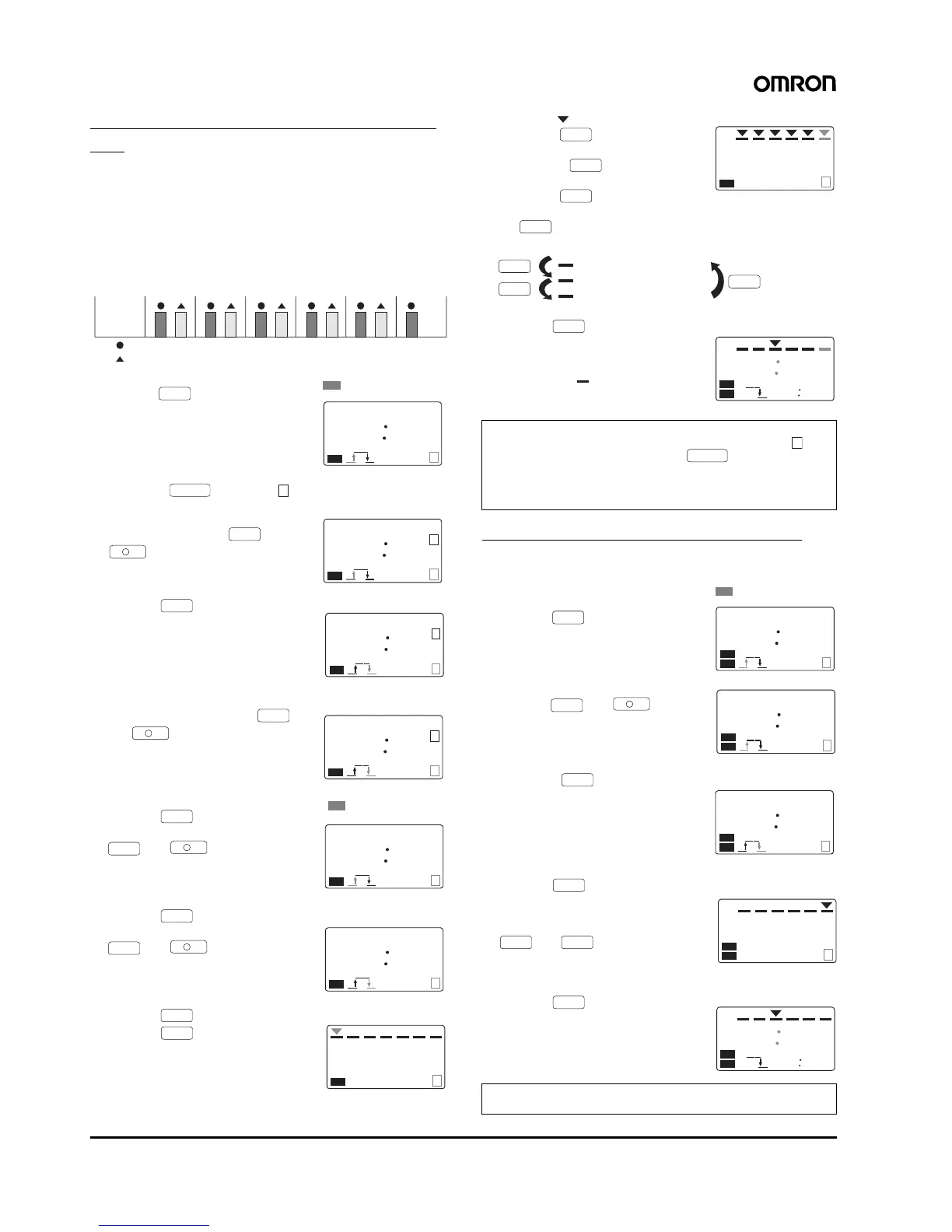

12 Digital Daily Time Switch H5F
Setting Partial Operation on Specified
Day
The Time Switch can be set to operate according to only some of the
settings on a user-specified day.
Example:
Monday to Friday: ON at 8:30 am; OFF at 0:30 pm
ON at 1:15 pm; OFF at 5:15 pm
Saturday: ON at 8:30 am; OFF at 0:30 pm
1. Enter operation time setting mode
using the Key.
2. Press the Key. The
symbol will be displayed. Set the
ON time for the specified day to
8:30 am using the and
Keys.
3. Press the Key.
4. Set the OFF time for the specified
day to 0:30 pm using the
and Keys.
5. Press the Key.
Set the time to 1:15 pm using the
and Keys.
6. Press the Key.
Set the time to 5:15 pm using the
and Keys.
7. Press the Key.
Press the Key to enter oper-
ation date setting mode.
8. Move the symbol to Saturday
using the Key. Make the
operation day indicator flash by
pressing the Key. Move the
present day indicator to Sunday
using the Key. Clear the
operation day indicator by pressing
the Key.
9. Press the Key.
The Time Switch will enter run
mode and operation based on the
settings will start. The operation
day indicator ( ) of the specified
day will flash.
Changing Timer Operation Settings
Example: Changing the ON time for program 1 from 8:30
am to 7:45 am
1. Enter operation time setting mode
using the Key. The ON time
for program 1 will be displayed.
2. Change the ON time to 7:45 am
using the and Keys.
3. Press the Key. The OFF
time for program 1 will be displayed.
(Make changes, if necessary, using
the same procedure as for ON
time.)
4. Press the Key to enter oper-
ation date setting mode. The opera-
tion dates will be displayed. (Make
changes, if necessary, using the
and Keys.)
5. Press the Key.
The Time Switch will enter run
mode and operation will start.
Non-operation Operation
8:30 am to 0:30 pm (Specified Day Operation)
1:15 pm to 5:15 pm
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Operation Operation Operation Operation Specified day
MODE
1
--
--
P
PW
SU MO TU WE TH FR SA
The color indicates flashing
SELECT
S
h
P
m/ WD
1
8
30
AM
P
S
PW
SU MO TU WE TH FR SA
WRITE
1
--
--
P
S
PW
SU MO TU WE TH FR SA
h
P
m/ WD
1
0
30
PM
P
S
PW
SU MO TU WE TH FR SA
WRITE
h
P
m/ WD
2
1
15
PM
P
PW
SU MO TU WE TH FR SA
The color indicates flashing
WRITE
h
P
m/ WD
2
5
15
PM
P
PW
SU MO TU WE TH FR SA
WRITE
MODE
P
PW
SU MO TU WE TH FR SA
Note: 1. Partial operation on specified day can be set for two or
more programs. For each program, however, the must
be displayed by pressing the Key.
2. Two or more days can be specified as specified days.
3. Partial operation on specified day can also be set for pulse-
output operation.
Note: Operation based on the changed settings will start as soon as
the Time Switch returns to run mode.
d
WRITE
d
WRITE
Lit: Operation day
Not lit: Non-operation day
Flashing: Specified operation day
WRITE
WRITE
WRITE
P
PW
SU MO TU WE TH FR SA
MODE
0
30
10
30
ON
AM
PM
PW
SU MO TU WE TH FR SA
S
SELECT
MODE
1
8
30
ON
AM
P
PW
SU MO TU WE TH FR SA
The color indicates flashing
h
P
m/ WD
1
7
45
ON
AM
P
PW
SU MO TU WE TH FR SA
WRITE
1
6
30
ON
PM
P
PW
SU MO TU WE TH FR SA
MODE
d
WRITE
ON
P
PW
SU MO TU WE TH FR SA
MODE
6
30
10
30
ON
AM
PM
PW
SU MO TU WE TH FR SA
To Next Page
