Omron H5F Datasheet

4 Digital Daily Time Switch H5F

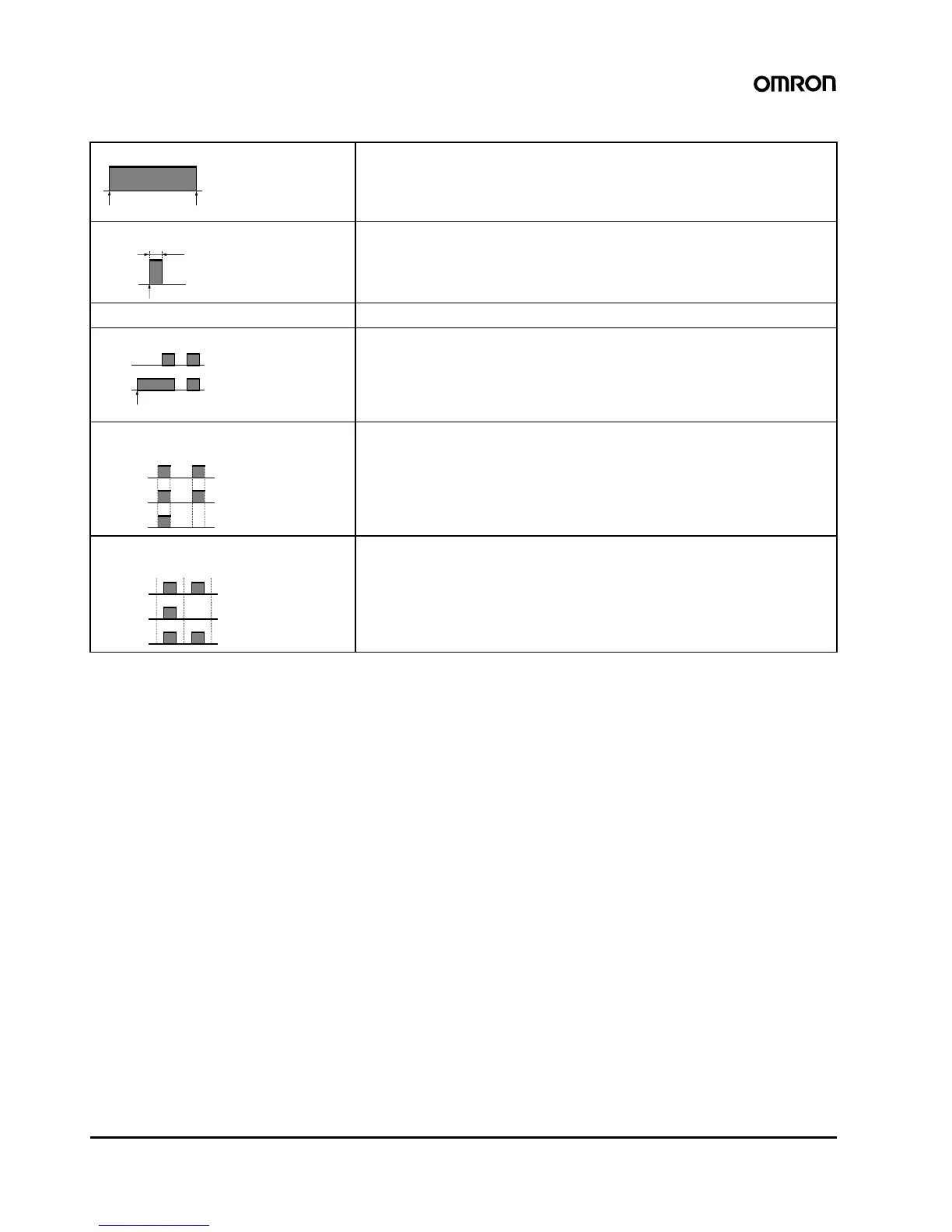

■ Operation Functions
Note: Both the timer operation and the pulse-output operation cannot be programmed together.
■ Operation When Power Turns OFF
1. The time and settings are backed up using a lithium battery.
2. The display stays ON but the output turns OFF.
3. Settings for all types of operation except override and automatic
return operation are possible.
Timer operation (ON/OFF operation) Controls the output according to preset of ON and OFF times
• Minimum setting unit: 1 min
• Up to 12 ON/OFF operations are possible per day.
Pulse-output operation Output turns ON for a fixed period (pulse width) at the set time.
• Pulse width: 1 to 59 s, or 1 to 60 min. (The same pulse width setting is used for all types of
output operation.)
• The pulse width can be set in units of 1 s or 1 min.
• Up to 24 pulse-output operations are possible per day.
Forced ON/OFF operation Forcibly turns ON/OFF the output by the output ON/OFF switch.
Override and automatic return operation Using the output ON/OFF switch and the Write Key, control output is held in the ON state until
the next OFF time.
• It is also possible to hold the control output in the OFF state until the next ON time.
• Operation after the output turns OFF (or ON) will be based on the regular program.
• This function can be used with pulse-output operation.
Partial operation on specified day The Time Switch operates according to only some of the programs on a user-specified day.
(Convenient, for example, for executing a half-day operation on Saturday.)
• It is not possible to set operation to be executed only on the specified day.
• This function can be used with pulse-output operation.
Holiday setting It is possible to set a day in the present week as a holiday (i.e., a non-operation day: output
OFF regardless of the settings). When that day has passed, operation will continue according
to the regular program, and operation will be executed as normal on that day from the follow-
ing week
• This function can be used with pulse-output operation.
ON time
OFF time
ON time
Pulse width
Output
operation
Regular
program
Start of override and
automatic return operation
Operation on
operation day
Operation on
specified day
Regular
program
Program 1
(special)
Program 2
Operation from
next week
Operation in
present week
Operation on
operation day
Regular
program
Operation
on holiday
