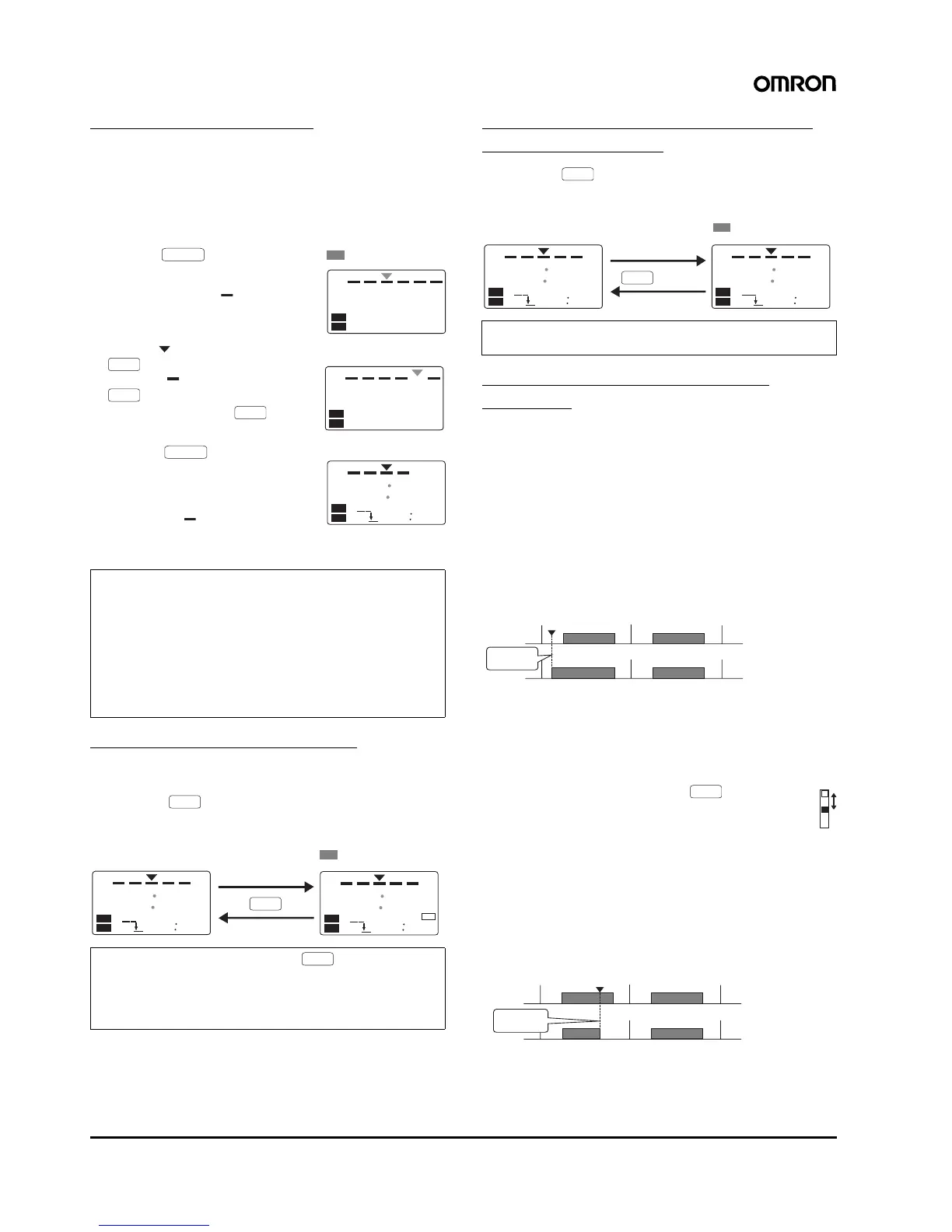

14 Digital Daily Time Switch H5F
Holiday Setting Function
The following example shows how to stop operation for a certain day
in the present week and restore normal operation from the following
week using the holiday setting function.
Example: Stopping operation for Friday and Saturday in
the current week and resuming normal
operation from the following week
1. Press the Key for 2 s min.
in run mode to enter holiday setting
mode. hday will flash and the oper-
ation day indicator ( ) will light
under the days set for operation
day.
2. Move the symbol to Friday using
Key. Clear the operation day
indicator ( ) by pressing the
Key. Repeat the procedure
for Saturday. (Press the Key
again to clear the holiday setting.)
3. Press the Key. The Time
Switch will enter run mode and the
operation day indicator under the
days set as holidays will turn OFF.
(When a day set as a holiday has
passed, the ( ) indicator under
that day will automatically turn ON
again.)
Summer Time (DST) Function
The summer time function allows the Time Switch to be used in
regions that observe daylight saving time during the summer.
Each time the Key is pressed in run mode, the present time
will switch between the (standard) present time and the present time
+ 1 hour (summer time).
Switching between 12-hour (am/pm)
and 24-hour Display
Each time the Key is pressed for 2 s min. in run mode, the
time display switches between 12-hour (am/pm) and 24-hour display.
Override and Automatic Return
Operation
Override and automatic return operation can be used to handle sud-
den schedule changes without making changes to the program. The
output status can be set to ON or OFF directly using the output ON/
OFF switch. This output status is then held until the next ON/OFF
operation time.
Example 1: Starting operation earlier than the scheduled
time on the present day only
Regular setting: ON at 8:30 am; OFF at 5:15 pm
Use the following procedure to start operation at 7:00 am
for the present day only.
1. Change the setting of the output ON/OFF switch from AUTO to
ON.
2. Return the setting of the output ON/OFF switch from
ON to AUTO while holding down the Key.
The ON state will be held from the point at which this
operation is performed (indicated by the arrow) until
the next (regular) OFF time.
Example 2: Stopping operation earlier than the
scheduled time on the present day only
Regular setting: ON at 8:30 am; OFF at 5:15 pm
Use the following procedure to stop operation at 3:00 pm
for the present day only.
Note: 1. Any day in the 7-day period starting from the present day
can be set as a holiday.
2. Operation based on the new settings (i.e., including the
holiday setting) will start as soon as the Time Switch re-
turns to run mode.
3. Holiday setting mode can be entered from run mode only.
4. If the present day setting in time adjustment mode is
changed, all holiday settings will be cleared.
5. If a day set as a holiday is changed in operation date set-
ting mode, the holiday setting for that day will be cleared.
Note: 1. The summer time indicator ( ) is displayed while
summer time is set.
2. The contents of the programs are not changed.
3. The summer time setting can only be set or cleared in run
mode.
HOLIDAY
hd
ay
ON
PW
SU MO TU WE TH FR SA
The color indicates flashing
d
WRITE
WRITE
hd
ay
ON
PW
SU MO TU WE TH FR SA
HOLIDAY
5
15
10
30
ON
AM
PM
PW
SU MO TU WE TH FR SA
+1h
5
15
3
30
ON
PM
PM
PW
5
15
4
30
ON
PM
PM
+1h
PW
SU MO TU WE TH FR SA
SU MO TU WE TH FR SA
The color indicates flashing
+1h
+1h
Note: 1. Switching is possible only in run mode.
2. The factory setting is 12-hour (am/pm) display.
h
5
15
3
30
ON
PM
PM
PW
17
15
15
30
ON
PW
SU MO TU WE TH FR SA
SU MO TU WE TH FR SA
The color indicates flashing
(2 s min.)
24-hour Display12-hour (am/pm) Display
h
Output
Regular
program
Override and
automatic return
operation ON
Present day Next day
From the next day, output
operates according to the
regular program.
8:30 am 5:15 pm 8:30 am 5:15 pm
8:30 am
7:00 am
7:00 am
5:15 pm
5:15 pm
WRITE
ON
Switch
AUTO
OFF
8:30 am
8:30 am
5:15 pm 8:30 am 5:15 pm
8:30 am 5:15 pm
3:00 pm
3:00 pm
Output
Regular
program
Next day
From the next day, output
operates according to the
regular program.
Override and
automatic return
operation ON
Present day
