H5S
9

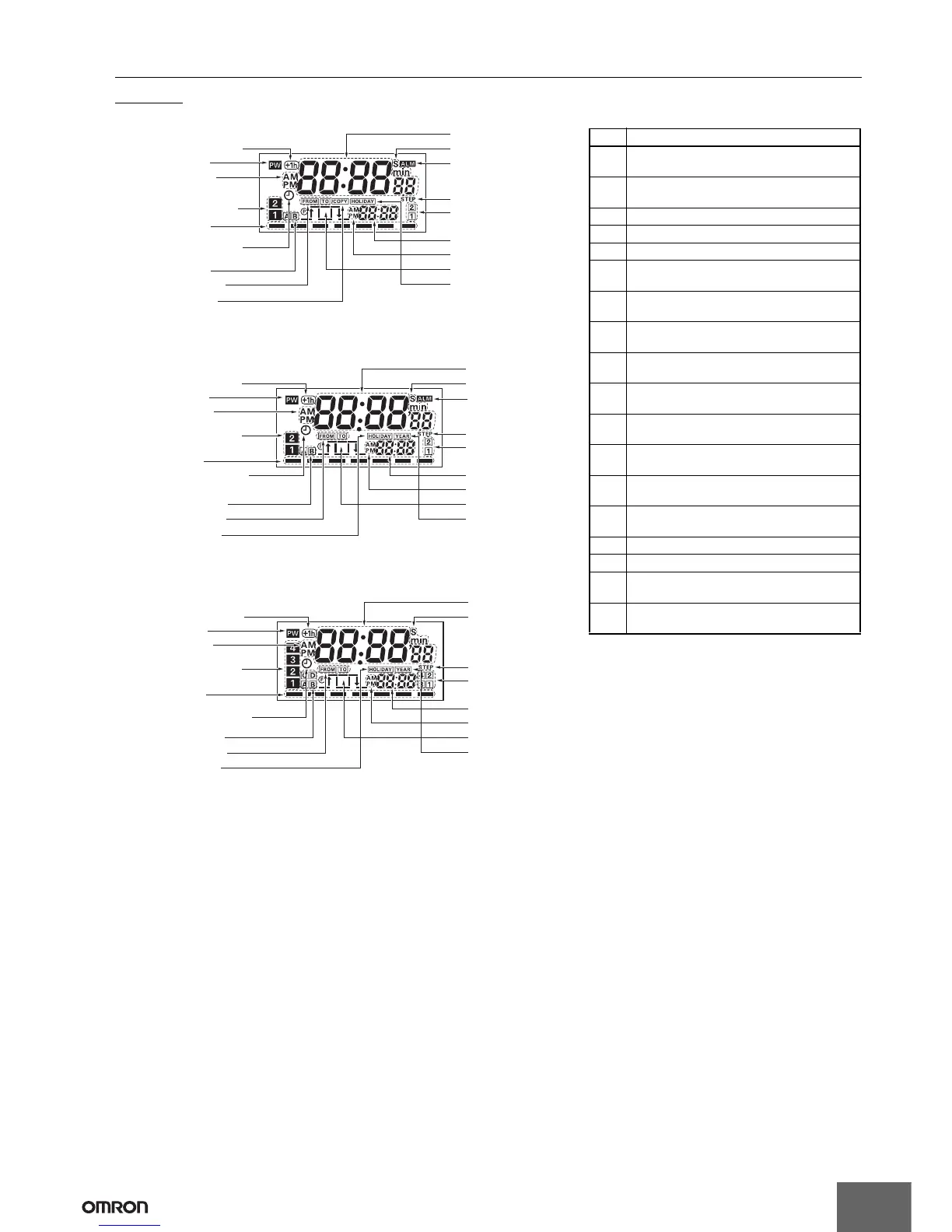

Display
Display Description
No. Function
1 Lights when power is supplied to the Time
Switch.
2 When 12-hour display is selected, either AM
or PM lights. (24-hour display is the default.)
3 Lights when summer time (+1 h) is activated.
4 Displays the current time and other values.
5 Displays the unit for the pulse width.
6 Lights when the total time or count value
exceeds the alarm setting.
7 Displays the number of remaining steps for
programming in setting mode.
8 Displays the number of the circuit (output)
that has been set.
9 Displays the time for the next operation, the
date (yearly models only), and other values.
10 Displays the next operation and other
information in chart form.
11 Displays the bank name (weekly models) or
season name (yearly models).
12 Lights when setting the ON/OFF time or
when setting a day override operation.
13 Lit during the temporary holiday operation or
when setting a temporary holiday.
14 Lit during the day override operation or when
setting a day override operation.
15 Lit during setting a yearly program.
16 Flashes during the Time Adjustment mode.
17 Displays the current day or the day set for an
operation.
18 Displays the number of the circuit (output) for
which output is ON.
Weekly Two-circuit Models
5. Pulse width unit indicator
4. Main display
9. Sub-display
10. Timing chart display
17. Day indicator
11. Bank indicator
12. From/To indicator
14. Copy indicator
1. Power indicator
2. AM/PM indicator
3. Summer time indicator
2. AM/PM indicator
13. Holiday indicator
7. Display of number
of remaining steps
8. Set circuit number
indicator
6. Total value alarm
indicator
18. Output circuit number
indicator
16. Time adjustment mode
indicator
Yearly Two-circuit Models
4. Main display
9. Sub-display
10. Timing chart display
17. Day indicator
11. Season indicators
12. From/To indicator
13. Holiday indicator
1. Power indicator
2. AM/PM indicator
3. Summer time indicator
2. AM/PM indicator
15. Year indicator
7. Display of number
of remaining steps
8. Set circuit number
indicator
6. Total value alarm
indicator
16. Time adjustment mode
indicator
5. Pulse width unit
indicator
18. Output circuit number
indicator
Yearly Four-circuit Models
4. Main display
9. Sub-display
10. Timing chart display
17. Day indicators
11. Season indicator
12. From/To indicator
13. Holiday indicator
1. Power indicator
2. AM/PM indicator
3. Summer time indicator
2. AM/PM indicator
15. Year indicator
7. Display of number
of remaining steps
8. Set circuit number
indicator
16. Time adjustment mode
indicator
5. Pulse width unit
indicator
18. Output circuit number
indicator
