Total Counter/Time Counter (DIN 72 x 36) H7HP 13

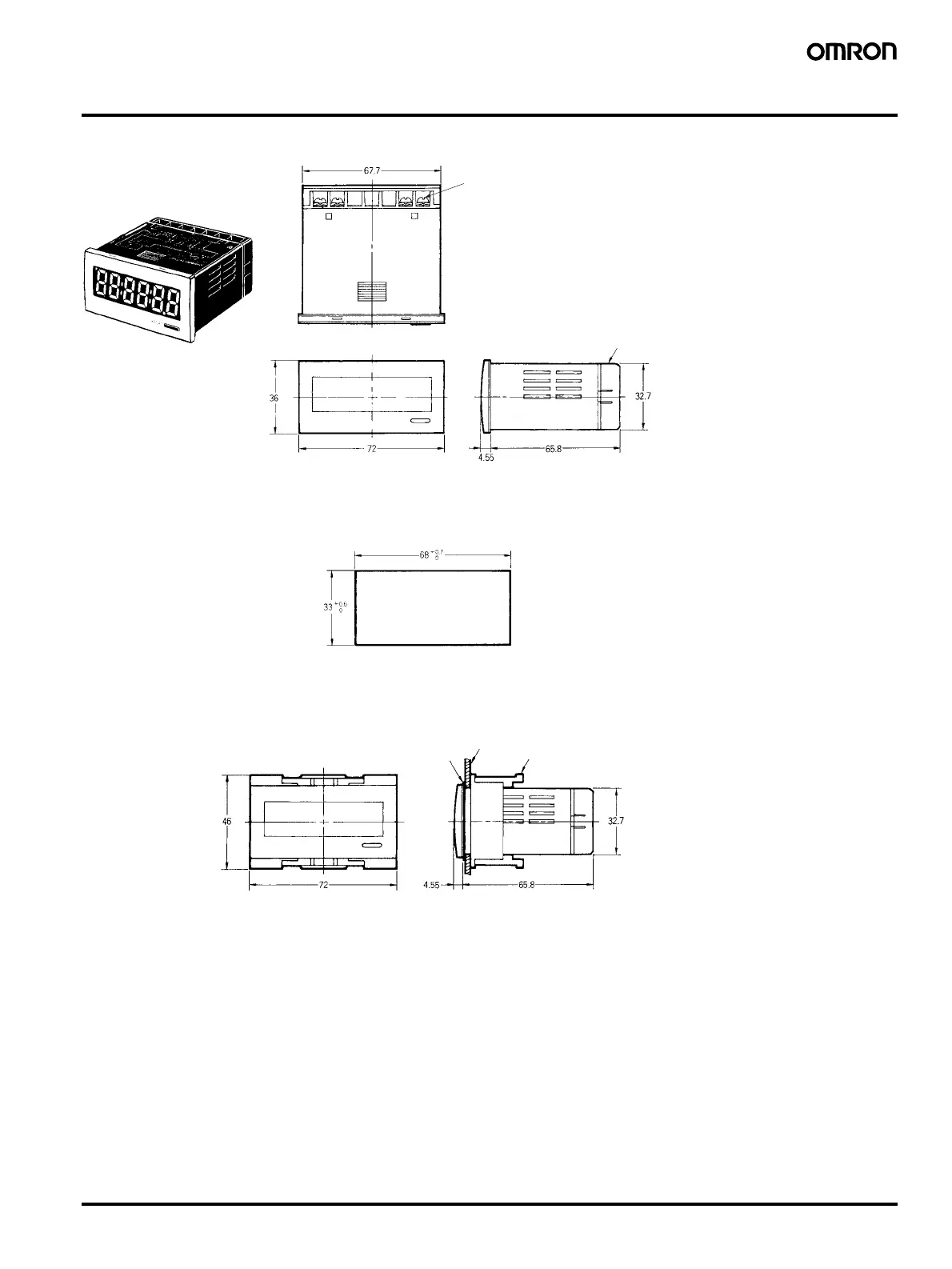

Dimensions
Note: All units are in millimeters unless otherwise indicated.
Panel Cutouts
With Flush Mounting Bracket
Terminal cover (provided)
Panel
M3.5 terminal screw
H7HP-A
H7HP-C8
Panel cutouts are as shown below
(according to DIN43700).
Note: 1. The mounting panel thickness should
be 1 to 6 mm.
2. Water resistance will be lost if Counters
are mounted side-by-side.
Y92S-33 rubber
packing (provided)
Y92F-33 flush mounting
adaptor (provided)
