Omron H7BX

24
H7BX

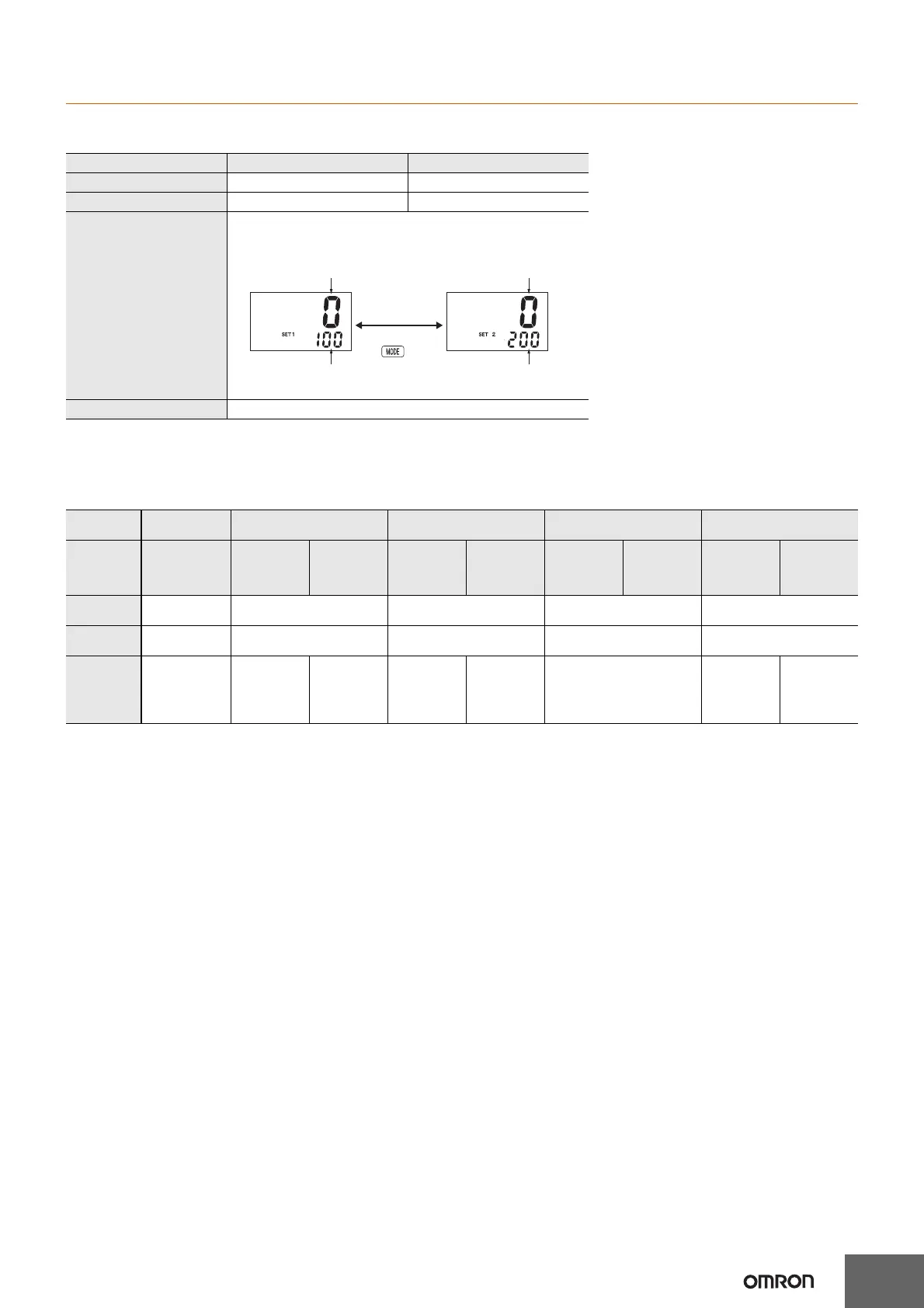

Twin Counter Operation
Two independent counters are built in.
Note: 1. Only 2-stage models
2. Increment mode only for counters 1 and 2.
3. The settings for prescaling and the decimal point are used by both counter 1 and 2.
Reset Function List
Counter 1 Counter 2
Counter input CP1 CP2
Reset input Reset 1 Reset 2
Present value display and
setting
Reset operation Only counters appearing on the display will be reset.
Function
1-stage/2-stage
counter
Total and preset counter Batch counter Dual counter Twin counter
Display in
run mode
Present value/
set value (1, 2)
Present
value/
set value
Total count
value
Present
value/
set value
Batch count
value/
batch count
set value
Dual count
value/
dual count
set value
CP1 present
value/
CP2 present
value
Present
value 1/
Set value 1
Present
value 2/
Set value 2
Reset/
reset 1
Present value
and output reset.
Present value and output
reset.
Present value and output
reset.
Only the CP1 present value is
reset.
Only the CP1 present value is
reset.
Total reset/
reset 2
No effect.
Only the total count value is
reset.
Batch count value and batch
output reset.
Only the CP2 present value is
reset.
Only the CP2 present value is
reset.
Reset Key
Present value
and output reset.
Present value
and output
reset.
Present value,
total count
value, and
output reset.
Present value
and output
reset.
Present value,
batch count
value, output
and batch
output reset.
CP1 present value, CP2
present value, dual count
value, and output reset.
CP1 present
value reset
CP2 present
value reset
Counter 1 present value
Counter 1 set value
Counter 2 present value
Counter 2 set value
Counter 1 display Counter 2 display
Switched with
the Key.
