H7BX
9

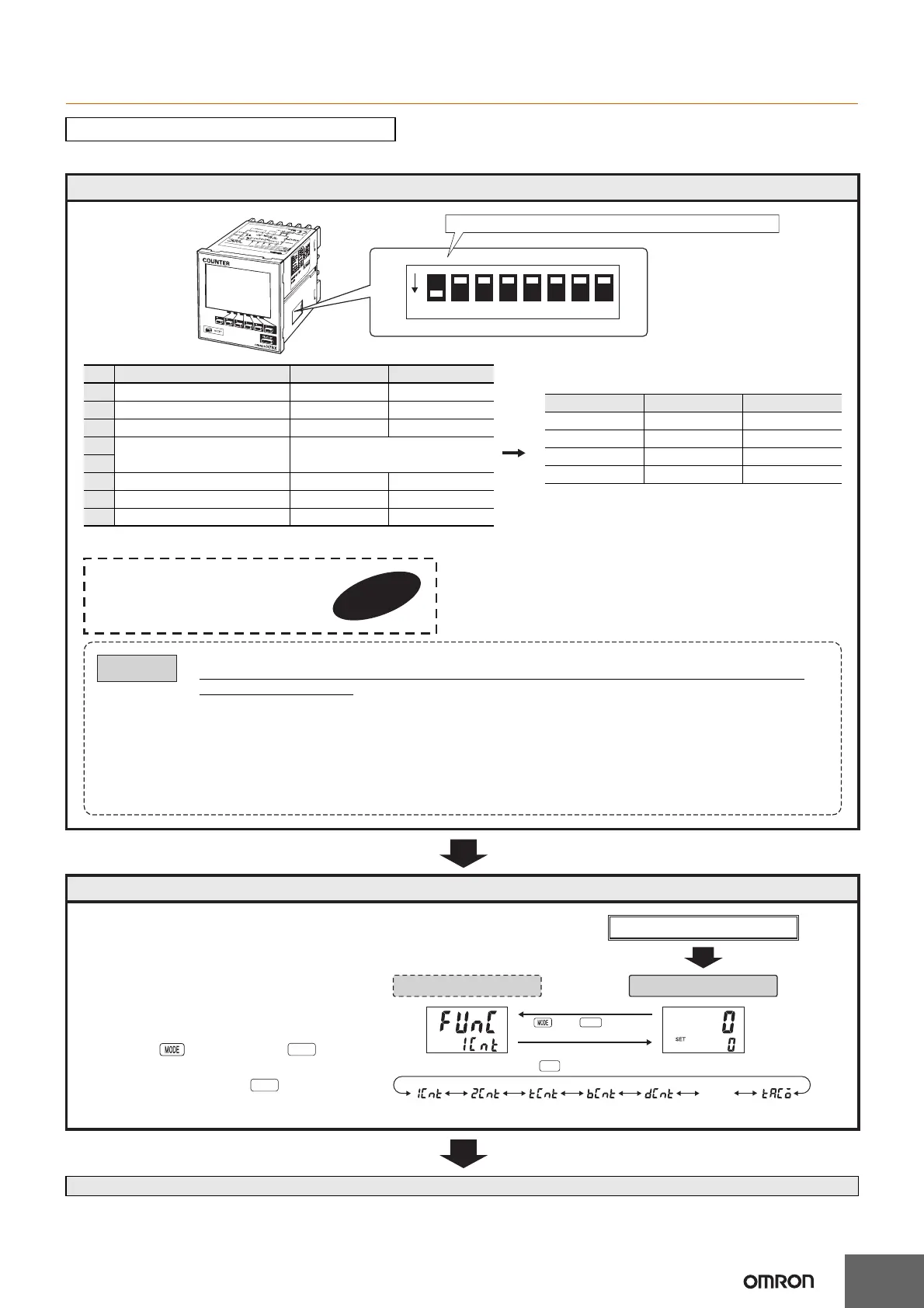

Settings for Basic Operations
Operating Procedures (Counter Function)
After setting the DIP switch for basic operations, advanced functions can be added using the operation keys. For details, refer to page 10 to 12.
OMRON Corp
oration
COUNTER
H7BX
-
A
MADE IN CH
INA
Lot No.
X X
X X X X
Up
Up 1
Up 1
Up 1
Key + Key for at
least 1 s (See note.)
(Total and
preset counter)
(Tachometer)(Dual counter) (Twin counter)(Batch counter)(1-stage preset
counter)
(2-stage preset
counter)
Power ON
Run modeConfiguration selection mode
Configuration
selection
Hold down the Key and press the Key
for at least 1 s.
The mode will not change if the Key is
pressed first.
Note: This includes using a model with a 2-stage
setting as a 1-stage preset counter.
Convenient
Function
Caution
Settings for basic functions can be performed with just the DIP switch.
Using the H7BX as a Total and Preset Counter, Batch Counter, Dual Counter, or Twin Counter
Be sure to turn ON pin 1 when using the DIP switch.
Select the configuration using the Key. (The configurations that can be selected depend on the model.)
ON
12345 6 7 8
twn
Pin 4 Pin 5 Output mode
OFF OFF N
ON OFF F
OFF ON C
ON ON K-1
Note: All the pins are factory-set to OFF.
Item OFF ON
1 DIP switch settings enable/disable Disabled Enabled
2 Counting speed 30 Hz 5 kHz
3 Input mode UP (increment) DOWN (decrement)
4
Output mode Refer to the table on the right.
5
6 One-shot output time (See note.) 0.5 s 0.05 s
7 Reset input signal width 20 ms 1 ms
8 NPN/PNP input mode NPN (no-voltage) PNP (voltage)
The ON/OFF status of the DIP switch pins
can be confirmed using the front display.
For details, refer to page 33.
• Always turn OFF the power supply before changing the DIP switch settings.
• Always turn ON pin 1 when performing settings with the DIP switch. Performing settings with the DIP switch is
disabled when pin 1 is OFF.
• DIP switch setting changes will be updated when the power is turned ON. Perform the settings before performing
installation and supplying power.
• Properly set the DIP switch to match the item being counted (or measured) and use the DIP switch monitor for
confirmation.
• Use the keys on the front panel to perform all settings for input modes, output modes, and output times that cannot
be set with the DIP switch. For details on the setting methods, refer to page 10 to 12.
When performing these settings, always turn OFF pin 1(DIP switch setting) (disabled).
The default setting is for a 1-stage preset
counter. (For models with a 2-stage setting,
the default is for a 2-stage preset counter.)
To make changes, use the procedure shown
on the right. For details, refer to page 33.
