H7CX (Counter Function)H7CX (Counter Function)

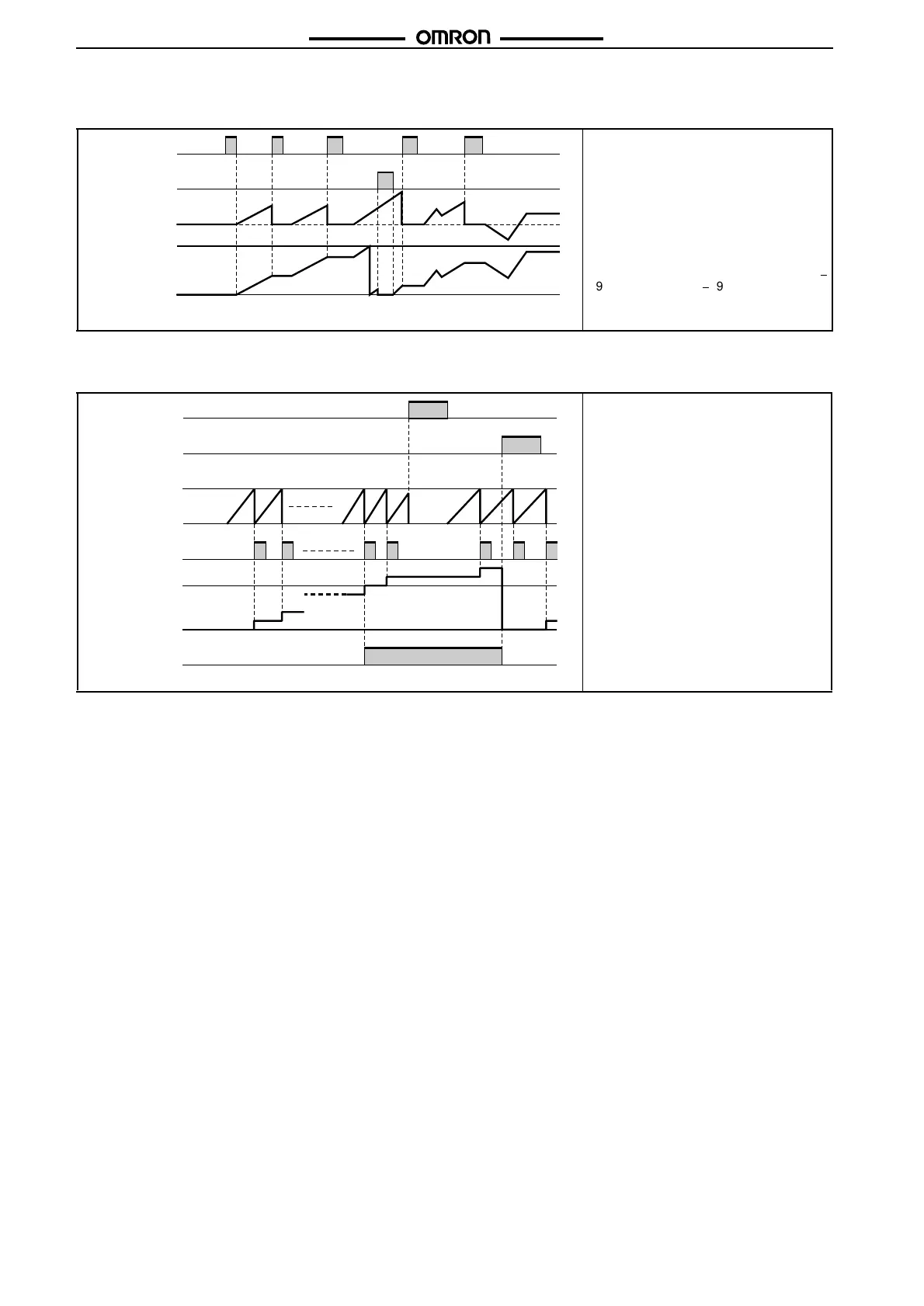

Total and Preset Counter Operation
The H7CX has a total counter, separate from the 1-stage preset counter, for counting the total accumulated value.
Batch Counter Operation
The H7CX has a batch counter, separate from the 1-stage preset counter, for counting the number of times the count has been completed.
Note: 1. The batch count value is held at 0 during batch counter reset input.
2. If the batch count set value is 0, batch count will be performed but there will be no batch output.
3. The batch count value returns to 0 when it reaches 999,999 (9,999 for 4-digit models).
4. Once batch input has been turned ON, it will return to the ON state after power interruptions.
5. If the batch count set value is changed from a value that is greater than the batch count value to one that is less, batch output
will turn ON.
6. After batch output turns ON, the ON state will be held even if the batch count set value is changed to a value greater than the
batch count value.
• The total counter continues to count the to-
tal accumulated value when the present
value is reset using reset/reset 1 input (re-
set key).
• The total count value is reset when the to-
tal reset/reset 2 input is turned ON. If the
reset key is pressed while the total count
value is displayed, the total count value is
reset. The present value is also reset at
this time.
• The counting range of the total counter is
-
99,999 to 999,999 (
-
999 to 9,999). The to-
tal count value returns to 0 when it reaches
the full scale limit.
0
0
999999
Reset/reset 1
Total reset/reset 2
Present value
Total count value
Note: The full scale (FS) for H7CX 4-digit models is 9999.
• The batch counter continues after count
completion.
• Batch output is held until batch counter re-
set is input.
• When the batch counter reset input is
turned ON, the batch count value is reset,
and batch output turns OFF.
• If the reset key is pressed while the batch
count value is displayed, the batch count
value is reset and batch output turns OFF.
The present value is also reset at this time.
0
0
Reset 1
Reset 2 (batch
counter reset)
Set value
Present value
OUT2
Batch count set value
Batch count value
OUT1 (batch output)
Note: The above is for when the output mode is C.
