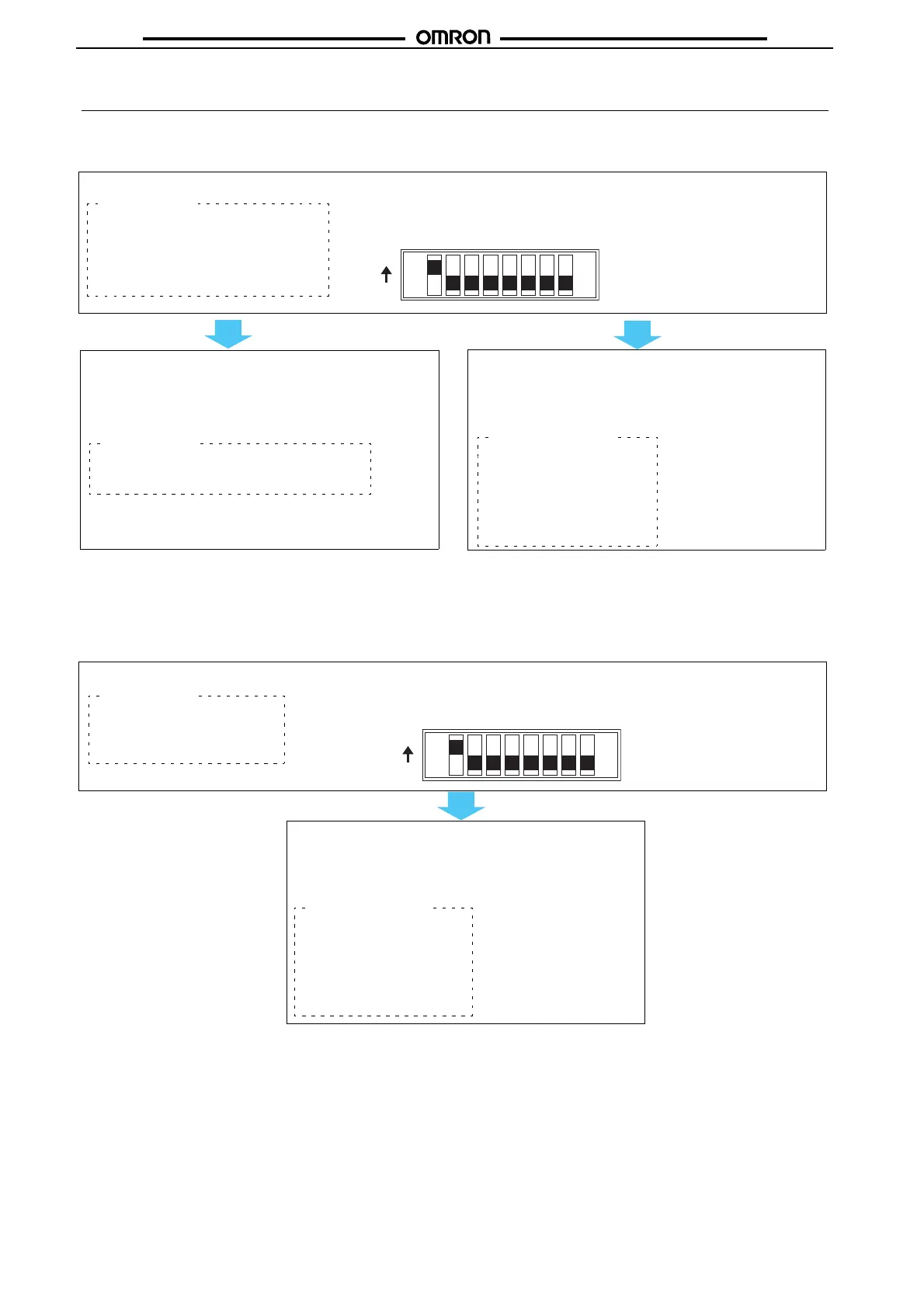

Setting Procedure Guide
■ Setting for Counter Operation
(1-stage/2-stage Counter, Total and Preset Counter, Batch Counter, Dual Counter)
Note: 1. At the time of delivery, the H7CX is set to the 1-stage counter (2-stage counter for H7CX-AW@/-A4W@ models) configuration.
2. Set to output 2 time when using as a 2-stage counter or batch counter.
■
Setting for Tachometer Operation
Note: At the time of delivery, the H7CX is set to the 2-stage counter (1-stage counter for H7CX-AU@ models) configuration.
1
OFF
ON
234567
8
When Using Basic Settings Only
• Counting speed (30 Hz, 5 kHz)
• Input mode (UP, DOWN)
• Output mode (N, F, C, K-1)
• One-shot output time (0.5 s, 0.05 s) (See note 2.)
• Reset input signal width (20 ms, 1 ms)
• NPN/PNP input mode (NPN, PNP)
The settings can be performed easily with the DIP switch.
➡For details on the setting methods, refer to page 13.
When Using Settings Other than the Above
All the functions can be set with the operation keys.
➡For details on the setting methods, refer to page 14.
When Using Advanced Functions
Settings for advanced functions other than the basic settings
above can be performed with the operation keys.
➡For details on the setting methods, refer to page 14.
Basic Settings
• Input mode (UP/DOWN A, UP/DOWN B, UP/DOWN C)
• Output mode (R, P, Q, A, K-2, D, L, H)
• One-shot output time (except for 0.5 s and 0.05 s) (See note 2.)
Other Settings
• Dual count calculating mode
• Output 1 time (for 2-stage counter)
• Decimal point position
• Prescale value
• Display color
• Output allocation
• Key protect level
Advanced Functions
1
OFF
ON
234567
8
When Using Basic Settings Only
• Counting speed (30 Hz, 5 kHz)
• Output mode (HI-LO, AREA, HI-HI, LO-LO)
• Average processing (OFF, 2, 4, 8 times)
• NPN/PNP input mode (NPN, PNP)
The settings can be performed easily with the DIP switch.
➡For details on the setting methods, refer to page 25.
When Using Advanced Functions
Settings for advanced functions other than the basic
settings above can be performed with the operation keys.
➡For details on the setting methods, refer to page 26.
Basic Settings
• Decimal point position
• Prescale value
• Auto-zero time
• Startup time
• Display color
• Output allocation
• Key protect level
Advanced Functions

Omron H7CX Series Specifications

General

Input Signal	Contact
Power Supply	12-24 VDC or 100-240 VAC
Output	Relay
Mounting	Panel mount
Storage Temperature	-25 to 65°C (with no icing or condensation)
Weight	200 g
