Omron H7CX Series User Manual

44
H7CXH7CX

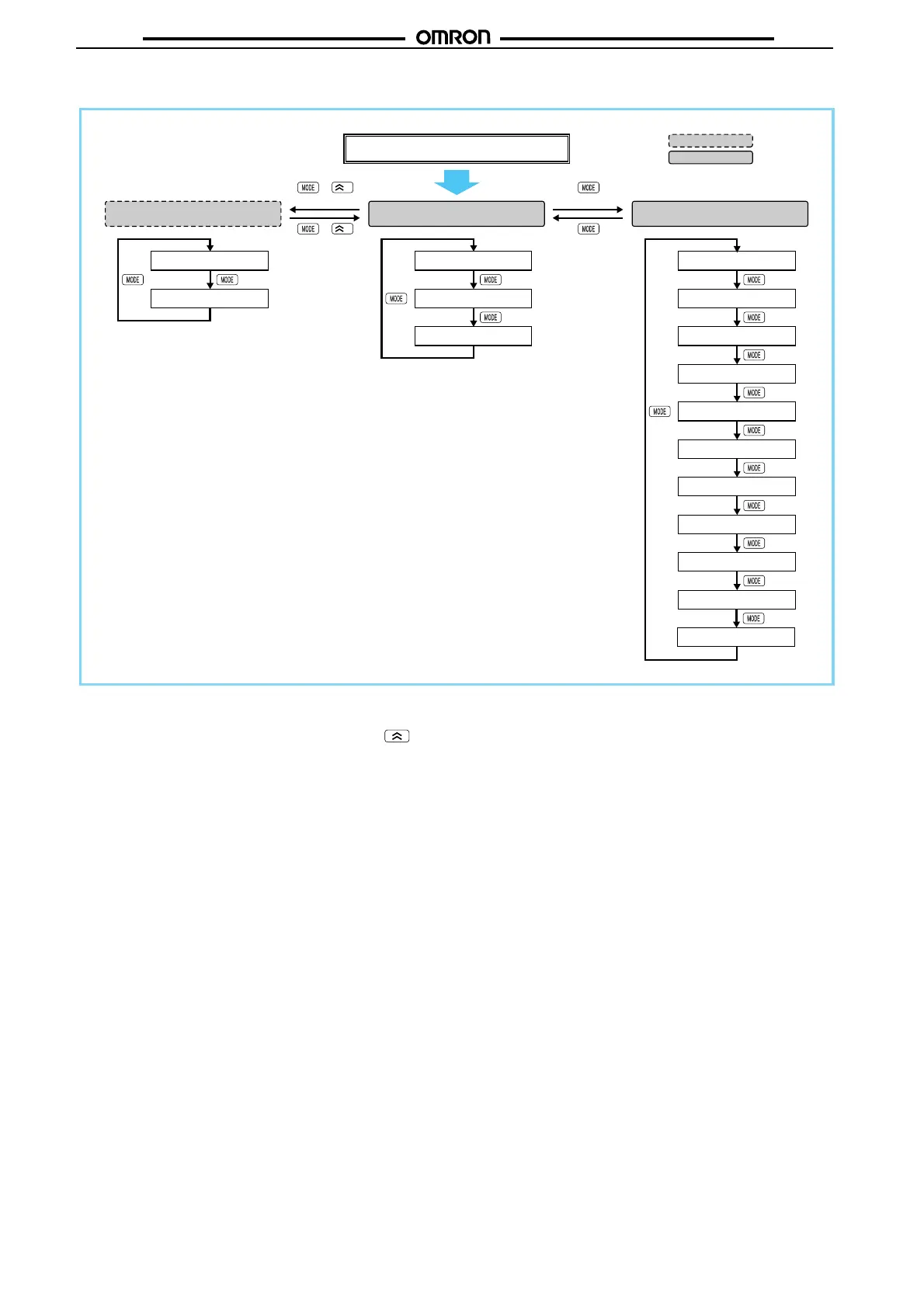

Tachometer Operation
Note: 1. All setting changes are performed using the key.
2. For details, refer to page 25.
1
+
1
+
Power ON
Run mode
1 s min.
1 s min.
3 s min.
3 s min.
Measurement value
Measurement value,
OUT1 set value
Tachometer output mode
Counting speed
Decimal point position
Prescale value
Average processing
Auto-zero time
Startup time
NPN/PNP input mode
Display color
Key protect level
Configuration selection mode
Configuration selection
DIP switch monitor
Counting stopped
Counting possible
Function setting mode
Measurement value,
OUT2 set value
Output allocation

Omron H7CX Series Specifications

General

Input Signal	Contact
Power Supply	12-24 VDC or 100-240 VAC
Output	Relay
Mounting	Panel mount
Storage Temperature	-25 to 65°C (with no icing or condensation)
Weight	200 g
