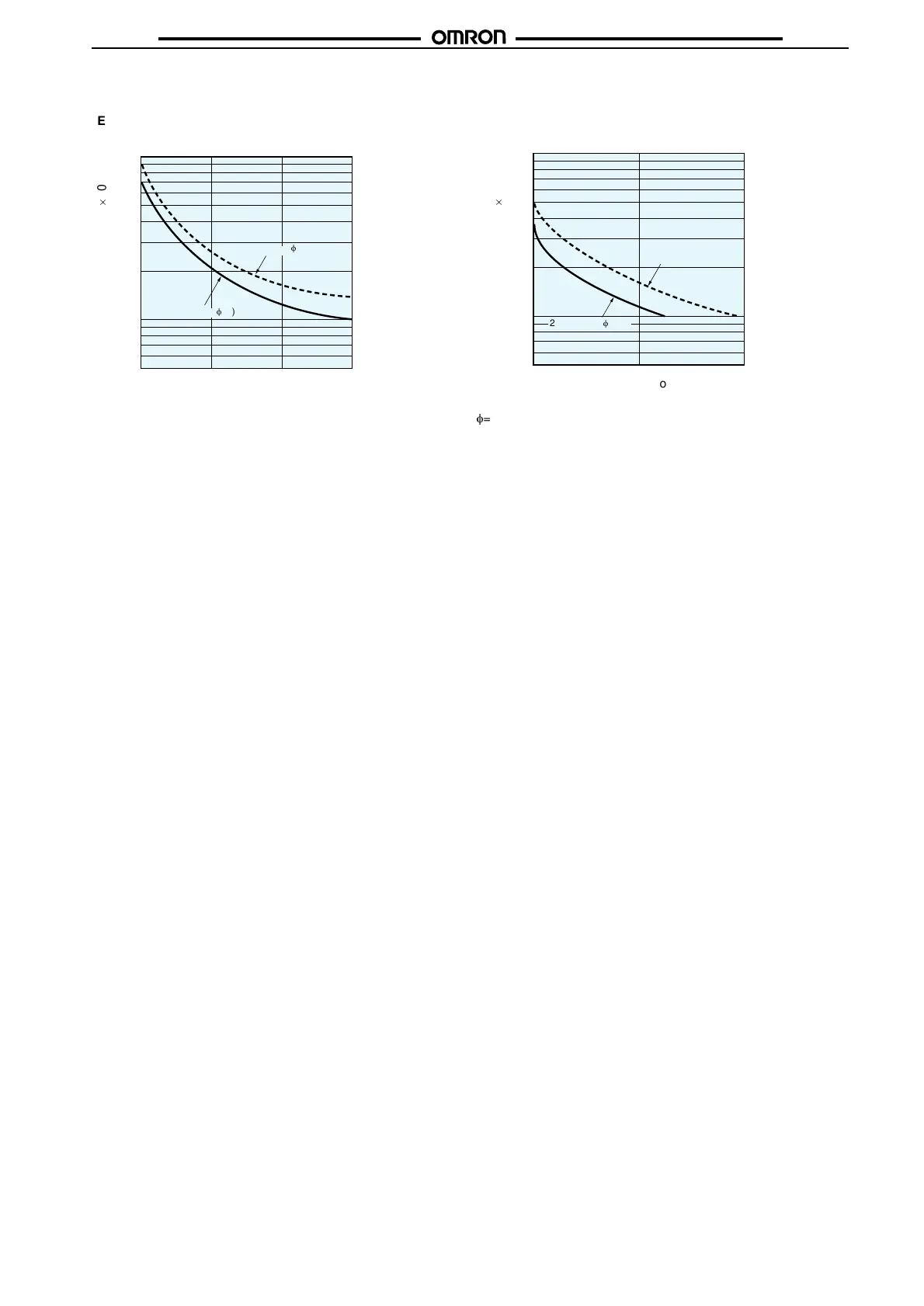

■ Engineering Data (Reference Values)
Reference: A current of 0.15 A max. can be switched at 125 VDC (cos f =1) and current of 0.1 A max. can be switched if L/R=7 ms. In both
cases, a life of 100,000 operations can be expected. The minimum applicable load is 10 mA at 5 VDC (failure level: P).
1,000
700
500
300
100
70
50
01 23
No. of operations (

10
3
)
250 VAC (cos f =1)
Load current (A)
30 VDC (cos f =1)
Electrical Life Expectancy
(Resistive Load)
1,000
700
500
300
100
70
50
012
No. of operations (

10
3
)
250 VAC cos f =0.4
Load current (A)
30 VDC (L/R=7 ms)
Electrical Life Expectancy
(Inductive Load)

Omron H7CX Series Specifications

General

Input Signal	Contact
Power Supply	12-24 VDC or 100-240 VAC
Output	Relay
Mounting	Panel mount
Storage Temperature	-25 to 65°C (with no icing or condensation)
Weight	200 g
