H8CA-S
8
H8CA-S
Blinking
Press the key. “sec” will stop blinking and one of the output
modes will begin blinking. The INPUT MODE will automatically
enter “T”.
Blinking
Disconnect terminals 1 and 3 before setting values. When
terminals 1 and 3 are disconnected, the “ MODE ” display will turn
OFF and output mode “N” will stop blinking.
Always disconnect terminals 1 and 3 when finished selecting the
function. Values cannot be preset if terminals 1 and 3 are
connected.

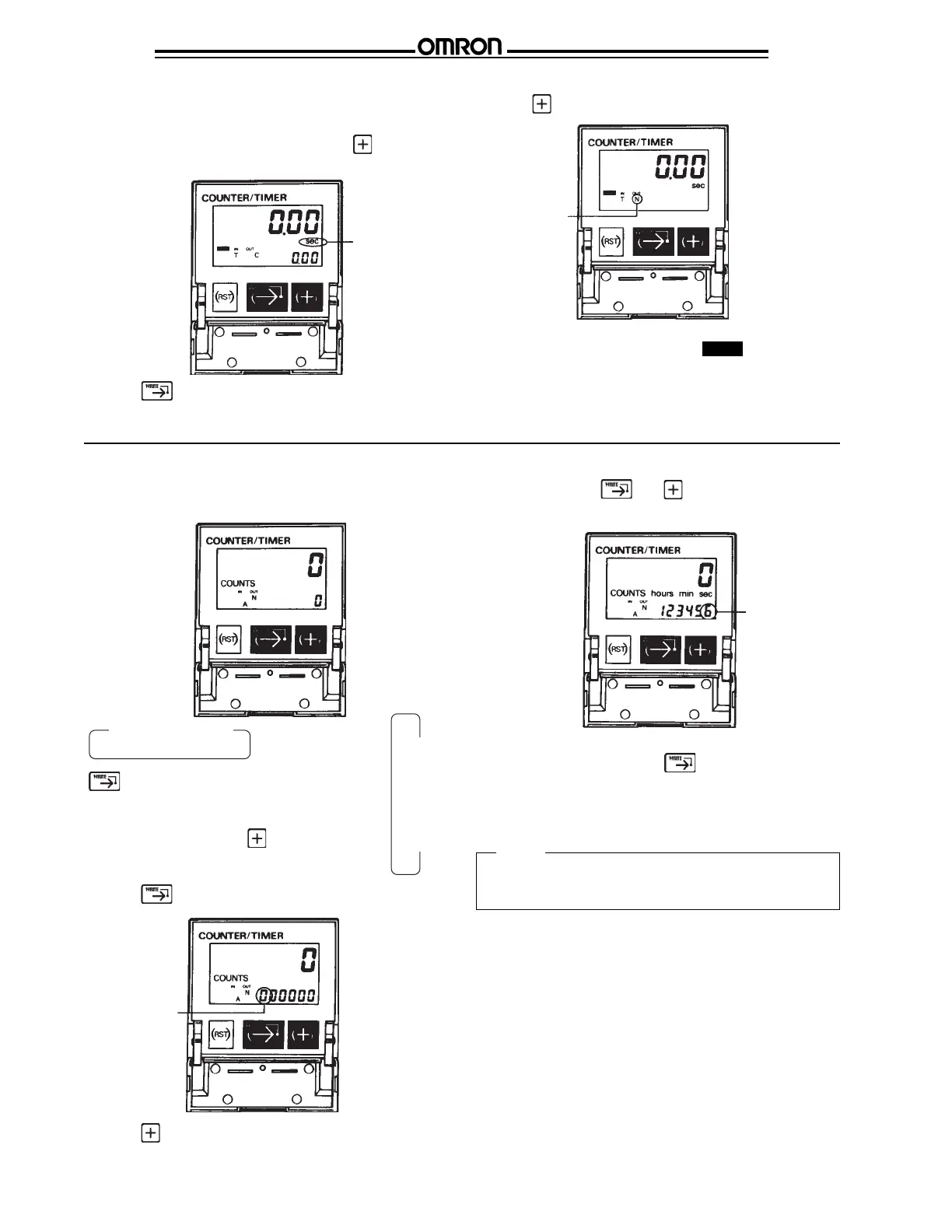

■ PRESETTING NUMERIC VALUES
Preset values after selecting the function. Values can be preset
whether the power supply is ON or OFF.
Continue pressing the and keys until the smallest
digit has been set.
Blinking
To complete presetting, press the key so that no place on
the display is blinking.
*Preset unnecessary higher digits at 0. (i.e. 000015)
The output will go ON if the set value is 0 (0.0 or 0.00) and the
displayed count is also 0 (0.0 or 0.00). In this case, press reset
after presetting, and the output will go OFF.
Notice
High-order
digits
Low-order
digits
→→→
1
↓
2
↓
↓
9
↓
0
…
key: (Press this key to move
to the next column.)
key: (Press this key to
increment values.)
Press the key to set the desired value.
Blinking
Press the key until the desired digit begins blinking.
2. Selecting the timer function with “sec” and output mode
“N”. (Terminals 1 and 3 connected.)
If set for timer, “sec” will begin blinking when the key is
pressed. (Press the keys until the desired place is reached.)
Press the key until input mode “N” begins blinking.
To Next Page
