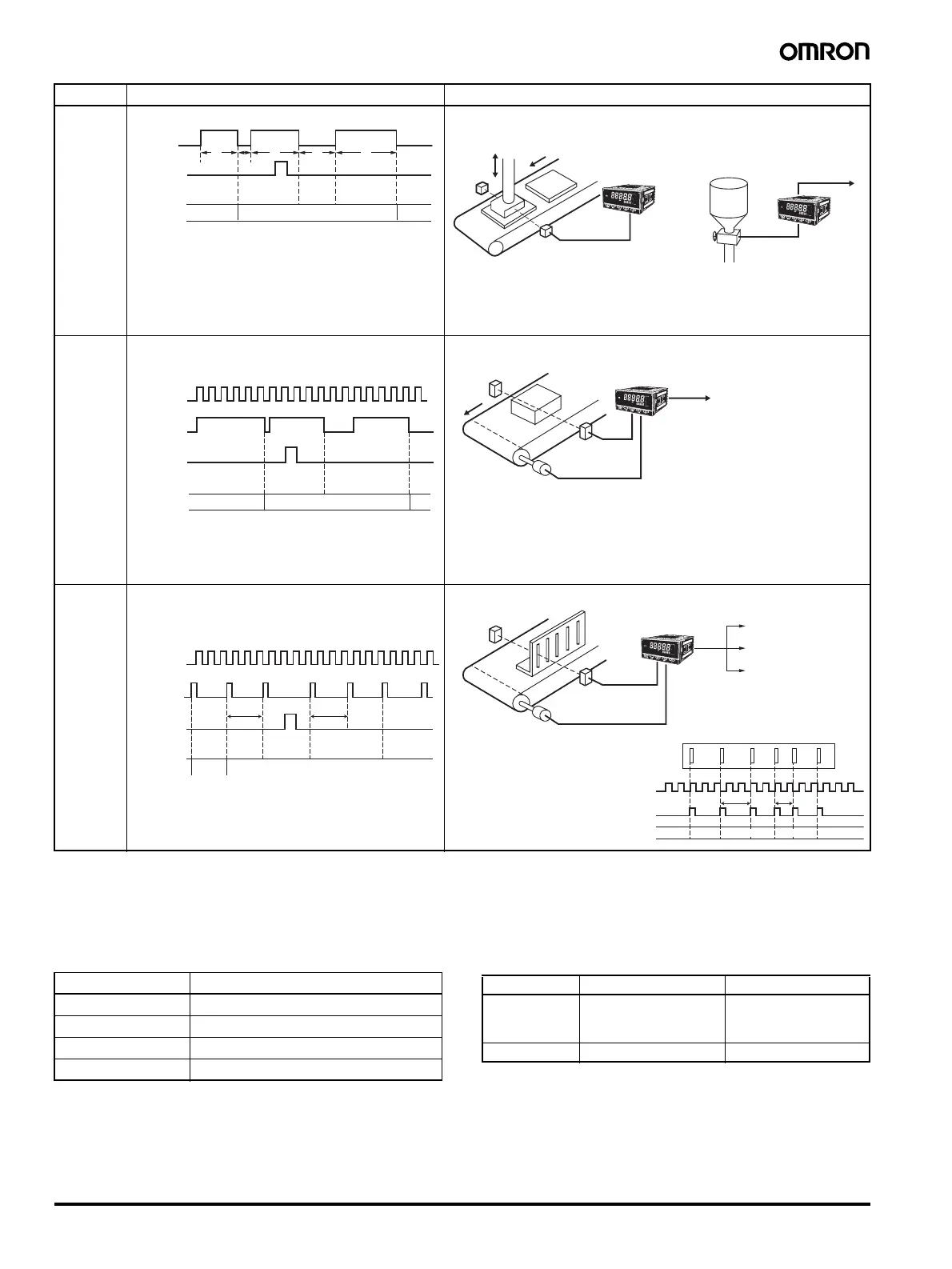

14 Timer Interval Indicator K3HB-P
■ What Is Prescaling?
To make calculations using the input pulse to display the passing speed between two points, the distance between the two points and the display
unit must be set and the internally measured time multiplied by a certain coefficient. This coefficient is called the prescale value. (For information
on settings details, refer to the User's Manual.)
Time Unit Settings Input Type Setting
Note: Set to 10 or 11 when there is a large variation in the display.
The largest measurement range is 30 Hz.
F4
Time band
Displays input A ON time (T).
• Recovery time (TR) of 20 ms is required before
starting the next measurement.
Display unit:
ms, s, min.,
min.s.1/10 s
F5
Measuring
length
Displays the number of input A pulses while input B is
ON.
• Recovery time (TR) of 20 ms is required before
starting the next measurement.
Display unit:
mm, cm, m, etc.
Measuring workpiece length
F6
Interval
Displays the number of input A pulses from when input
B turns ON until input B turns ON again. Measurement
is made every other time input B turns ON.
• Recovery time (TR) of 20 ms is required before
starting the next measurement.
Display unit:
mm, cm, m, etc.
Measuring slit intervals
Function Operation Operation image (application)
Input A
Display
HOLD input
T1 T2 TR
TR
T3
T1 T3
Measurement range: 10 ms to 3,200 s
æ
ç
ç
è
ö
÷
÷
ø
Communications
output
Monitoring the ON time of a printing
press
Managing the valve release
time
Input A
Input B
Display
HOLD input
12345 123456
65
æ
ç
è
ö
÷
ø
BCD
To Programmable Controller
Input A
Input B
Display
HOLD input
1234 1234 121
43
TR TR
æ
ç
è
ö
÷
ø
H
PASS
L
OK judgmen
12 12 123
TR TR
3
2
INA
INB
Display
Setting Meaning
scal Prescale value menu setting
min Minute display
h.mm.ss h.mm.ss display
mm.ss.d mm.ss.d display (d = tenths of a second)
NO: Voltage pulse high NC: Voltage pulse low
No-contact or
voltage pulse
input
00 01
Contact 10 11
To Next Page
