3 - 17
3 Installation and Wiring
NA-series Programmable Terminal Hardware(-V1) User’s Manual (V125)
3-5 Control Panel Installation
3
3-5-5 Electrical Environment
Wiring, and noise countermeasures in particular, must be based mostly on experience, and it is neces-
sary to closely manage wiring based on information in the manuals.
Wiring Routes
Each of the following combinations includes different signal types, properties, or levels. They will
cause the signal-to-noise ratio to drop due to factors such as electrical induction. As a general rule
when wiring, either use separate cables or separate wiring routes for these items. Future mainte-
nance operations and changes to the system will also be made easier by carefully organizing the
wiring from the start.
• Power lines and signal lines
• Input signals and output signals
• Analog signals and digital signals
• High-level signals and low-level signals
• Communications lines and power lines
• DC signals and AC signals
• High-frequency devices (such as Inverters) and signal lines (communications)
Wiring Methods
Observe the following points when wiring power supply and signal cables.
• When routing signal cables with different characteristics through the same duct, always keep
them separated.
• As much as possible, avoid routing multiple power supply lines through the same duct. If it cannot
be avoided, then construct a partition between them in the duct and ground the partition.
External Wiring

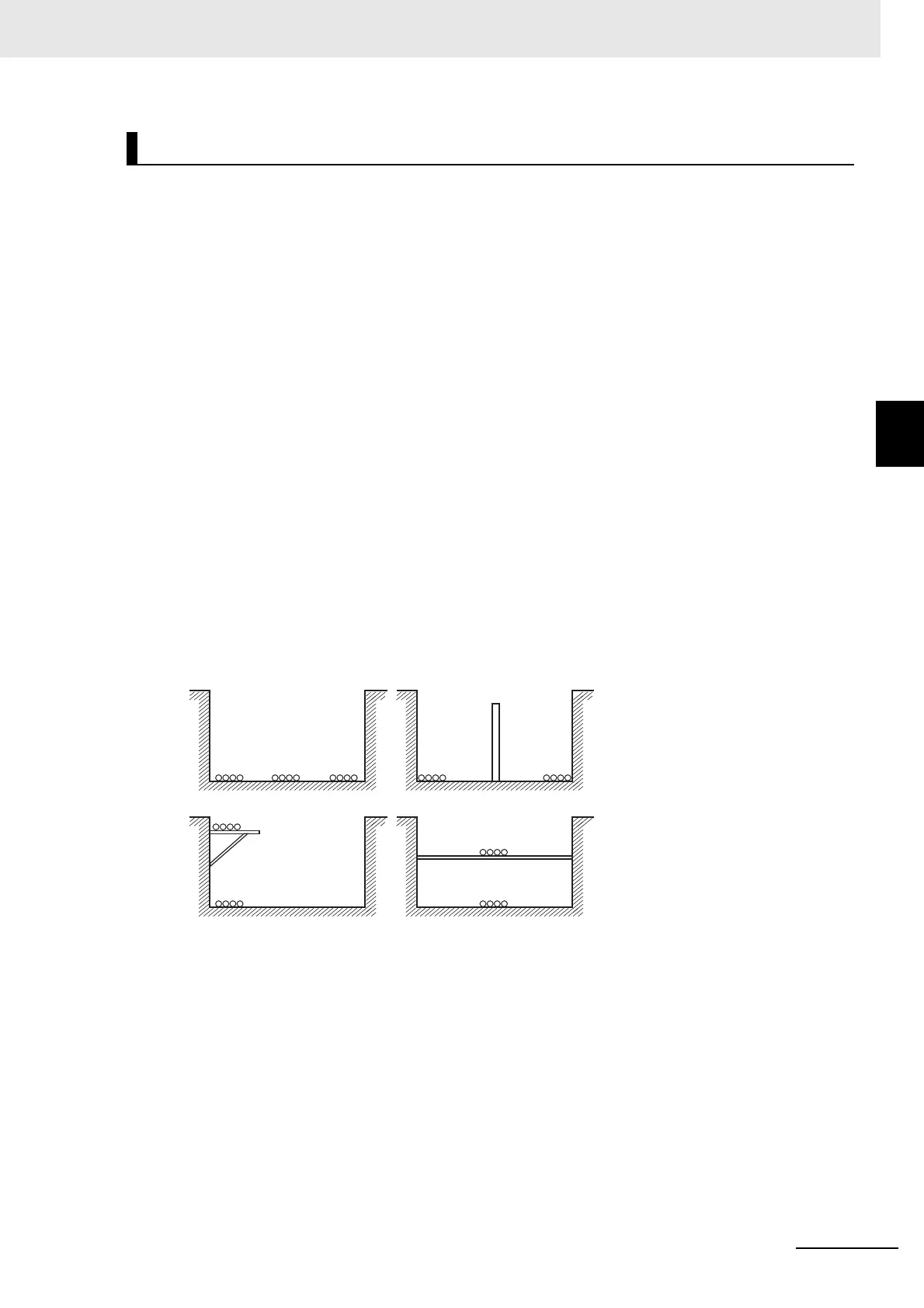

Partitioning Methods for Signal and Power Supply Cables
Signal
cables
(A)
Signal
cables
(C)
Signal
cables
(B)
(a) (b)
(c) (d)
Signal cables
Signal cables
Signal cables
Power supply
cables
Power supply
cables
Power supply
cables
Partition
To Next Page
