Omron NJ Series Network Connection Guide

7. Connection Procedure
4

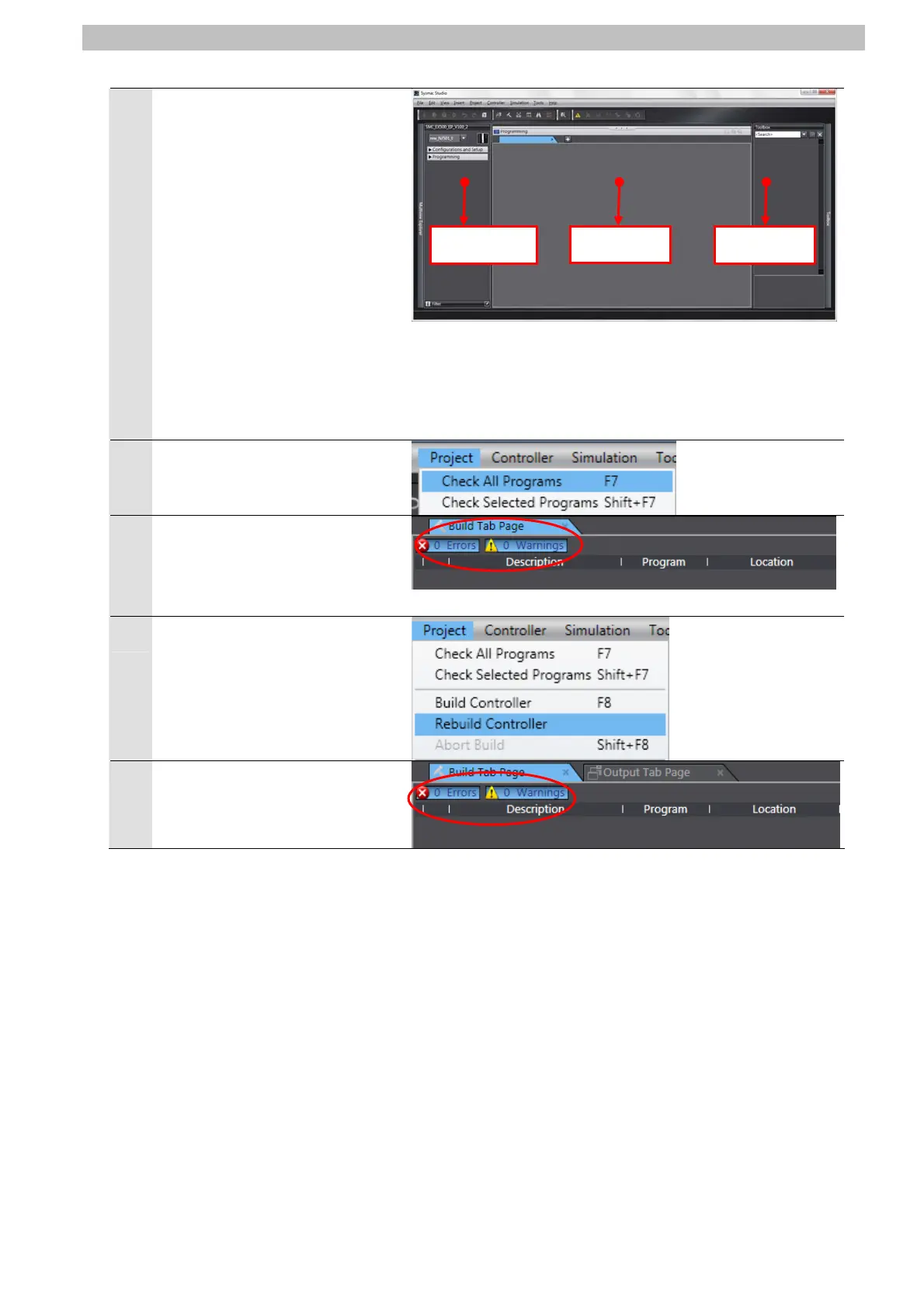

OMRON_ZW_EIP_EV100
project is displayed.
The left pane is called Multiview
Explorer, the right pane is called
Toolbox and the middle pane is
called Edit Pane.
*If an error message is
displayed stating “Failed to
Load Descendants”, change
the version of the Sysmac
Studio to the version specified
in 5.2. Device Configuration or
higher version.
5
Select Check All Programs
from the Project Menu.
6
The Build Tab Page is displayed
in the Edit Pane.
Confirm that "0 Errors" and "0
Warnings" are displayed.
7
Select Rebuild Controller from
the Project Menu.
8
Confirm that "0 Errors" and "0
Warnings" are displayed in the
Build Tab Page.
Multiview
Explorer
Edit Pane Toolbox
27

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
