Omron NJ Series Network Connection Guide

10. Appendix 2 Setting the Tag Data Links Using the Software
3

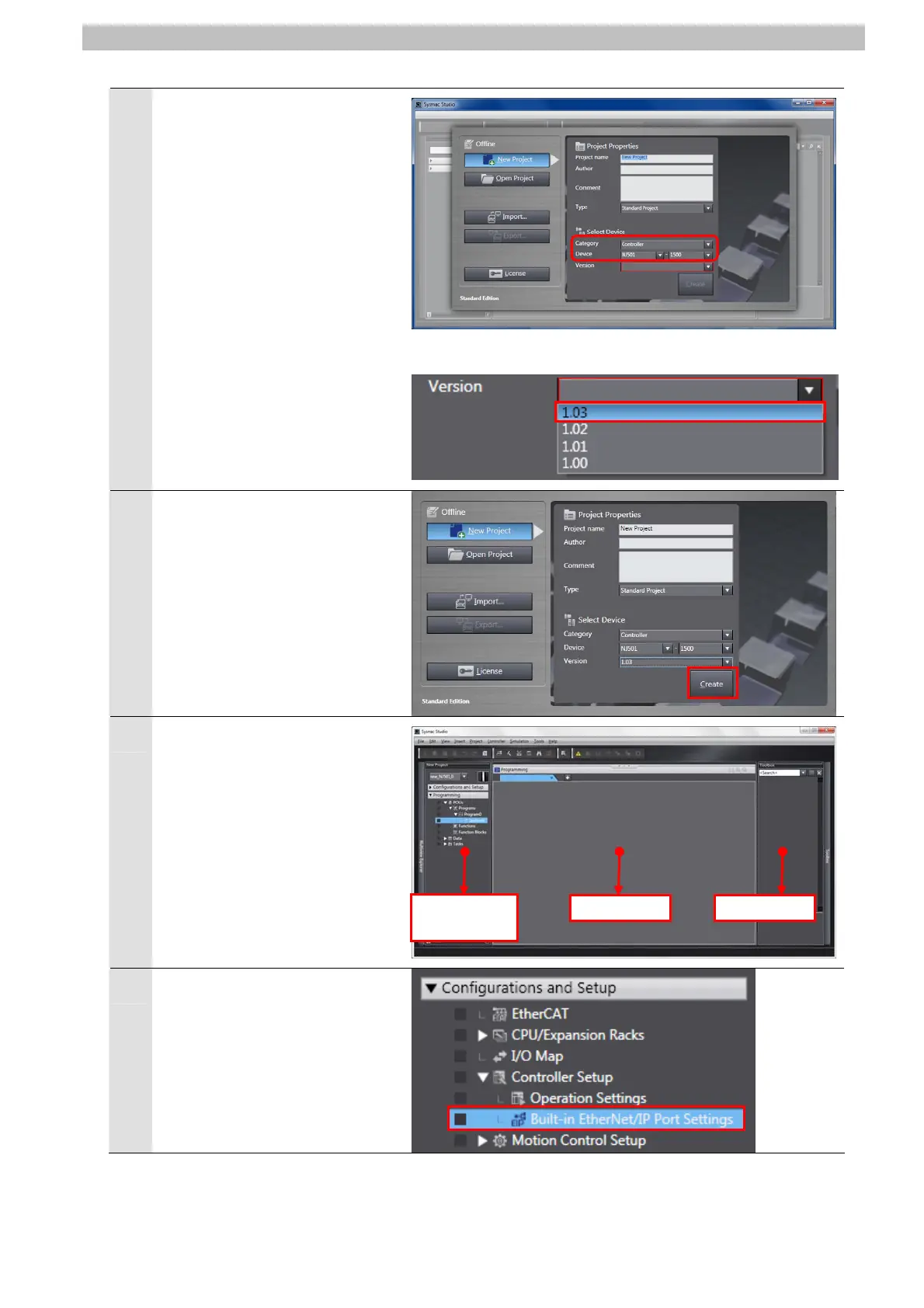

The Project Properties Dialog
Box is displayed.
*In this document, New Project
is set as the project name.
Confirm that Category and
Device to use are set in the
Select Device Field.
Select version 1.03 from the
pull-down list of Version.
*Although 1.03 is selected in this
document, select a version you
actually use.
4
Click the Create Button.
5
The New Project is displayed.
The left pane is called Multiview
Explorer, the right pane is called
Toolbox and the middle pane is
called Edit Pane.
6
Double-click Built-in
EtherNet/IP Port Settings
under Configurations and
Setup - Controller Setup in the
Multiview Explorer.
Edit Pane
Toolbox
Multiview
Explorer
57

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
