Omron NJ Series Network Connection Guide

10. Appendix 2 Setting the Tag Data Links Using the Software
6

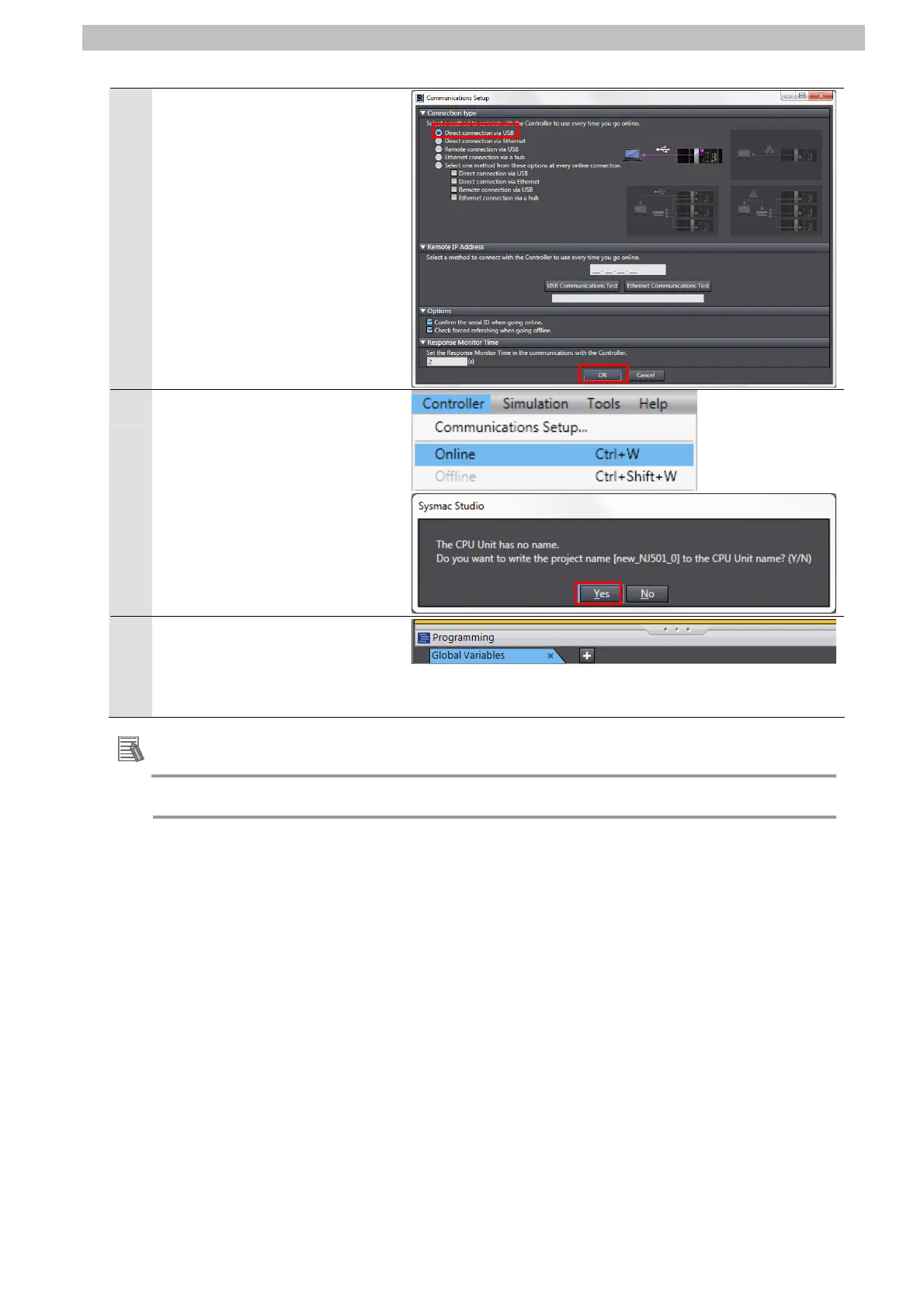

The Communications Setup
Dialog Box is displayed.
Select the Direct Connection via
USB Option for Connection
Type.
Click the OK Button.
7
Select Online from the
Controller Menu.
A confirmation dialog is
displayed. Click the Yes Button.
*The displayed dialog depends
on the status of the Controller
used. Click the Yes Button to
proceed with the processing.
8
When an online connection is
established, a yellow bar is
displayed on the top of the Edit
Pane.
Additional Information
Refer to Section 5 Online Connections to a Controller in the Sysmac Studio Version 1
Operation Manual (Cat. No. W504) for details on online connections to a Controller.
66

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
