Omron NJ Series Connection Guide

7．EtherCAT Connection Procedure
13
4

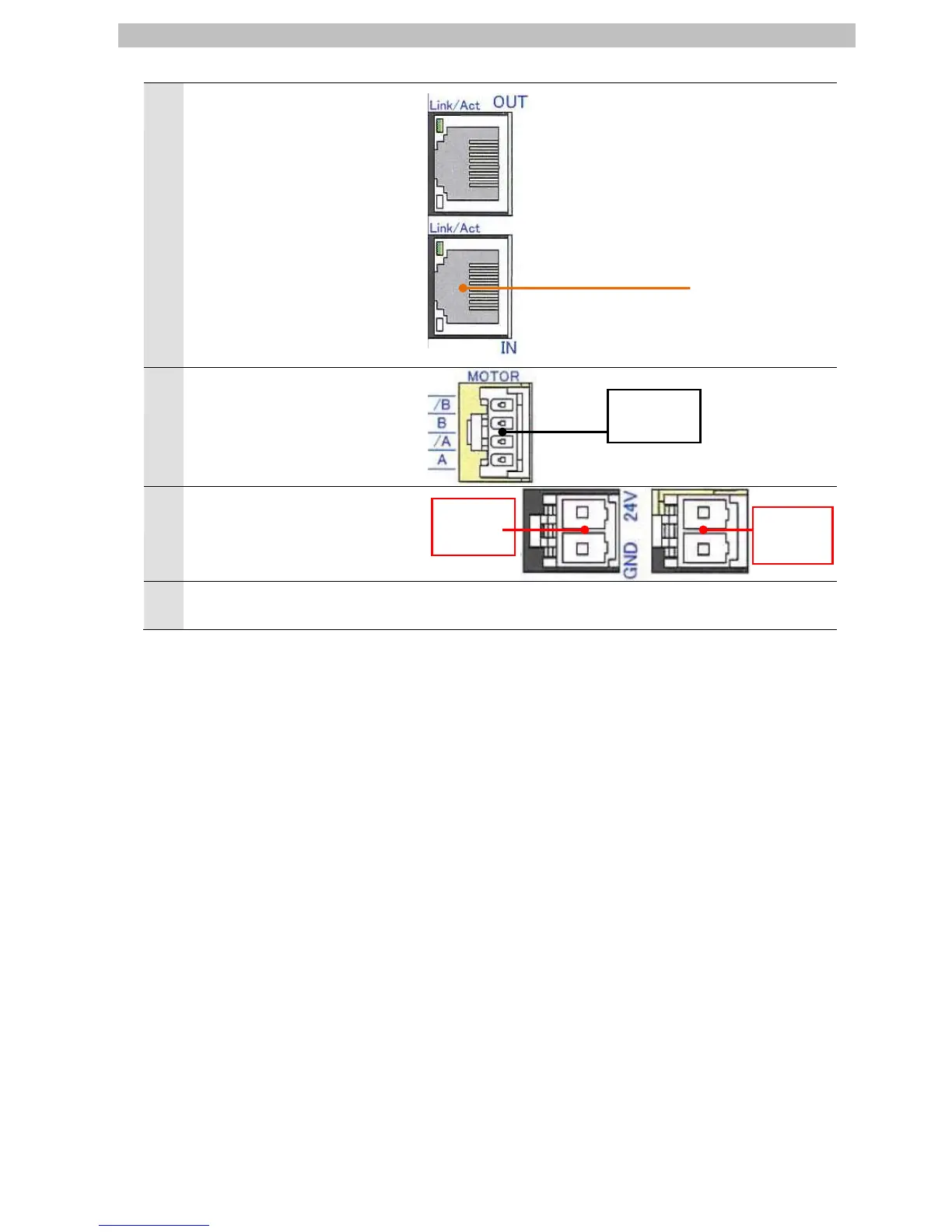

Connect the Ethernet cable to
the Communication IN:
connector.
5
Connect the Stepping motor to
the Connector for motor output.
6
Connect the 24 VDC power
supply to the Slave power
connector and to the Driver
module power connector.
7
Turn ON the 24 VDC power
supply.
Ethernet cable
24 VDC
power
supply
Connect to
Stepping
motor
24 VDC
power
supply

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
