Omron ns series Setup Manual

Appendix 6 Preparing Cables for Computer
Connection
Appendix 6 Preparing Cables for Computer
Connection
Refer to the following information when preparing the CX-Designer connecting cables.

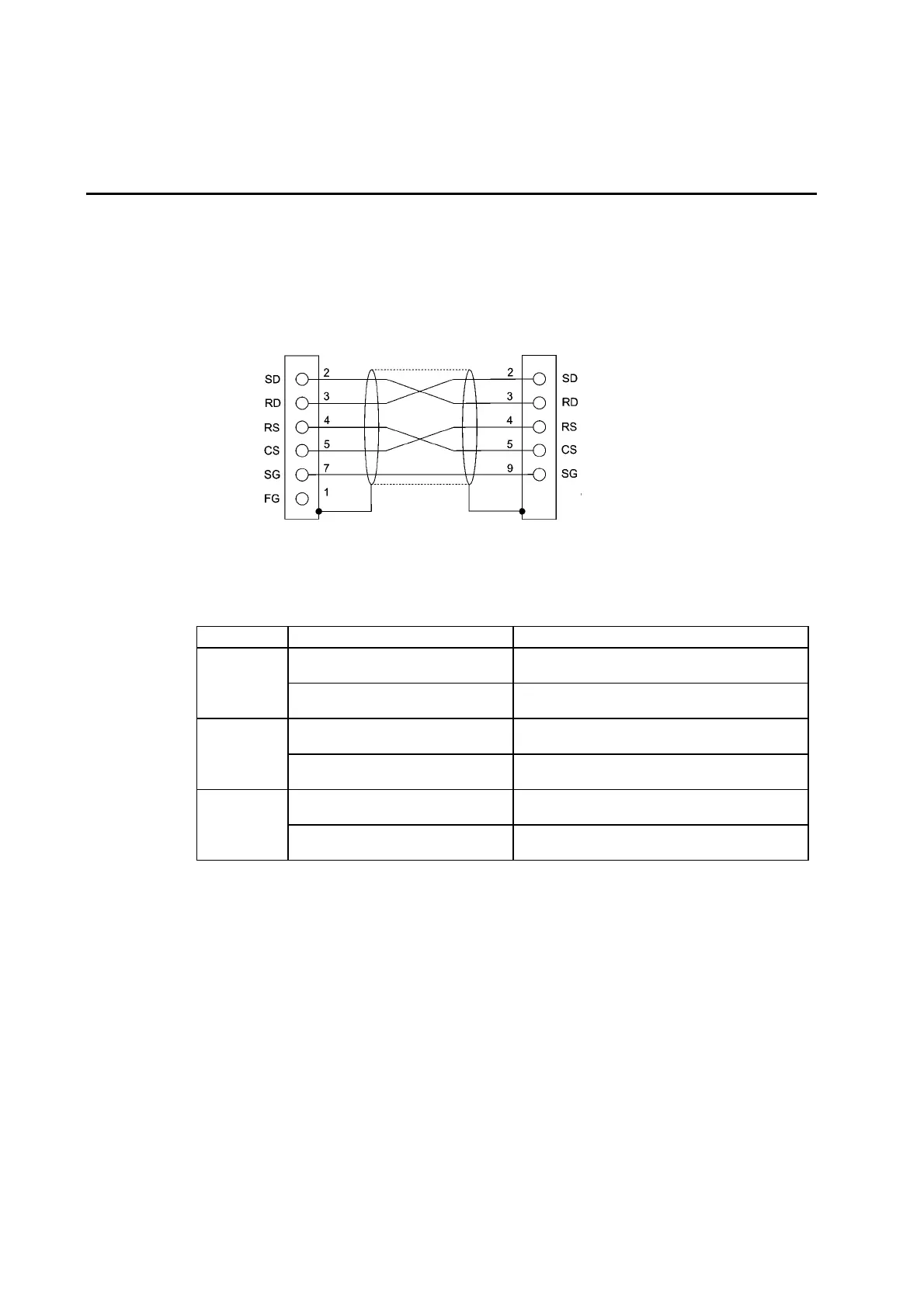

A-6-1 Connecting Cable Assembly
Wire the RS-232C connector to the DOS or 98-NX computer according to the type, as
follows:
• 25-pin Connector
Computer
Connector hood
Shield
PT serial port
Connector hood
Use the following products to assemble the connecting cable.
Name Model Details
XM2D-2501 25-pin type
Manufactured by OMRON (computer side)
Connector
XM2A-0901 9-pin type
Manufactured by OMRON (PT side)
XM2S-2511 25-pin type
Manufactured by OMRON (computer side)
Connector
hood
XM2S-0911 9-pin type, mm screws
Manufactured by OMRON (PT side)
AWG28 × 5P IFVV-SB Multiconductor shielded cable
Manufactured by Fujikura Densen.
Cable
CO-MA-VV-SB 5P × 28AWG Multiconductor shielded cable
Manufactured by Hitachi Densen.
A-37

Omron ns series Specifications

General

Backlight	LED
Power Supply	24 VDC
Display Type	TFT LCD
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Interface	Ethernet, USB
Memory	Varies by model
Operating Temperature	0 to 50°C
Protection Level	IP65 (front panel)
Storage Temperature	-20 to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s²
Power Consumption	Varies by model
