3-4 Connecting to Bar Code Readers
3-4 Connecting to Bar Code Readers
Connecting a Bar Code Reader to the PT allows bar code data to be read as character
strings in the character string input areas.
For details on methods for inputting character strings from a Bar Code Reader, refer to 3-6
Inputting Numeral and Character Strings in the Programming Manual.
3-4-1 Connection Methods

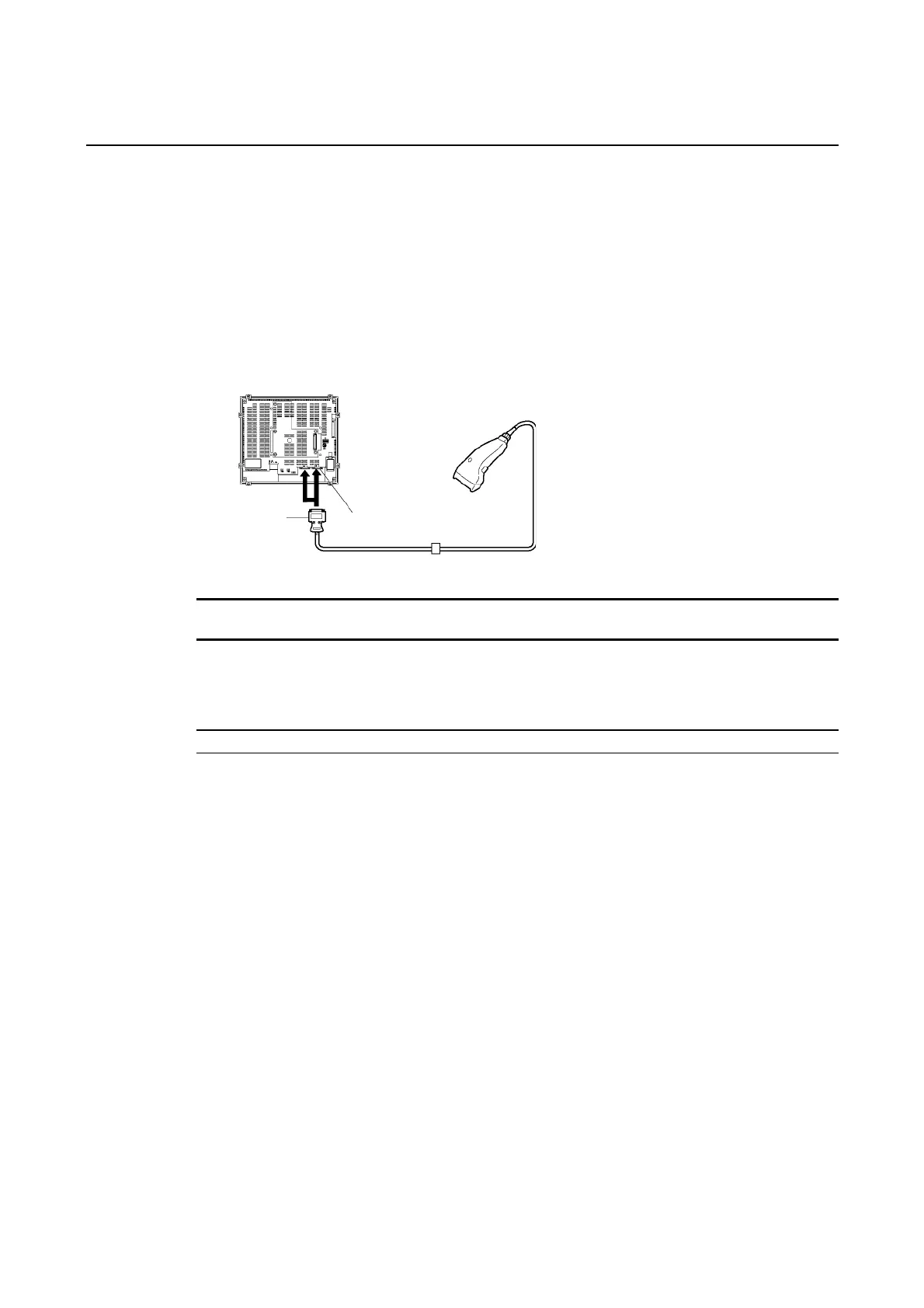

Connect the Bar Code Reader to either serial port A or B of the PT as shown in the following
diagram.
PT
Bar Code Reader
9-pin connector
Serial port A or B
(RS-232C, 9-pin)
Connecting cable Bar Code Reader cable
Note Always turn OFF the power to the Bar Code Reader and the PT before connecting or discon-
necting cables.
Prepare the connecting cables, referring to Appendix 8 Preparing Connecting Cables for Bar
Code Readers.
Reference
Bar Code Readers cannot be connected to both serial ports A and B at the same time.
3-14

Omron ns series Specifications

General

Backlight	LED
Power Supply	24 VDC
Display Type	TFT LCD
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Interface	Ethernet, USB
Memory	Varies by model
Operating Temperature	0 to 50°C
Protection Level	IP65 (front panel)
Storage Temperature	-20 to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s²
Power Consumption	Varies by model
