2-2 Part Names and Functions

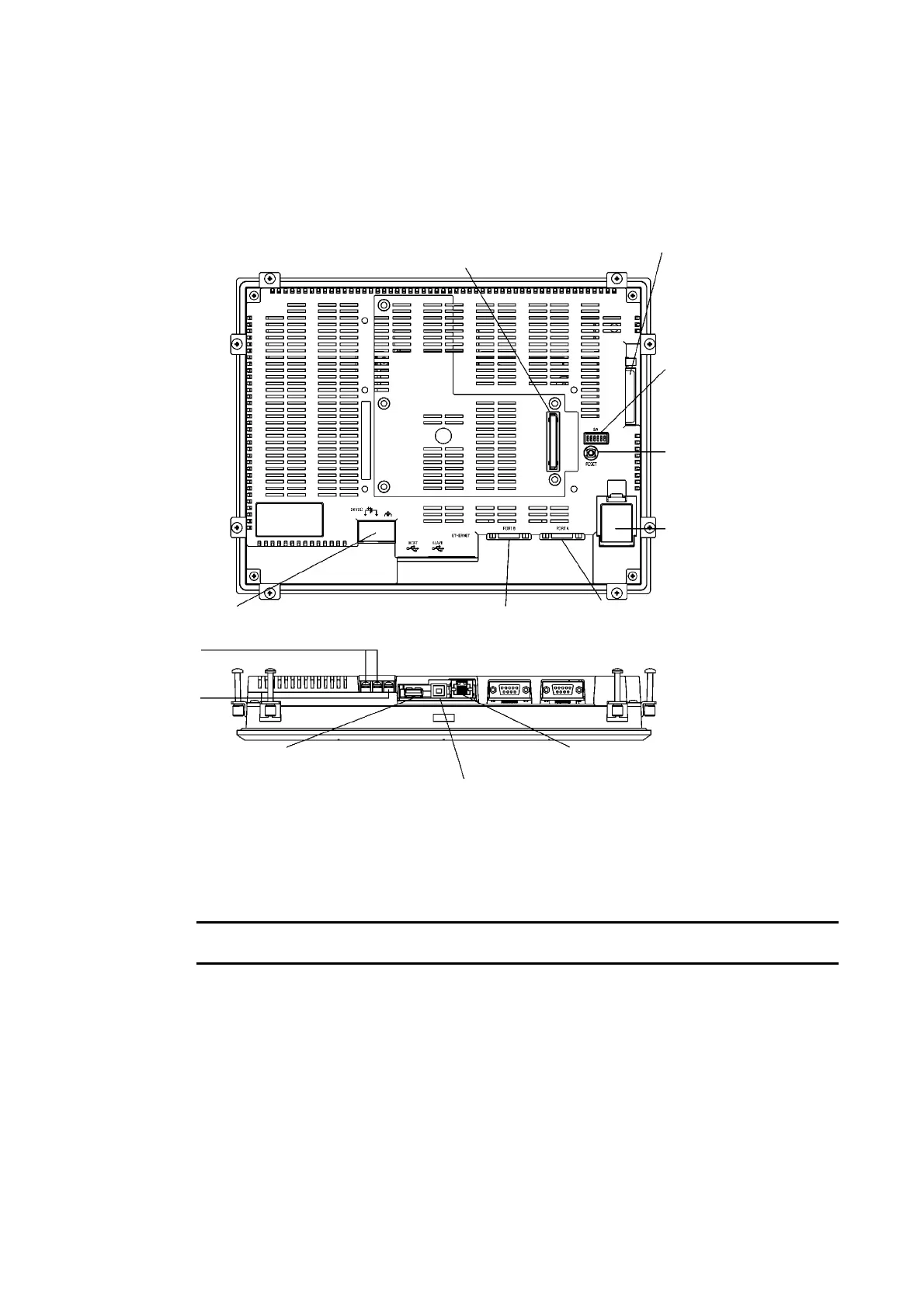

NS12/NS10 Rear Panel Switches
Expansion Interface Connecto
r
Used to mount the Video Input
Unit or the Controller Link
Interface Unit.
Reset Switch
Used to initialize the PT.
The status of screen data,
other registered data, and
the system menu, however,
will not change.
Serial Port A Connector
Used to connect the host, CX-Designer, and
Bar Code Reader. Uses an RS-232C 9-pin
connector.
Battery Cove
r
The battery is installed
underneath the cover.
Ethernet Connecto
r
Used to connect the Ethernet cable.
Uses a 10Base-T/100Base-T 8-pin
modular plug.
DIP Switch
Used to set the settings for
transmitting data using the
Memory Card.
Memory Card Connecto
r
Used to connect the
memory card for storing
and transmitting screen
data, log data, and system
programs.
Serial Port B Connector
Used to connect the host, CX-
Designer, and Bar Code Reader.
Uses an RS-232C 9-pin
connector.
USB Slave Connecto
r
This is a USB Type B connector.
Refer to 3-3-2 Connecting via
USB.
USB Host Connecto
r
Used to connect to printers. It
is a USB Type A connector.
FG Terminal
Used to prevent
malfunctions due to
noise interference.
Main Circuit DC
Input Terminals
Used to connect
the power supply.
Power Input Terminal Block Cove
r
Covers the power input terminal block.
Note
Confirm system safety before turning the power ON/OFF or restarting. Otherwise the system
may operate unpredictably.
