Omron ns series - Changing the Host (PLC); Selecting the PLC to Monitor

3-8 Installing the Controller Link Interface Unit

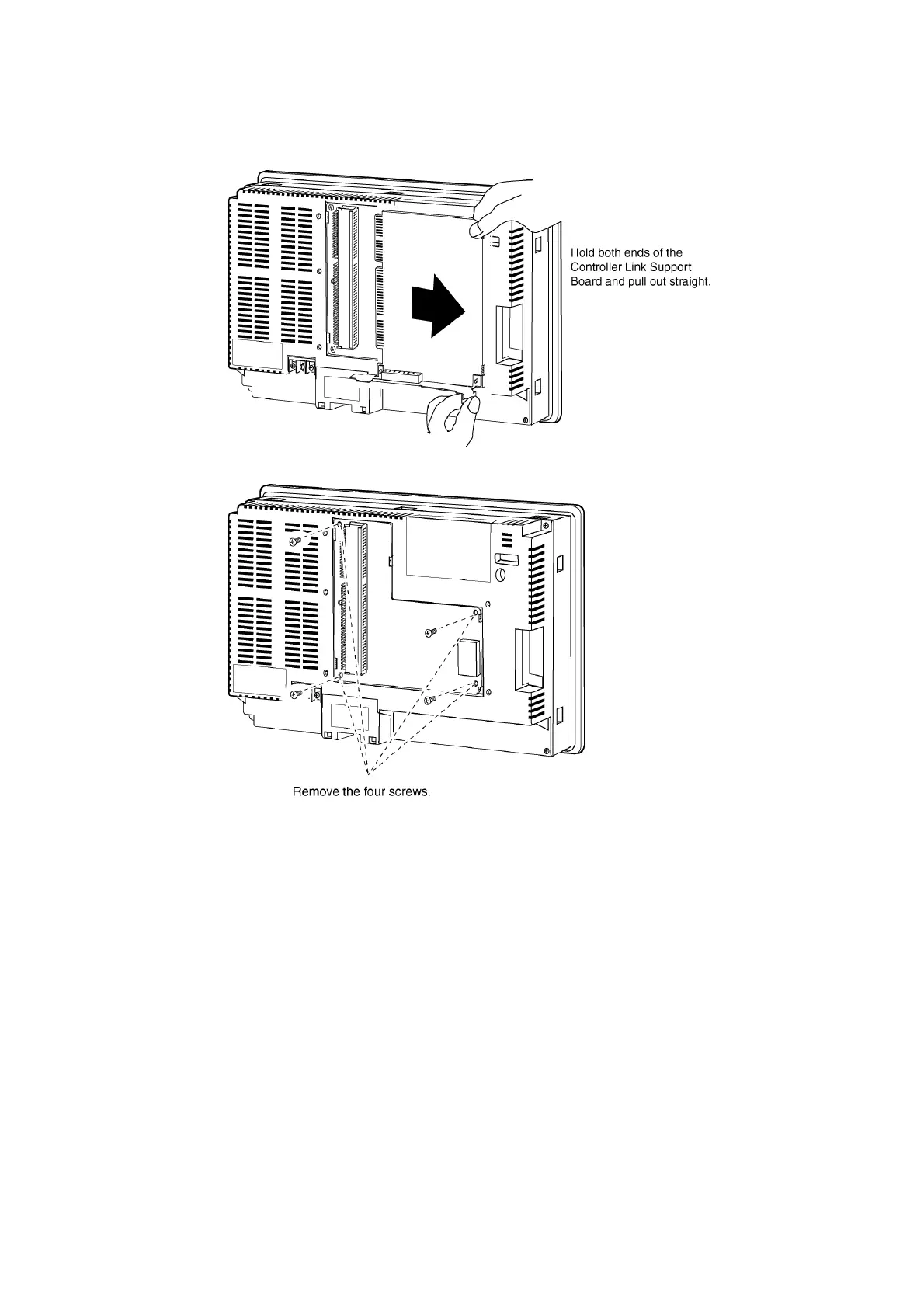

2. Disconnect the Controller Link Support Board from the connector conversion board. Hold
both ends of the Controller Link Support Board and pull out straight.
3. Remove the screws from the Connector Conversion Board.
3-48
