8
Connecting to a C-series Host Link Unit
C200H/C200HS/C200HE(-Z)E/C200HG(-Z)E/C200HX(-Z)E Rack-mounted type: C200H-LK201-V1

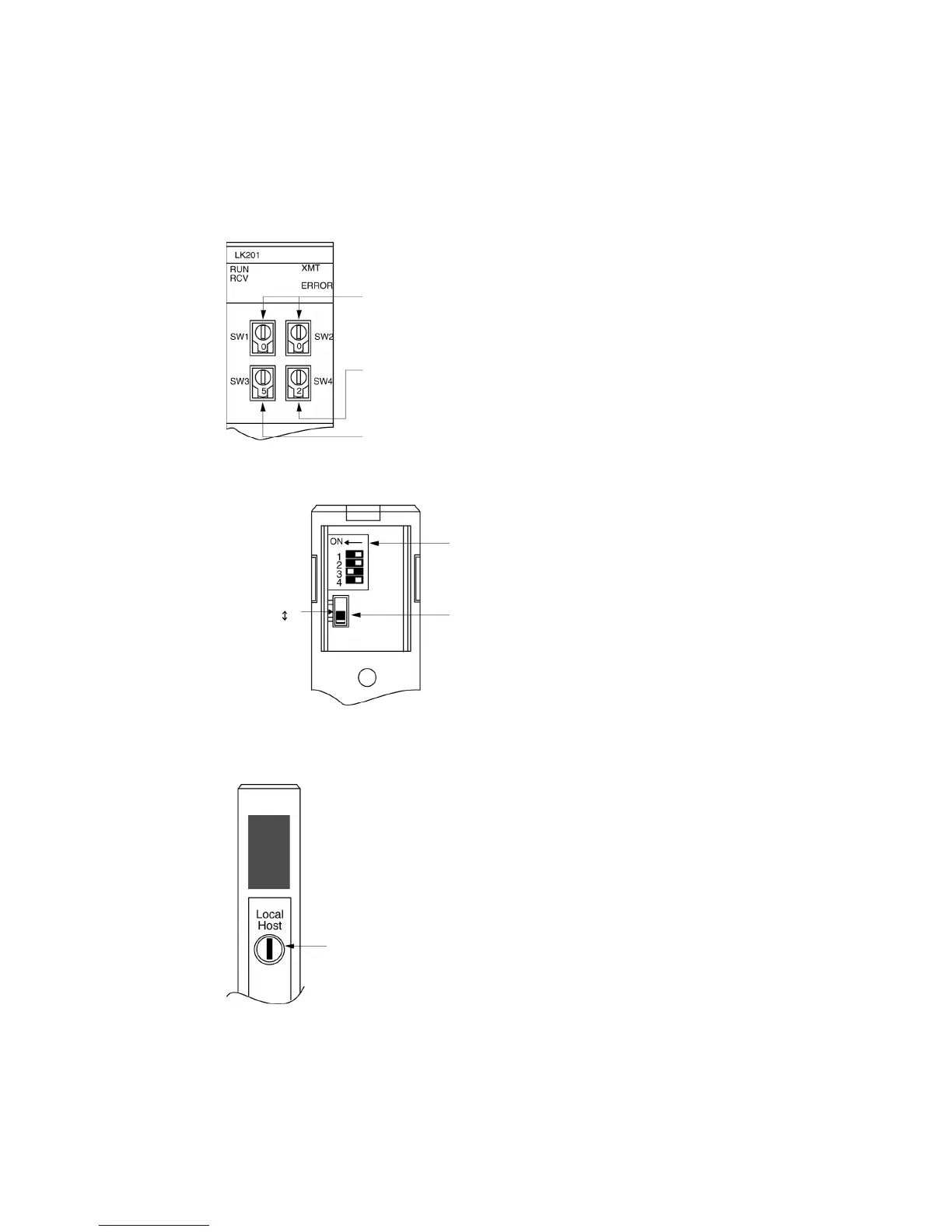

Setting the Front Switches
Set each switch with a flat blade screwdriver so that the values or symbols in the setting
value window agree with the following.
• Unit # (SW1, SW2)
Set these switches to 0.
• Command level, parity, and transfer code (SW4)
Set this switch to 2.
• Communications speed (SW3)
Set this switch to 5 to select 9600 bps.
Set this switch to 6 to select 19200 bps.
Setting the Rear Switches
• 1-to-1/1-to-N selection (DIP switch)
Set #3 to ON.
• CTS selection (selector switch)
Set this always to 0 V (ON).
CTS selector switch
External
0 V (ON)
C1000H/C2000H Rack-mounted type: C500-LK201-EV1
Setting the Front Switches
• Mode control (key switch)
Set this to host link.
To Next Page
