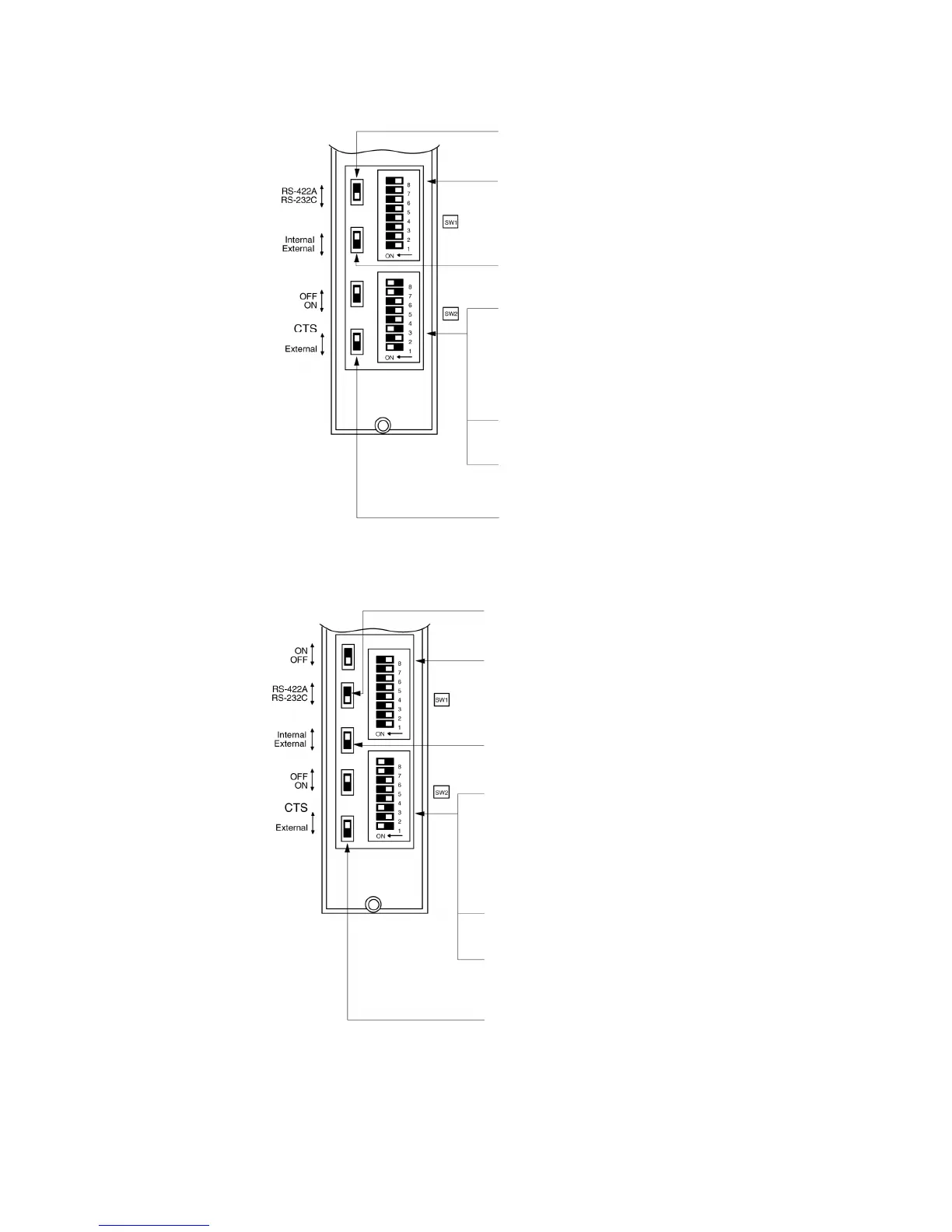

Setting the Rear Switches
• I/O port selection (selector switch)
Set this to RS-232C.
• Unit # (DIP SW1)
Set SW1-1 to SW1-5 to OFF (0).
• Synchronization (selector switch)
Set this to Internal.
• Communications speed
(DIP SW2-1 to SW2-4)
Set these switches to 0010 to select
19,200 bps.
Set these switches to 1010 to select
9,600 bps.
(0: OFF 1: ON)
• 1-to-1/1-to-N selection (DIP SW2-6)
Set SW2-6 to OFF (0) (1-to-N).
• Command level (DIP SW2-7, SW2-8)
Set these switches to ON (1).
(
Levels 1
,
2
,
and 3 are enabled.
)
• CTS selection (selector switch)
Set this always to 0 V (ON).
I/O
p
ort
S
y
nchronization
Terminato
r
0 V
C1000H(F)/C2000H Rack-mounted type: C500-LK203
Setting the Rear Switches
• I/O port selection (selector switch)
Set this to RS-232C.
• Unit #, parity, and transfer code
(DIP SW1-1 to SW1-7)
Set SW1-1 to SW1-7 to OFF (0).
• Synchronization (selector switch)
Set this to Internal.
• Communications speed
(DIP SW2-1 to SW2-4)
Set these switches to 0010 to select
19,200 bps.
Set these switches to 1010 to select
9,600 bps.
(0: OFF 1: ON)
• 1-to-1/1-to-N selection (DIP SW2-6)
Set SW2-6 to OFF (0) (1-to-N).
• Command level (DIP SW2-7, SW2-8)
Set these switches to ON (1).
(
Levels 1
,
2
,
and 3 are enabled.
)
• CTS selection (selector switch)
Set this always to 0 V (ON).
I/O
p
ort
S
y
nchronization
Terminator
5V su
pp
l
y
0
V
