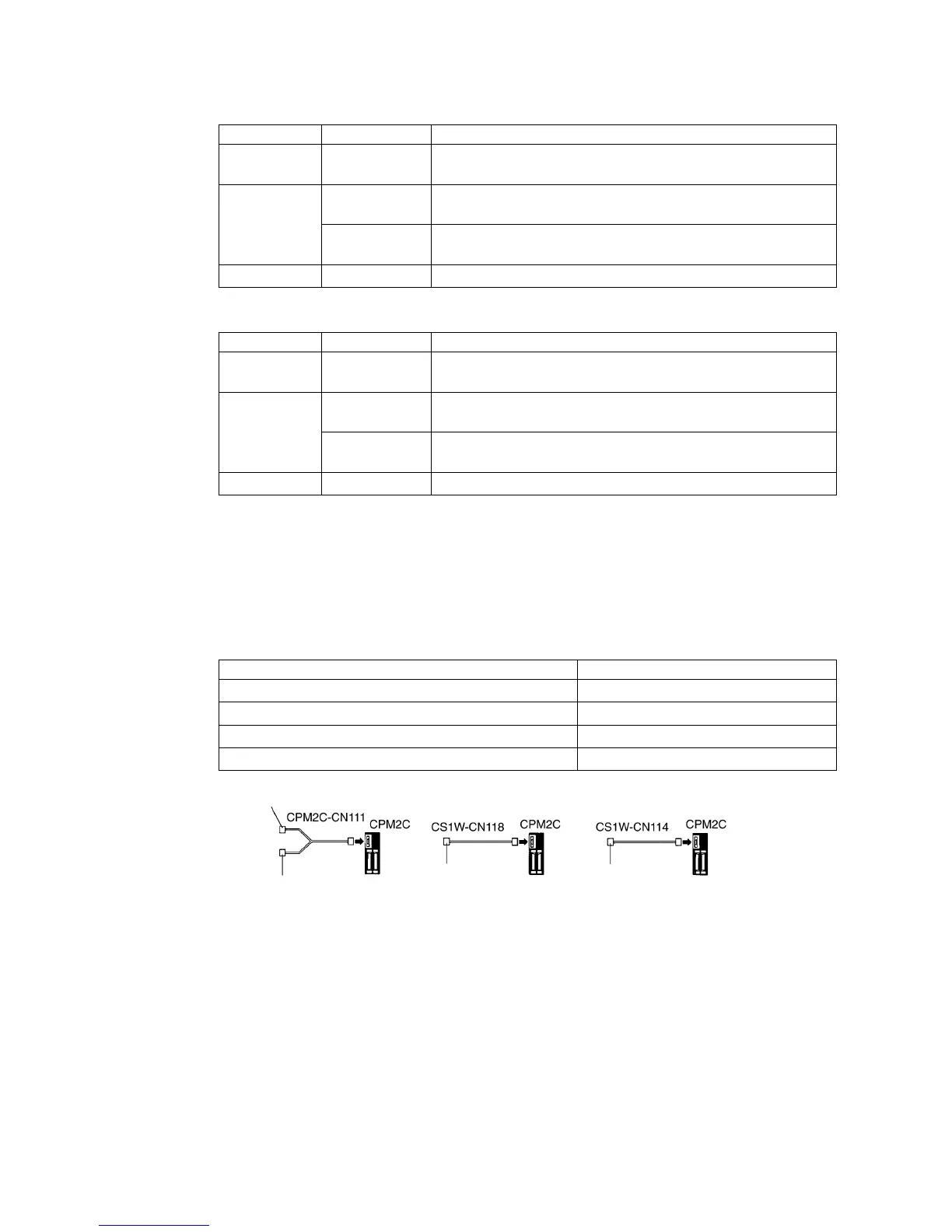

C200HX/HG/HE(-Z)E: Board Port B Connection
Word Writing Value Settings
DM6550 0001 Host link mode, no CTS control, communications conditions
set by the contents of DM
0303 Data length 7 bits, 2 stop bits, even parity, communications
speed: 9600 bps
DM6551
0304 Data length 7 bits, 2 stop bits, even parity, communications
speed: 19200 bps
DM6553 0000 Unit # 00
CPM1 Connection
Word Writing Value Settings
DM6650 0001 Host link mode, communications conditions set by the
contents of DM area
0303 Data length 7 bits, 2 stop bits, even parity, communications
speed: 9600 bps
DM6651
0304 Data length 7 bits, 2 stop bits, even parity, communications
speed: 19200 bps
DM6653 0000 Unit # 00
Connecting to a CPM2C
The CPM2C PLCs do not have the same kind of port connectors found on CS-series PLCs.
The CPM2C’s communications port handles both RS-232C and peripheral port connections
which are divided internally. Therefore, when using the CPM2C, it is necessary to select
RS-232C or peripheral port connections, according to the kind of cable and port (on the
cable) used, as shown in the following table. Refer to the CPM2C Operation Manual for more
details.
Port connecting to PT PLC Setup
RS-232C port (D-Sub 9-pin) of CPM2C-CN111 Built-in RS-232C port settings
Peripheral port of CPM2C-CN111 Peripheral port settings
RS-232C port (D-Sub 9-pin) of CS1W-CN118 Built-in RS-232C port settings
Peripheral port of CS1W-CN114 Peripheral port settings
Peripheral port
RS-232C port
(D-Sub 9-pin, female)
RS-232C port
(D-Sub 9-pin, female)
Peripheral port
Setting the DIP Switches of a C200HX/HG/HE(-Z)E, CQM1 or CQM1H
When using a C200HX/HG/HE(-Z)E, CQM1, or CQM1H the DIP switches on the front panel
must be set as shown below in order to make the settings in the PLC Setup area (data
memory) effective.
