3-8 Installing the Controller Link Interface Unit

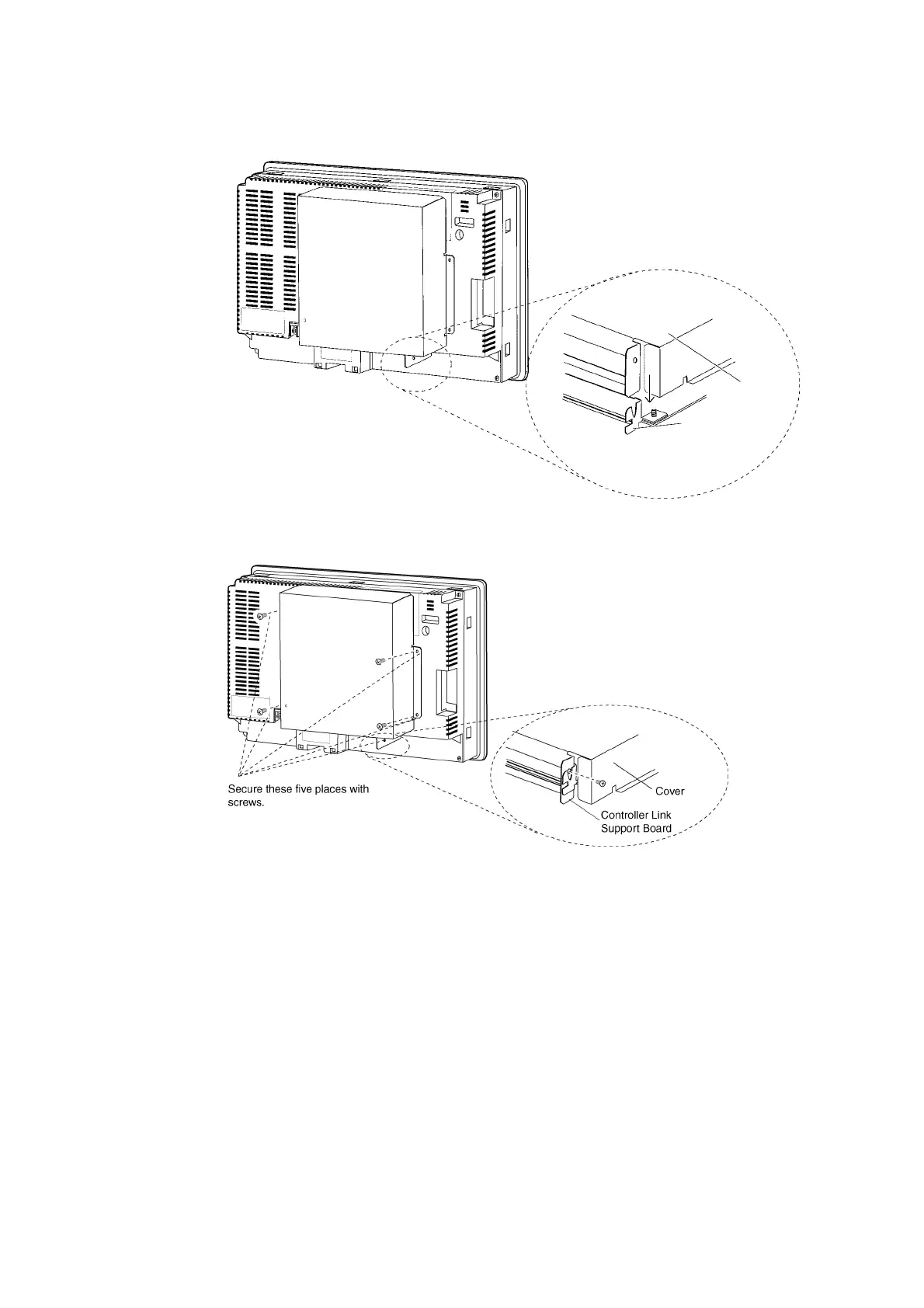

4. Mount the cover to the PT.
Cover
Controller Link
Support Board
(Underside view)
5. Secure the five places shown below with screws.
