Omron NS8-TV10 V1 Series User Manual

6-8 Special Screens
6-8-5 Communication Test
This function checks whether communications are enabled, by performing simple communi-
cations.
Display the Communication Test Screen by using operations from the Special Screen Tab
Page in the System Menu, as follows:

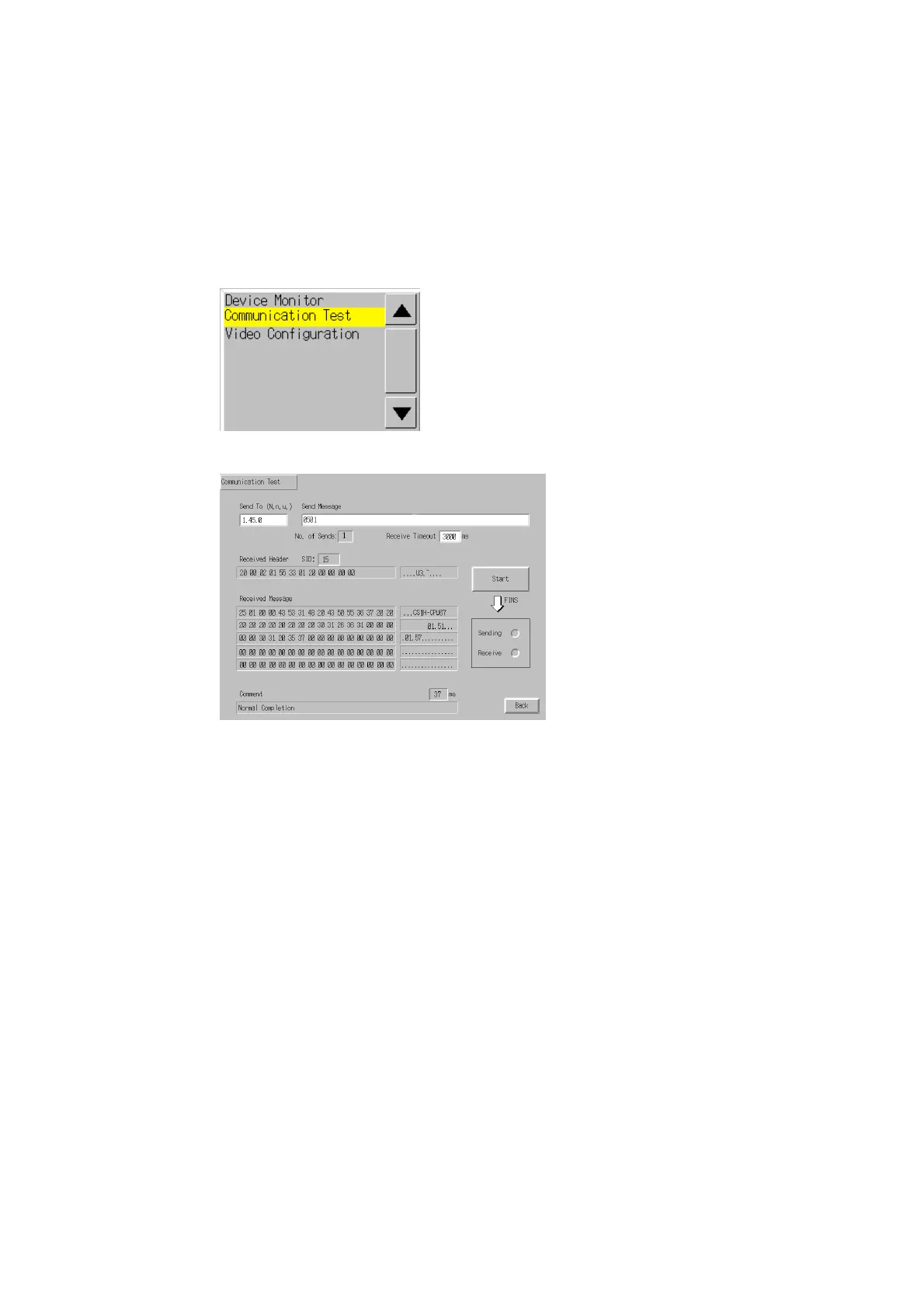

1. Select Communication Test from the Special Functions List Box, and press the START Button.
2. Press the Communication Test Button to switch to the Communications Test Screen.
3. Set each of the setting items, as follows:
6-48

Omron NS8-TV10 V1 Series Specifications

General

Display Size	8.4 inches
Display Type	TFT LCD
Resolution	800 x 600 pixels
Touch Type	Analog Resistive
Supply Voltage	24 V DC
Protection	IP65 (front panel)
Brightness	400 cd/m²
Backlight Life	50, 000 hours
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Weight	1.5 kg
Communication Ports	Ethernet, USB, RS-232C, RS-422/485
Humidity	10 to 90% (non-condensing)
Vibration Resistance	10 to 57 Hz, amplitude 0.075 mm; 57 to 150 Hz, 9.8 m/s² (1 G)
Shock Resistance	147 m/s² (15 G), 3 times in each of 3 axes
