Appendix DMaking the Cable
198

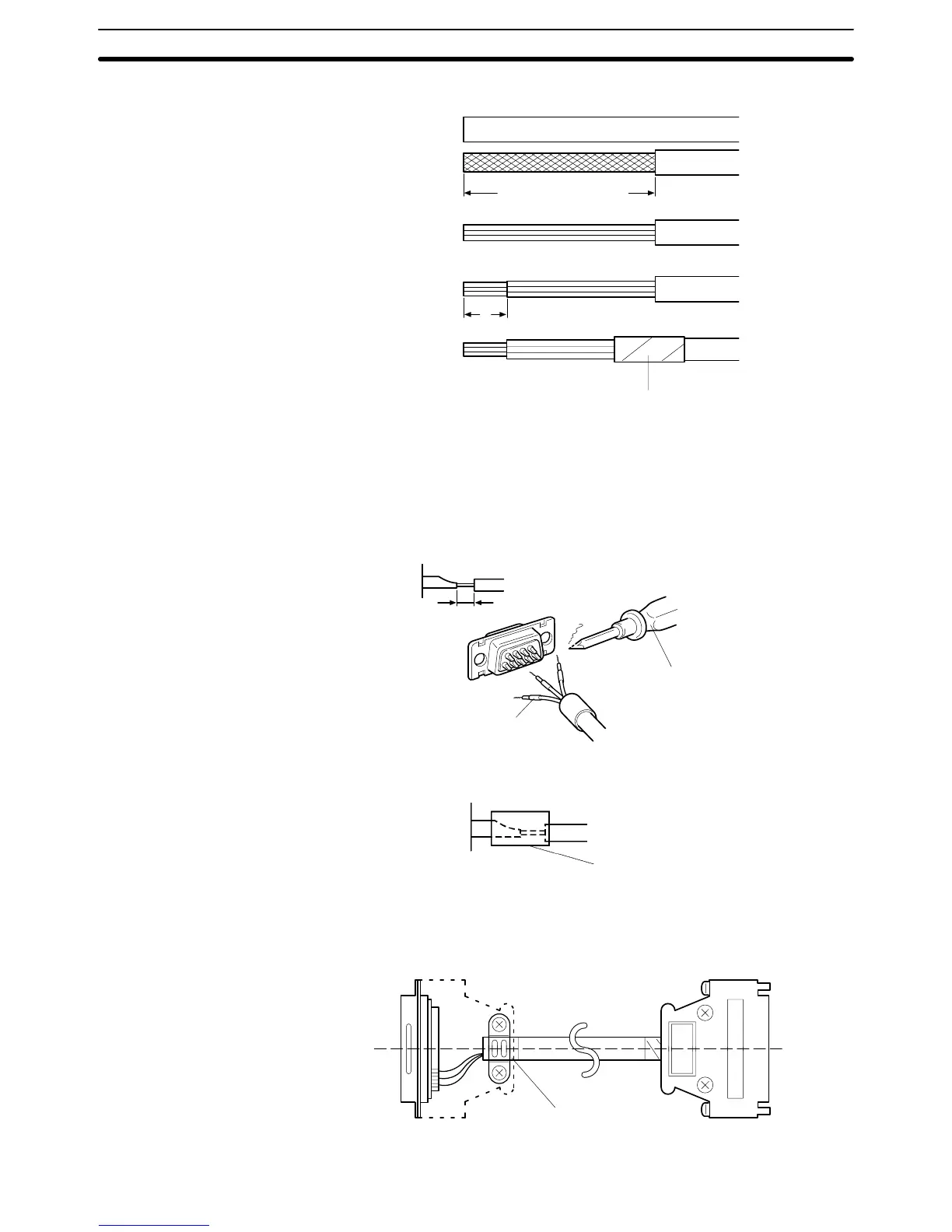

5. Wrap vinyl tape over the cut off end of the shielding wire.
40
(1.57) (RS-232C)
5
25 (0.98) (RS-422A)
(1)
(2)
(3)
(4)
(5)
Units: mm (inch)
V
inyl tape
(0.19)
Soldering
1, 2, 3... 1. Slide heat-shrink tube over each wire.
2. Pre-solder each wire and connector terminal.
3. Solder each wire to each connector terminal.
Soldering
iron
Heat-shrink tube
(F
, 1.5 mm dia.,
ȏ
= 10 mm)
1 mm
4. Push the heat shrink tube over the soldered joint and heat the tube to shrink it in place.
Heat-shrink
tube
Hood Assembly
Assemble the connector hood as shown below.
Aluminum
foil tape
End connected to FG
End not connected to FG
