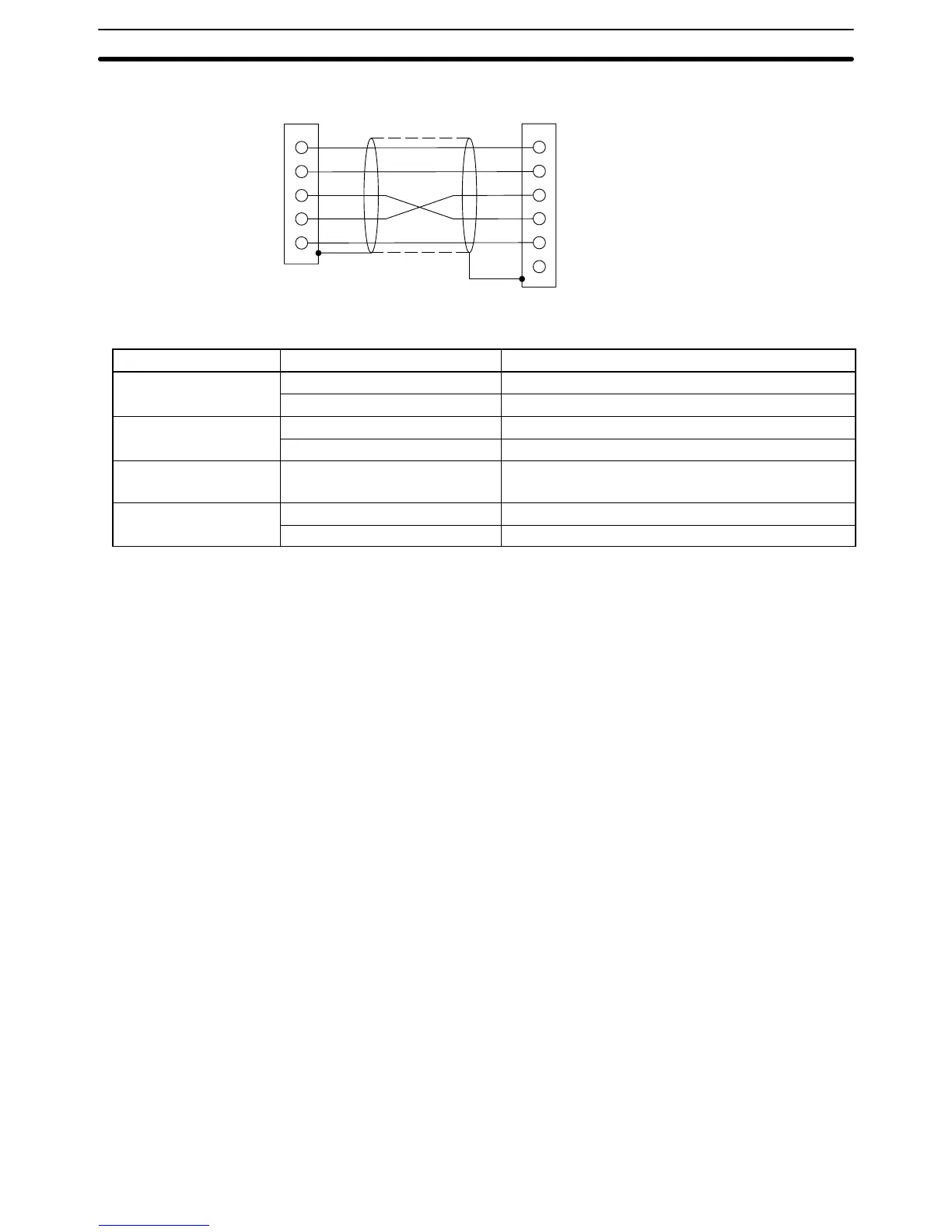

Appendix EMaking the Cable for Connecting a Personal Computer
200
9-pin Connector
RD
SD
RS
CS
SG
Personal
computer Connector for peripheral devices on PT
Shield
Connector hood
2
3
7
8
5
SD
RD
RS
CS
SG
+5 V
2
3
4
5
9
6
Connector hood
Use the following recommended products when making the connecting cable.
Name Model Remarks
Connector XM2D-0901 9-pin, made by OMRON, for personal computer
XM2A-0901 9-pin, made by OMRON, for PT
Connector hood* XM2S-0911 9-pin, mm pitch screw, made by OMRON
XM2S-0913 9-pin, inch pitch screw, made by OMRON
Connector set XM2S-0911-S003 9-pin, made by OMRON, for PT side
Connector and Connector hood
Cable AWG28 5P IFVV-SB Multi-core shielded cable, made by Fujikura Ltd.
CO-MA-VV-SB 5P 28AWG Multi-core shielded cable, made by Hitachi Cable, Ltd.
* One XM2S-0911 (for PT) and either one XM2S-0911 or -0913 (for your personal computer) are needed.
