7 - 17

7 SSI Input Units

NX-series Position Interface Units User’s Manual (W524)

7-6 I/O Refreshing Method Setting

7-6-2 Free-Run Refreshing

Use the following procedure to select Disabled (FreeRun) from the Enable Distributed Clock setting for

the EtherCAT Coupler Unit and use Free-Run refreshing for SSI Input Units that are connected to an

EtherCAT Coupler Unit.

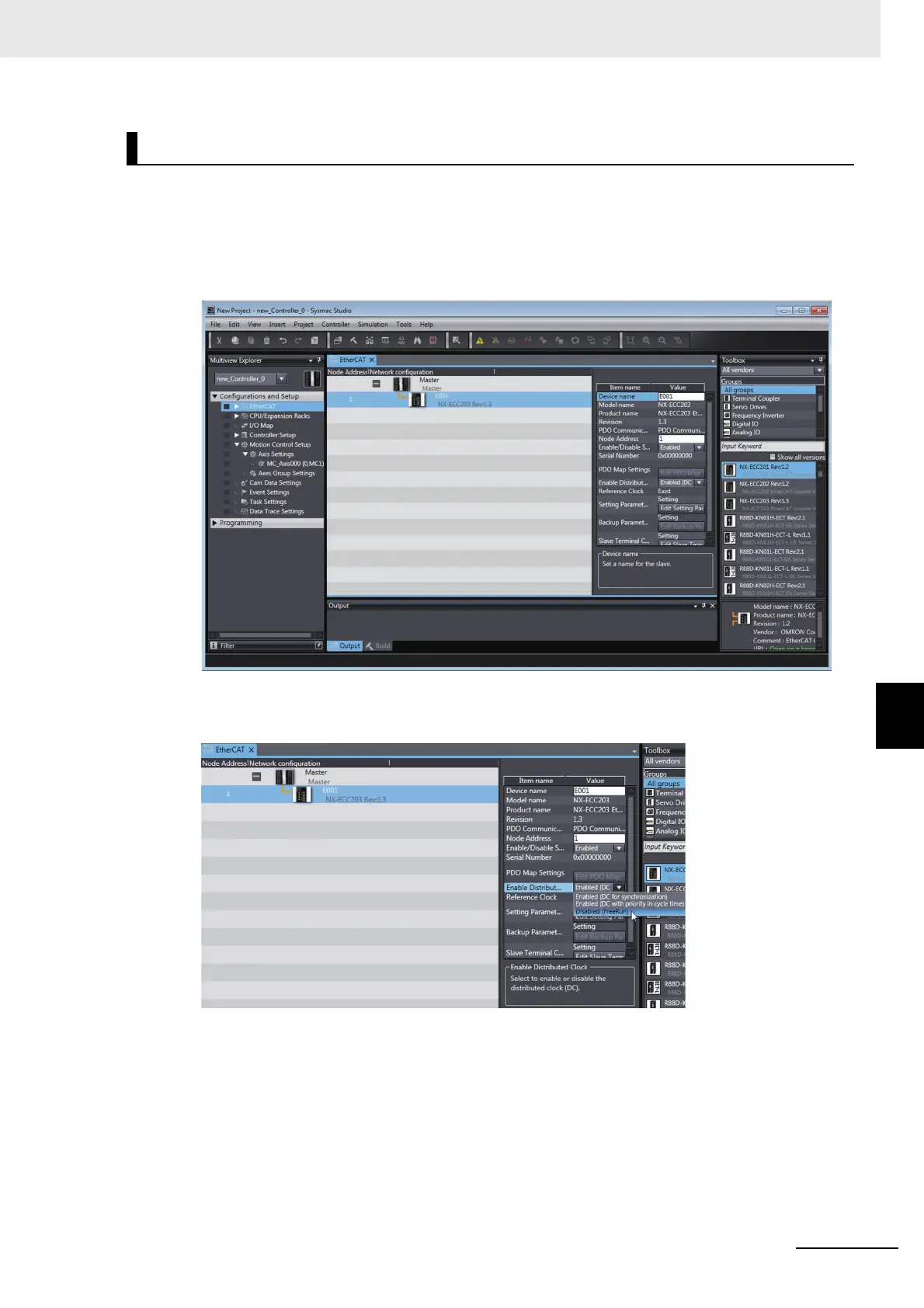

1 Double-click EtherCAT in the Multiview Explorer.

The following tab page is displayed.

2 Click the EtherCAT Coupler Unit under Configurations and Setup.

Change the Enable Distributed Clock setting to Disabled (FreeRun).

As a result, Free-Run refreshing is used.

Setting with the Sysmac Studio
