Unit Versions
NX-series Position Interface Units User’s Manual (W524)
The following information is provided in the notched area on the Unit.
You can use the Production Information on the Sysmac Studio to check the unit versions of the Com-
munications Coupler Unit and NX Units.
An example for an EtherCAT Slave Terminal is given below.
Refer to the user's manual for the connected Communications Coupler Unit for the procedure to con-
firm the unit versions of the Units on any other type of Slave Terminal.
1 Double-click EtherCAT under Configurations and Setup in the Multiview Explorer, and then
double-click the EtherCAT Coupler Unit. Or, right-click the EtherCAT Coupler Unit and select
Edit from the menu.
The Slave Terminal Tab Page is displayed.
You can also display the Slave Terminal Tab Page with any of the following operations.
Double-click EtherCAT under Configurations and Setup in the Multiview Explorer, right-click
the EtherCAT Coupler Unit in the EtherCAT Configuration Edit Tab Page, and select Edit Slave
Terminal Configuration.
Or, select the EtherCAT Coupler Unit on the EtherCAT Configuration Edit Tab Page click the
Edit Slave Terminal Configuration Button.
2 Go online.
3 Right-click the Position Interface Unit and select Display Production Information from the
menu.

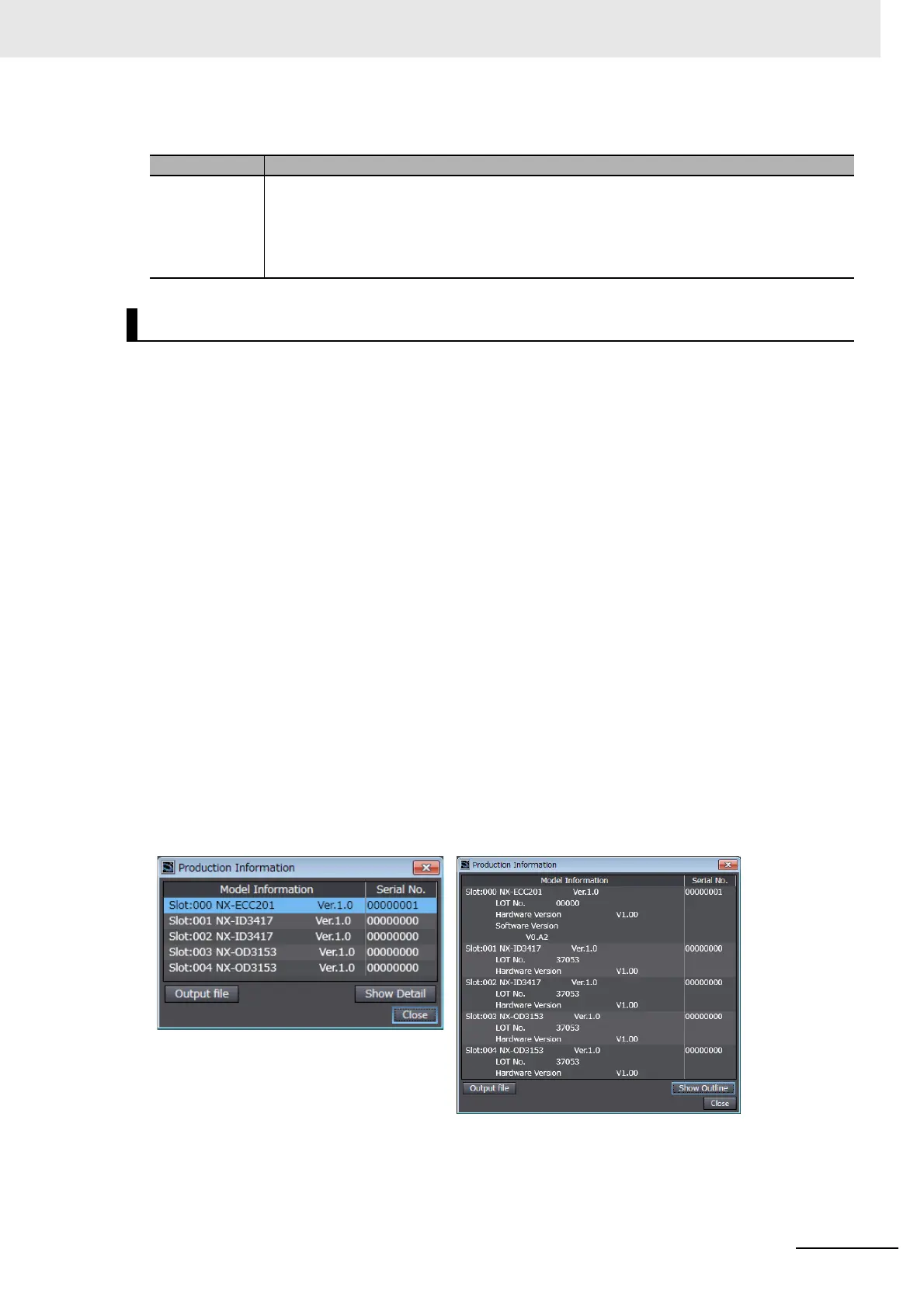

The Production Information Dialog Box is displayed.
In this example, “Ver.1.0” is displayed next to the Unit model.
The following items are displayed.
•Slot number
Name Function
Lot number and
unit version
Gives the lot number and unit version of the Unit.
• DDMYY: Lot number, : Used by OMRON.
“M” gives the month (1 to 9: January to September, X: October, Y: November, Z: December)
•1: Unit version
The decimal portion of the unit version is omitted. (It is provided in the Unit specifications.)
Confirming Unit Versions with the Sysmac Studio
Simple Display
Detailed Display
