Omron NX-EC0112

To Next Page

To Previous Page

Appendices

A - 16

NX-series Position Interface Units User’s Manual (W524)

Circuit layout

Encoder Input

Installation orientation

and restrictions

Installation orientation: 6 possible orientations

Restrictions: There are no restrictions.

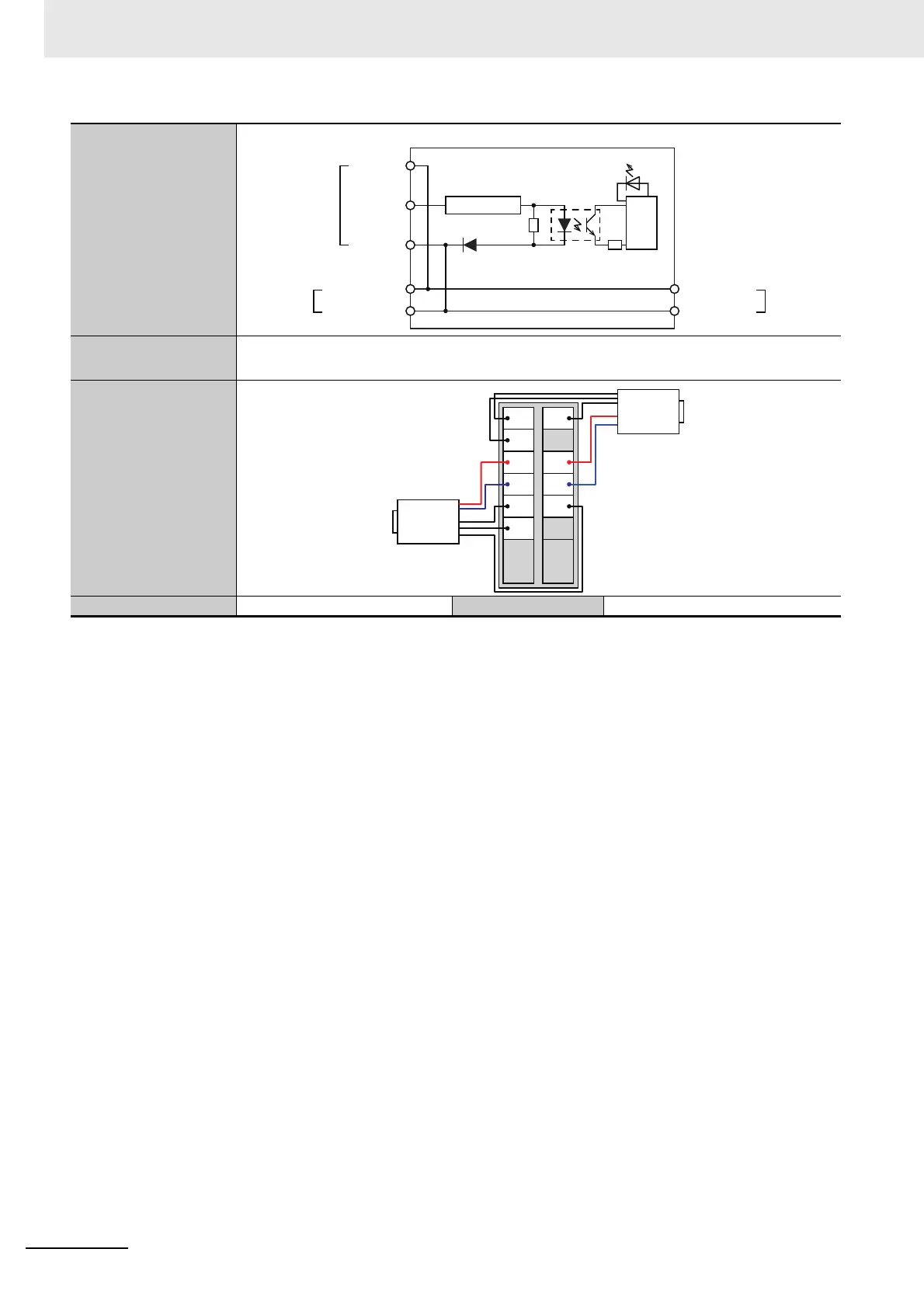

Terminal connection

diagram

Failure detection None Protection None

*1. The I/O refreshing method is automatically set according to the connected Communications Coupler Unit and CPU Unit.

Inter-

nal

cir-

cuits

Current limiter

IOV

A1, B1, Z1

A2, B2, Z2

IOG

I/O power supply +

I/O power supply

−

I/O power supply +

I/O power supply

−

Terminal block

Left-side

NX bus

connector

Right-side

NX bus

connector

Encoder 1

Encoder 2

IOV

IOG

IOV

IOG
