Omron NX Series Network Connection Guide

35
10 Programming Using IO-Link
17

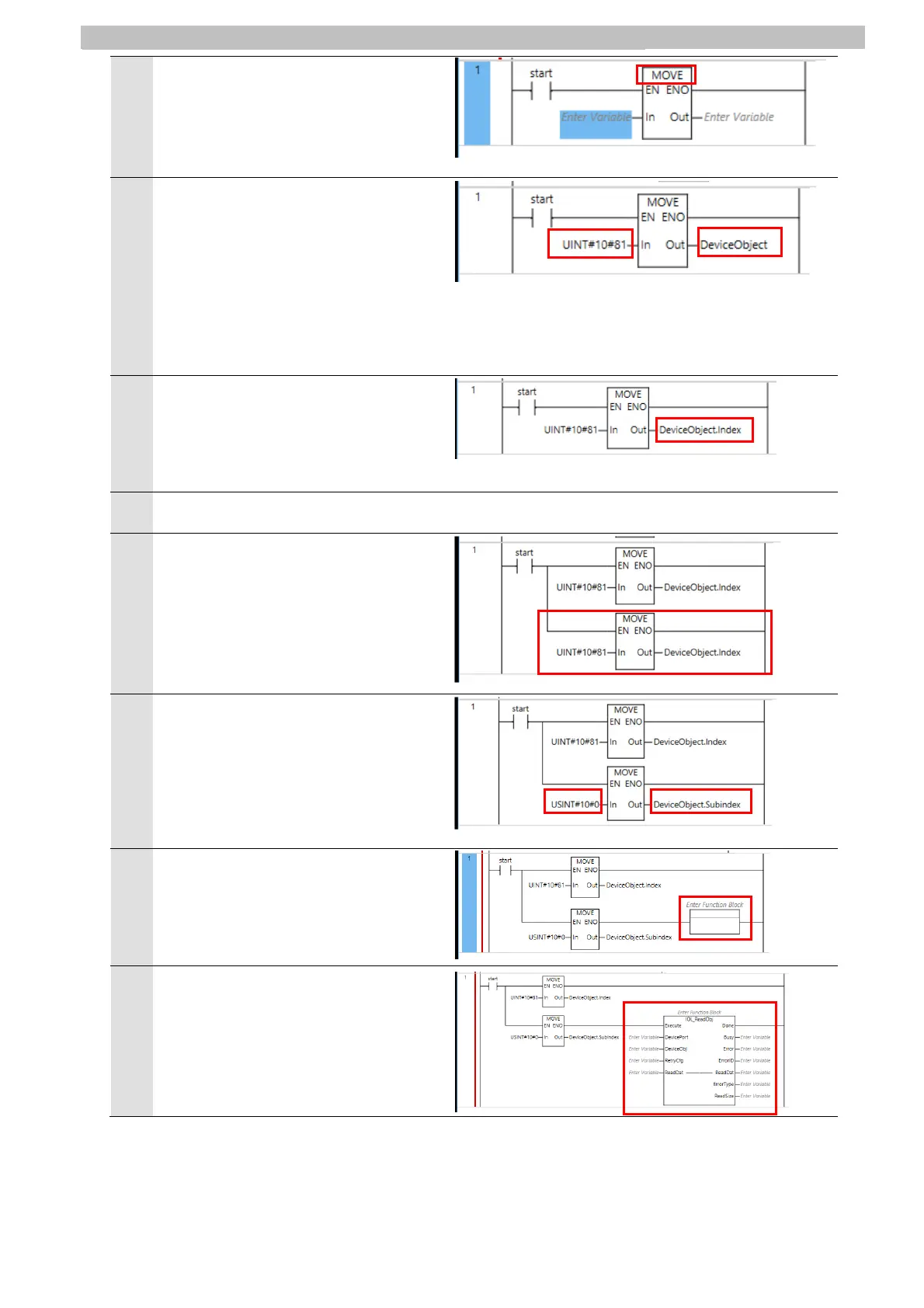

Enter the following function name.
Function name: MOVE
18
Click Enter Variable at In and Out in
the MOVE block, and enter each of
the following variable names.
In:
UINT#10#81
Out:
Variable name: DeviceObject
Data type: _sIOLOBJ_ACCESS
Specify the index No. where the error code of the safety light curtain is stored.
19
Click DeviceObject at Out, and
change to the following variable
name.
Variable name: DeviceObject.Index
20
Right-click the MOVE block, and click Copy.
21
Right-click the MOVE block, and click
Paste.
The block is reused for creating the
block that specifies the Sub-Index No.
where the error code of the safety
light curtain is stored.
22
Change In and Out of the MOVE
block on the second tier to each of
the following.
In: USINT#10#0
Out: DeviceObject.Subindex
23
Right-click the MOVE block on the
second tier, and click Insert Function
Block.
24
Click Enter Type Name, and enter
the following function block name.
Function block name: IOL_ReadObj

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
