Omron NX Series Network Connection Guide

39
10 Programming Using IO-Link
6

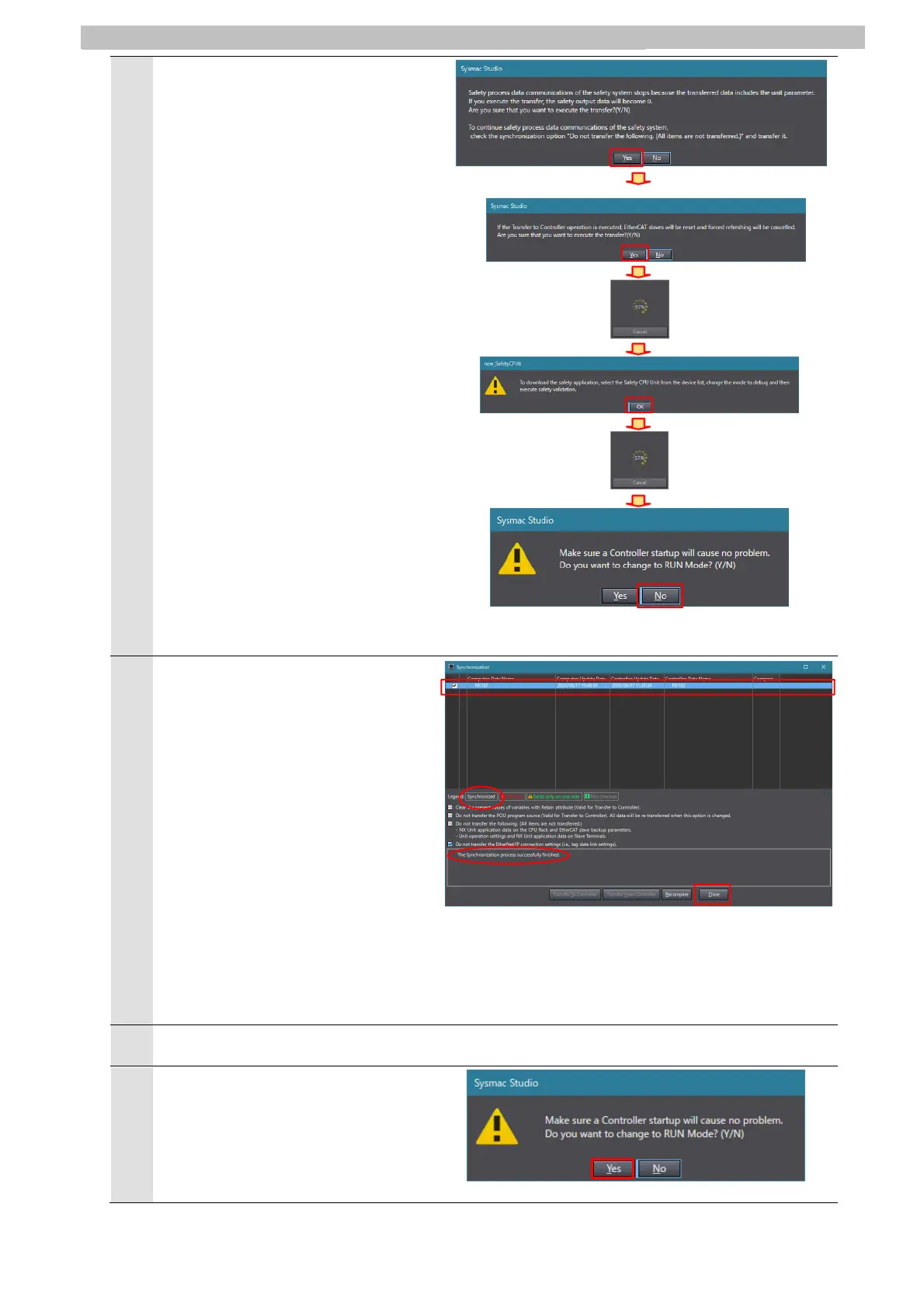

The dialog box on the right is
displayed. Confirm that there are no
problems, and click Yes.
The dialog box on the right is
displayed. Confirm that there are no
problems, and click Yes.
The synchronization in progress
window is displayed.
The dialog box on the right is
displayed. Confirm that there are no
problems, and click OK.
The synchronization in progress
window is displayed.
The dialog box on the right is
displayed. Confirm that there are no
problems, and click No.
Note: Do not return the mode to Run
Mode....
7
Make sure that the color of the text of
the synchronized data is the same
color as the text at Synchronized
displayed in the legend at the right,
that the message The
Synchronization process
successfully finished. is displayed,
and click Close.
Note: That the color of the text of
the synchronized data is the
same color as the text at
Synchronized indicates that
Sysmac Studio project data
matches the data on the
controller.
Note: If synchronization fails, check
the wiring, and repeat the
procedure from Step 35.
8
Select Controller - Mode - Run Mode....
9
The dialog box on the right is
displayed. Confirm that there are no
problems, and click Yes.
Note: The mode switches to Run
Mode....

Omron NX Series Specifications

General

Programming Languages	Ladder, Structured Text, Function Block Diagram, Sequential Function Chart
Communication Ports	Ethernet, USB, RS-232C, RS-485
Memory Capacity	Varies by model
Program Memory	Varies by model
Data Memory	Varies by model
Operating Temperature	0°C to 55°C
Power Supply	24 VDC
Ethernet Ports	1 or 2 ports (depending on model)
USB Ports	1 or 2 ports (depending on model)
Dimensions	Varies by model
Weight	Varies by model
