Omron NX102 series Network Connection Guide

7．IO-Link Connection Procedure
27
9

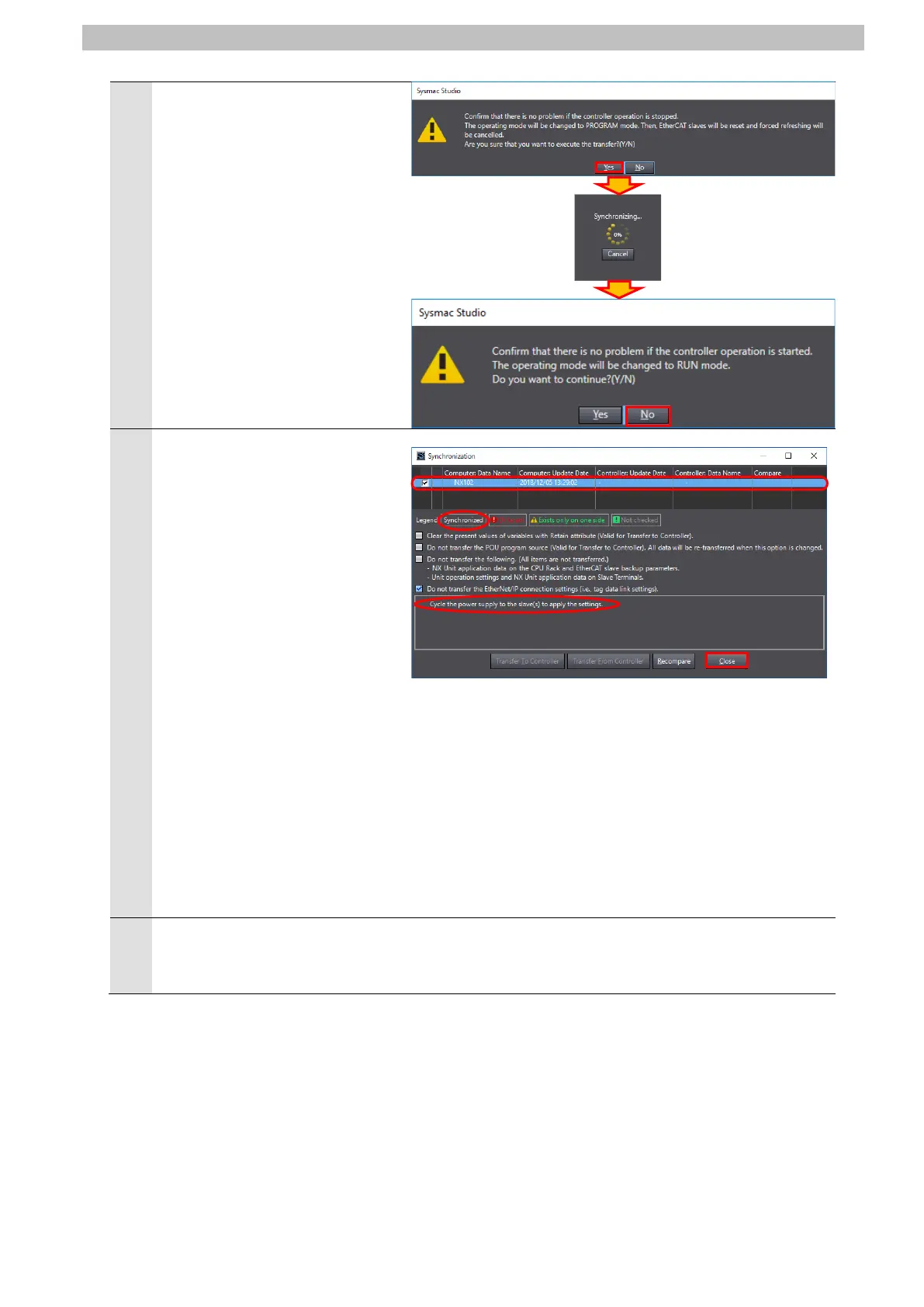

The dialog box on the right is
displayed. Confirm that there is
no problem, and click Yes.
A screen is displayed stating
"Synchronizing".
The dialog box on the right is
displayed. Confirm that there is
no problem, and click No.
*Do not return to RUN mode.
10
As shown in the figure on the
right, the font color that is used
to display the synchronized data
changes to the same color as
the one used to specify
"Synchronized". Check that a
message is displayed stating
"Cycle the power supply to the
slave(s) to apply the settings".
Click Close.
*When the Sysmac Studio
project data matches the
Controller data, the
synchronized data will have the
same font color as the one
used to specify
"Synchronized".
*If the synchronization fails,
check the wiring and repeat
from step 1.
11
To reflect the settings, turn OFF
Unit power supply to Slave
Terminal, then turn it back ON.
