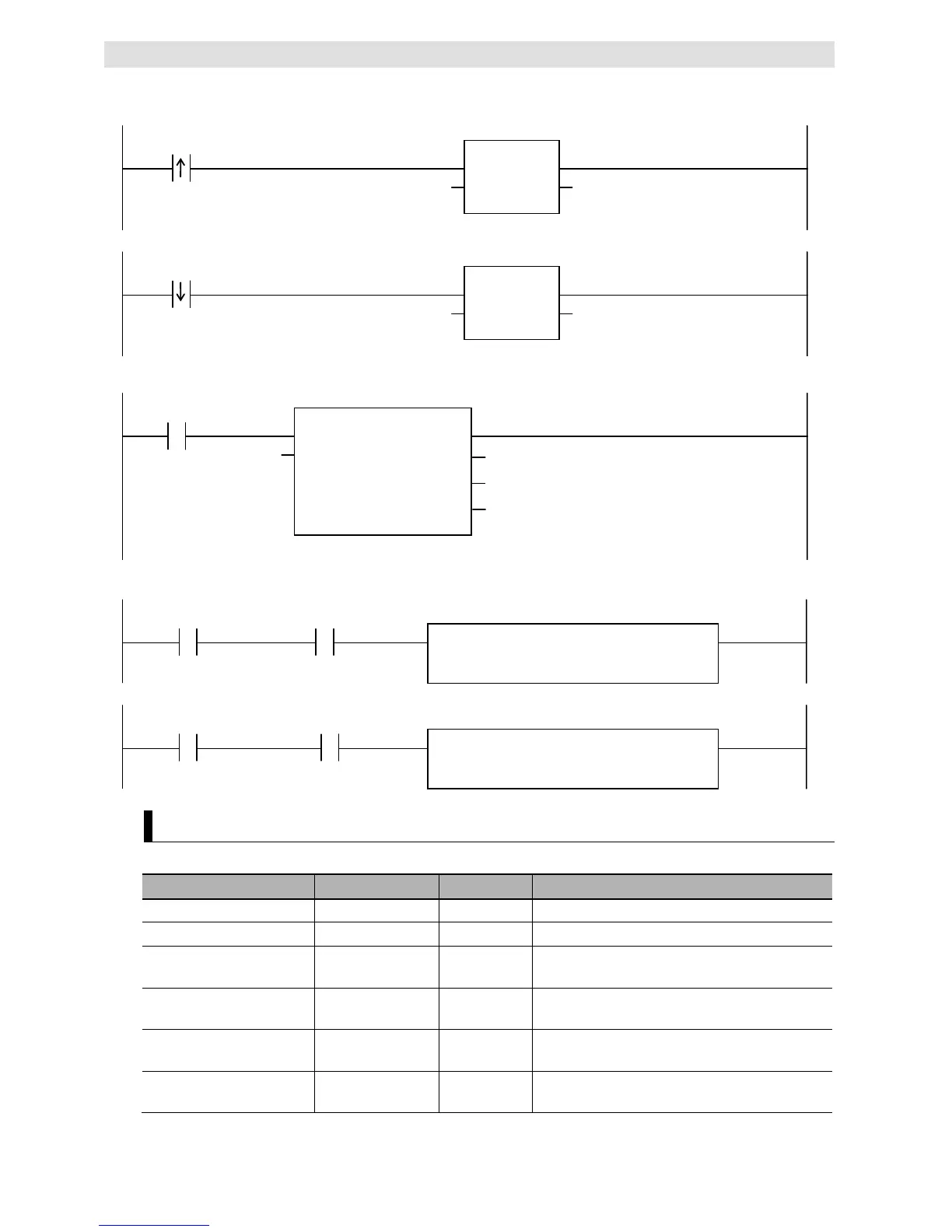

Start recording to the Debug Log.
LogOn
_eDBC_CMD#_DBC_CMD_DEBUGLOG_ON
EN
In
MOVE
ENO
Out
MyCmd
Finish recording to the Debug Log.
LogOn
_eDBC_CMD#_DBC_CMD_DEBUGLOG_
OFF
EN
In
MOVE
ENO
Out
MyCmd
Command to start/finish recording to the Debug Log.
Operating
DB_ControlService_instance
MyCmd
Execute
Cmd
DB_ControlService
Done
Busy
Error
ErrorID
When the instruction is normally completed, change the variable ControlService_OK to TRUE.
Operating
DB_ControlService_instance.Done
// Normal end processing
ControlService_OK := TRUE;
When the instruction is terminated due to an error, change the variable ControlService_OK to FALSE.
Operating
DB_ControlService_instance.Error
// Error handler
ControlService_OK := FALSE;
Structured Text (ST)
 Main Variables
Name
Data type
Initial value
Comment
DB_ControlService_instance
DB_ControlService
---
Instance of DB_ControlService instruction
LogOn
BOOL
FALSE
Variable used as a trigger for controlling the Debug Log
LastTrigger BOOL FALSE Variable to retain the trigger status of the previous
execution
Operating BOOL FALSE The DB_ControlService instruction is executed when
this variable is TRUE.
OperatingStart BOOL FALSE The initialization processing is executed when this
variable is TRUE.
MyCmd _eDBC_CMD --- This variable is assigned to the Cmd input variable to
DB_ControlService_instance.
