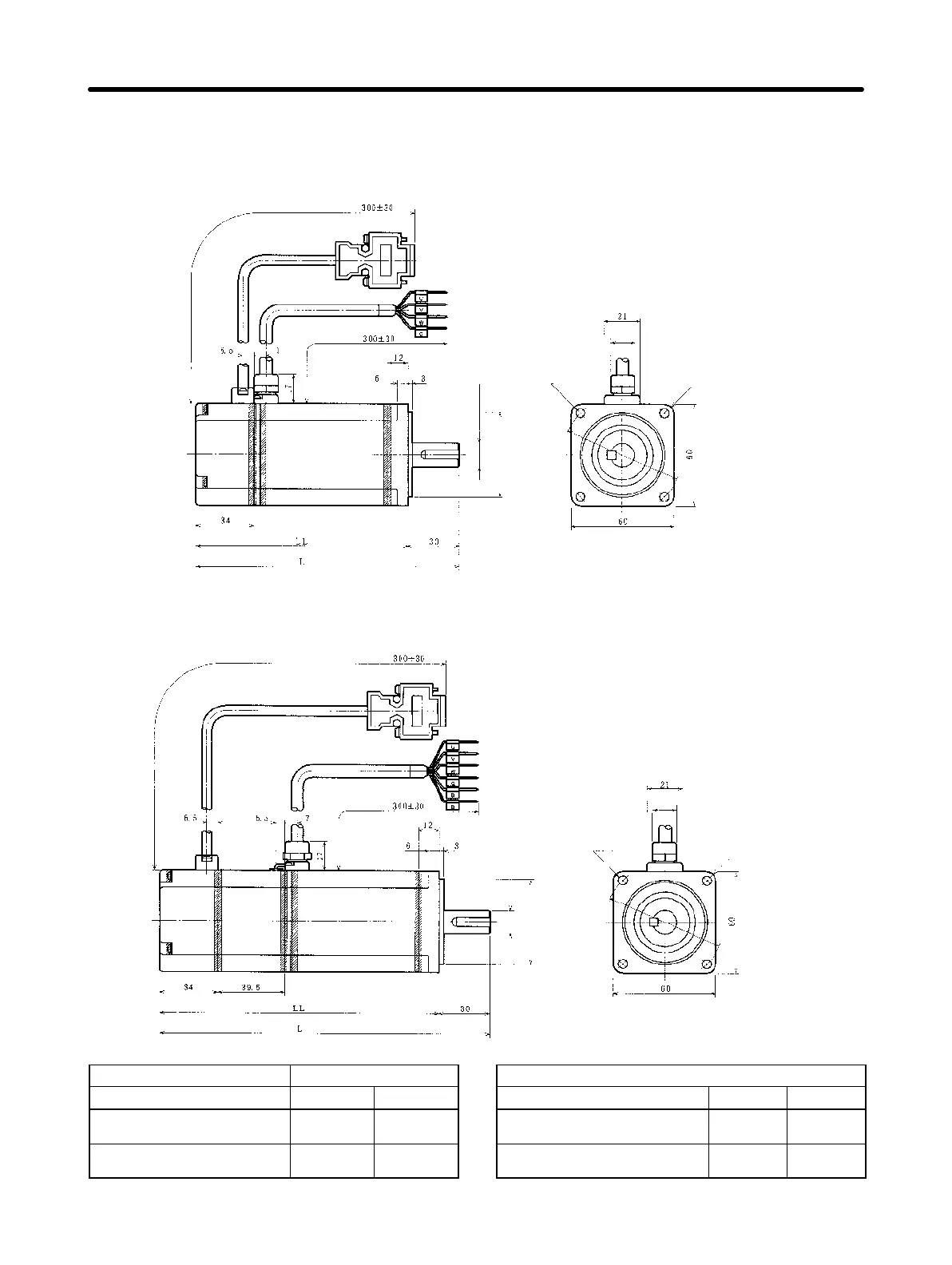

H AC Servomotors Conforming to EC Directives (Contd.)
D 200-W/300-W/400-W Standard Models: R88M-U20030VA-S1, R88M-U40030VA-S1
R88M-U20030WA-S1, R88M-U30030WA-S1
Four, R5.3
Four,
5.5 dia.
70 dia.
14h6 dia.
50h7 dia.
14 dia.
D 200-W/300-W/400-W Models with Brake: R88M-U20030VA-BS1,
R88M-U40030VA-BS1, R88M-U20030WA-BS1, R88M-U30030WA-BS1
Four, R5.3
Four,
5.5 dia.
70 dia.
14h6 dia.
50h7 dia.
14 dia.
Standard Models Standard Models
Model L LL
R88M-U20030VA-S1
R88M-U20030WA-S1
126.5 96.5
R88M-U40030VA-S1
R88M-U30030-WA-S1
154.5 124.5
Models with Brake
Model L LL
R88M-U20030VA-BS1
R88M-U20030WA-BS1
166 136
R88M-U40030VA-BS1
R88M-U30030WA-BS1
194 164
System Design and Installation
Chapter 2
