Omron Powli BU1002SW User Manual

BU1002SW / BU3002SW
13
1
2
3
4
5
6
7
8
9
10
< Example of
connection 1 >
< Example of
connection 2 >
Connected
device (1)
Connected
device (2)
Connected
device (1)
Connected
device (2)
BU1002SW
BU3002SW
To the terminal
block for output
To the terminal
block for output
To power supply
output receptacle
PC
To power supply
output receptacle
PC
●
Group control of power supply output
This function can be used with the UPS monitoring software included with the UPS.
The output receptacles of the BU1002SW are separated into 3 groups: A, B, and C.
1. Power supply output group A
Output begins at the same time as startup.
2. Power supply output group B, C
•
The output start times for power supply output group B and C are independent of power supply out-
put group A, so they can be delayed or set to precede the output stop time.
•
The output start/stop time control funtion is available when using the included “PowerAct Pro” UPS
monitoring software, “UPS Power Manager” or “SNMP/Web card”.
•
Output ON/OFF can be controlled with the included UPS monitoring software while the BU1002SW is
operating.
•
The delay settings and ON/OFF control described here can be performed independently for power
supply output group B and power supply output group C.
This function can be used to set the startup order of servers, peripheral devices, etc.
The output receptacles can also be forcibly turned ON/OFF remotely.
Do not connect devices with rated voltage of 200 to 240 VAC or higher.
●
The rated output voltage of this device is 200 to 240 VAC.
●
Overcurrent may damage the connected devices.
When in use, make sure the output terminal block cover is attached.
Do not turn ON the power switch when it is detached.
●
Voltage is applied to the output terminal block when the power switch is ON, which can result
in electric shock.
Caution

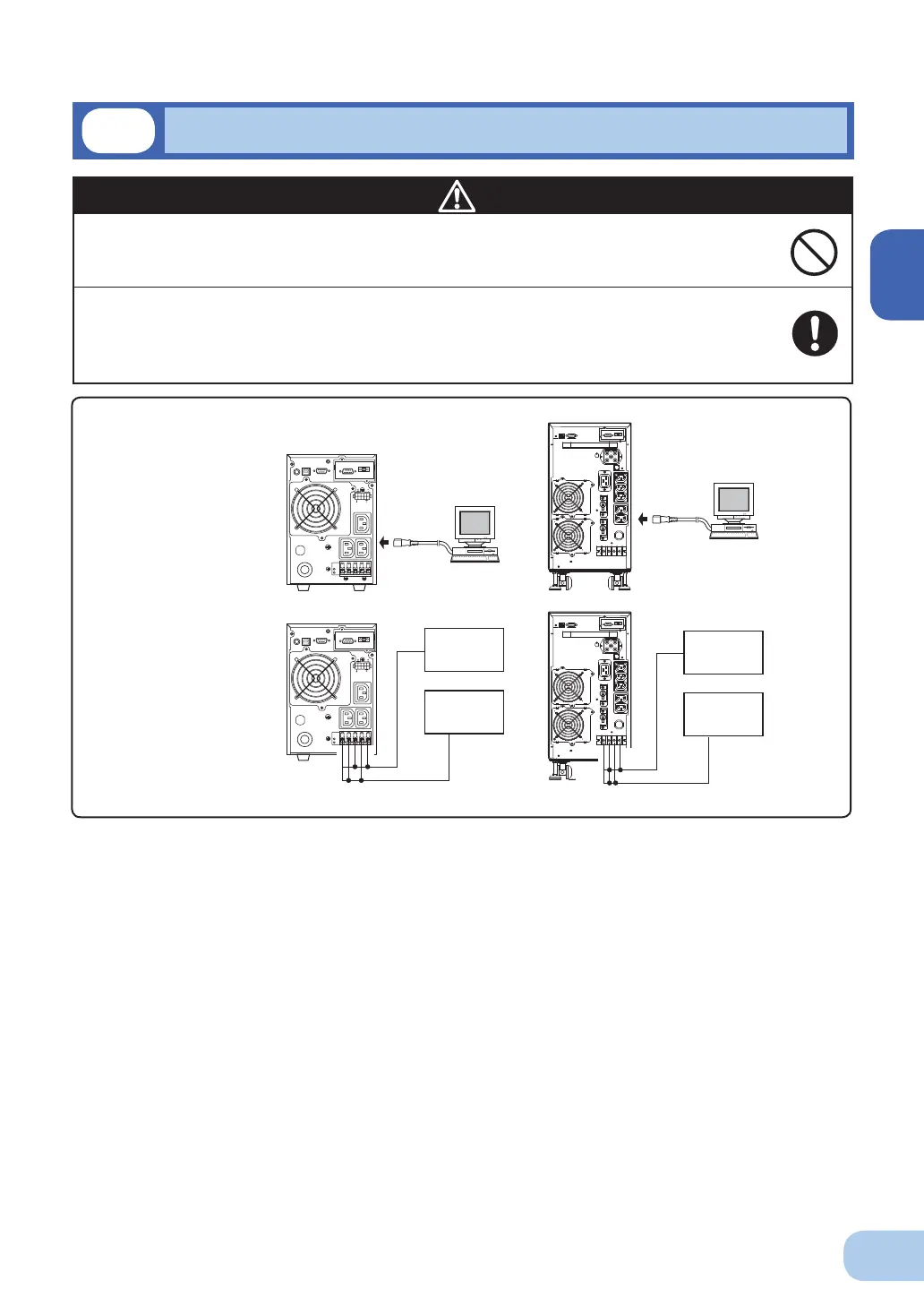

2-3 Connecting the equipment
